Categories | High Efficiency Gas Steam Boiler |
---|---|
Brand Name: | LEWAY BOILER |
Model Number: | WNS |
Certification: | SGS, ISO, OHSAS |
Place of Origin: | Henan, China (Mainland) |
MOQ: | 1 |
Price: | Negotiable |
Supply Ability: | 3000 Ton/Tons per Year |
Delivery Time: | Within 20 working days |
Packaging Details: | PE films packed the gas steam boiler's main-body, spare parts packed with PE film and metal boxes |
Steam Capacity: | 3000KG |
Working Pressure: | 1.25MPa |
Fuel Type: | Natural Gas |
Operation: | ON-OFF Computer Control |
Warranty: | 2 Years |
Product Name: | High Efficiency Gas Steam Boiler |
Structure: | Fire Tube |
Usage: | 194℃ |

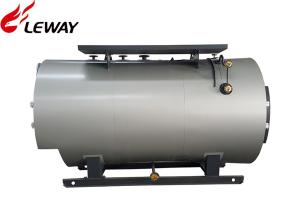

Fire Tube 3T Gas Steam Boiler , High Efficiency Boiler for Industrial
Product features
1. Safe:Boilers are produced strictly accordance with the relevant national standards, pneumatic hydraulic pressure automatic adjustment, automatic ignition, and water shortage or overpressure flame failure protection.
2. Long life:Adopt advanced technology of preheat expansion then welded which prevents corrode tube clearance and enhanced strength.also through hot commissioning before delivery, whether running or operation rate are all very stable.
Steam Boiler Model
Item Unit Model | WNS 2-1.25 -Y(Q) | WNS 3-1.25 -Y(Q) | WNS 4-1.25 -Y(Q) | WNS 6-1.25 -Y(Q) | ||
Rated Capacity | t | 2 | 3 | 4 | 6 | |
Feedwater Temp | ℃ | 20 | ||||
Steam Pressure | MPa | 1.25 | ||||
Steam Temperature | ℃ | 194 | ||||
Heating Surface | ㎡ | 68 | 106.7 | 141.5 | 185.8 | |
Thermal Efficiency | % | 95%-99% | ||||
Gas Consumption | Nm³/h | 144 | 216 | 288 | 432 | |
Power Consumption | KW | 7 | 15 | 15 | 20 | |
Boiler Weight | t | 7.2 | 9.1 | 12.3 | 16.2 | |
Water Volume | m³ | 3.9 | 6.3 | 8.5 | 9 | |
Basement | L | mm | 3100 | 3360 | 3560 | 4100 |
W | mm | 1200 | 1450 | 1500 | 1750 | |
Transport Size | L | mm | 4002 | 4260 | 4794 | 5372 |
W | mm | 1900 | 2130 | 2180 | 2198 | |
H | mm | 2177 | 2425 | 2502 | 2635 |
Why choose our products?
We are a professional boilers factory.
1. Economically priced,exquisitely made. Experienced & responsible QC that you can rely on;
2. Strict quality control system. From the material, welding, to finished boiler shipment, from project , establishment, drawing design, to final audit;
3. Scientific advanced rational and economical structure design;
4. Adequate supply capacity, punctual delivery time;
5. Each boiler system part is from first class brand all over the world or China;
6. Best after-sale service is provided;
7. We are the stable and long term supplier of many top companies in China.
![]() |
