Brand Name: | UPK |
Model Number: | UPKXR003 |
Certification: | NSF |
Place of Origin: | CHINA |
MOQ: | 100 Pcs |
Price: | Negotiation |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 200000 Pcs per month |
Delivery Time: | 20-30days |
Packaging Details: | Plastic sealed bag & Ctn |
Item Name: | PP thread wound filter |
Size: | φ100×L508mm |
Weight: | 900g |
Precision: | 1-100micron |
Packing: | Plastic-sealed bag |
Others: | Designed for India market |
Company Info. |
Upick Filtration |
View Contact Details |
Product List |

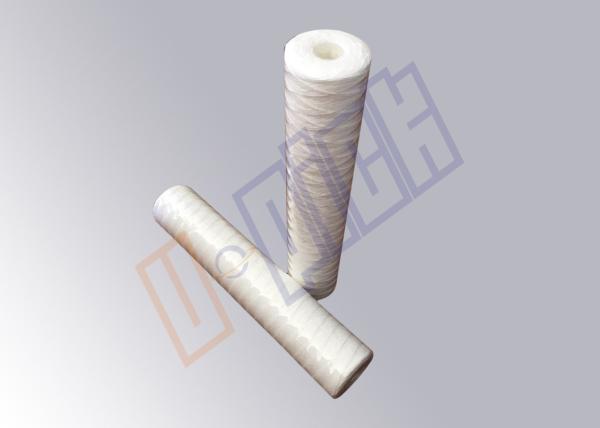

Non-standard ex diameter 100 mm 20 inch String Wound Filter Cartridge
Description
PP string wound filter elements are designed and manufactured by high quality PP thread, with its perfect performance in dirt-holding capacity, high flow rate, wide chemical copatability, it is suitable in prefiltration for many industries.
Specification
Item Name | 5 micron PP string wound filter cartridge | |
Material | Filtering Medial | PP Sring |
End Caps | DOE | |
Inner Core | PP | |
Size | Inlet & Outlet | 28 30 / 100±1mm |
Length | 508mm (20inch) | |
Pressure | Max. Working Pressure | 2.4Mpa at 25℃ |
Working Pressure | 2.0Mpa at 25℃ | |
Differential △ | 0.3Mpa | |
Temprature | Max. Working Temp. | 80℃ |
Working Temp. | 0-50℃ |
Appication
1, Pure water system pre-filtration
2, pharmaceutical and chemical solution
3, Process water filtration
4, Food and beverage industry: wine, beer, mineral water, etc.
Features & Benefits
1. Depth filtration as protecter of fine filters
2, Various adapter for selection: 222, 226, 215, etc.
3, Wide chemical compatibility, PH value range 1-13
4, Non-standard length is acceptable for us, as long as 70 inch
![]() |
