Fully Automatic Wire Clutch Cutting Sealing Machine Cut To Length 10cm-30M Diameter 1MM to 5MM Wire Head Not Scattered

Fully automatic wire rope cutter sealer working vedio: https://vimeo.com/300136060

Details of Machine

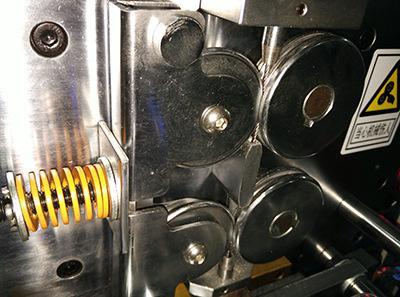

Special design of feeding wheel,more precise feeding size,more wire diameter specifications to adapt to avoid troublesome replacement work.

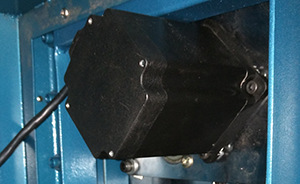

Stepper motor drive,efficient and accurate

The length setting only needs to input numbers.

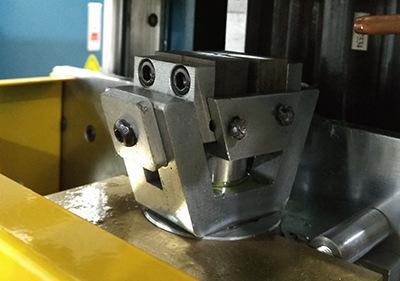

Special chuck,smoother feeding,no sticking line,deviation phenomenon,tighter holding,fast heating,small wear rate of chuck

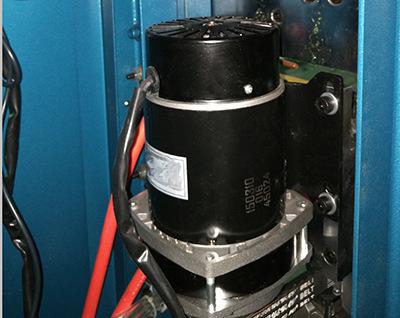

High power tightening drive motor,high precision synchronous belt drive

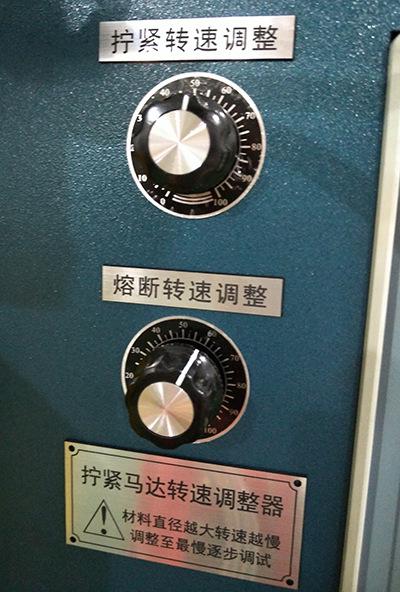

Tighten the speed and segment to ensure that the tip is beautiful and not scattered.

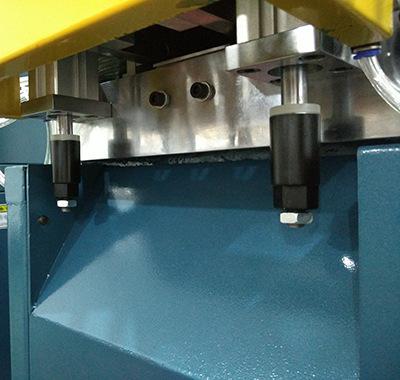

Adjustable head and length adjustment device,easy to adjust,simple and easy to operate.

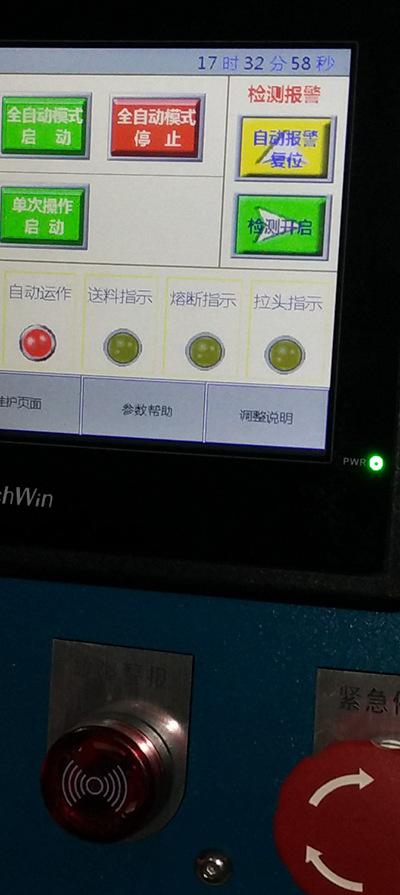

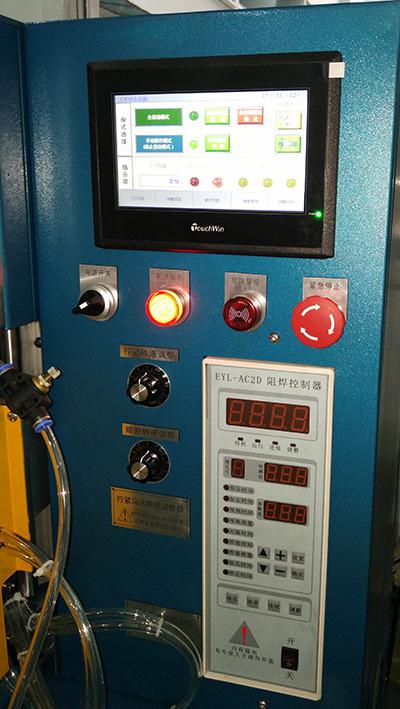

Intelligent control,human-machine interface, microcomputer control

Fault detection,shortage,product stacking can detect alarm.

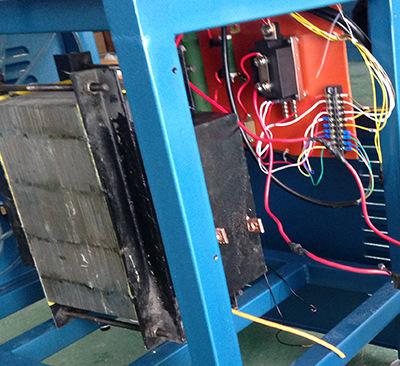

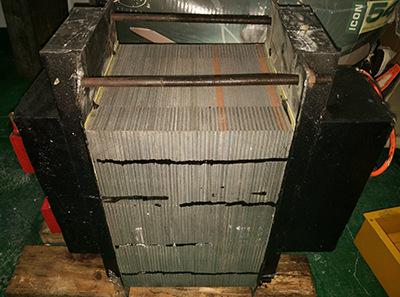

Ultra high power transformer

High power current controlled thyristor

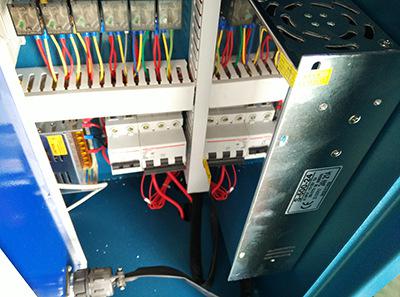

DC controlled high power dual power supply

Main technical requirements and instructions

1. The wire rope of the wire rope having a diameter of 1-5 mm which can be completed by the fuse machine.The equipment adopts the stepper motor (8mm above adopt servo motor) to ensure the fuse length is accurate,the melting section is conical,the largest circular surface diameter of the conical surface is smaller than the diameter of the steel wire,and the melting section is not scattered.it is quick and convenient to change the fuse length by using the touch screen.

2. Size requirements for wire rope and fuse:

A.The fuse material is a wire rope with no cotton inside.
B.The wire rope diameter is required to be 1-5mm (requires replacement of the clamping die).
C.The maximum wire diameter that can be blown is 5mm and the length is not limited. (If larger diameter material processing is required, it needs to be customized separately).

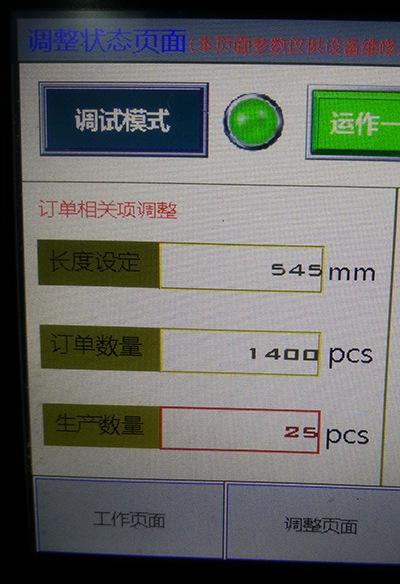

D.The fuse length size can be touched on the touch screen by the "Total Length"display box,pop-up digital setting keyboard and the length can be set arbitrarily.
E.Wire break accuracy is approximately +/-0.060 inch- +/-0.500 inch.

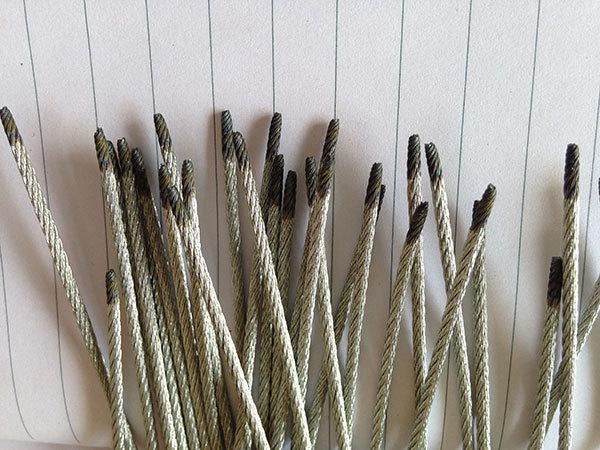

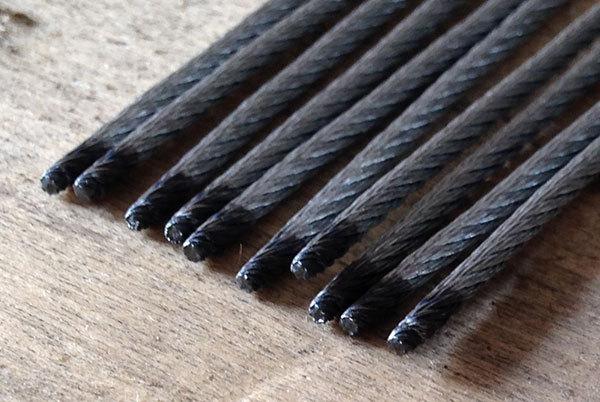

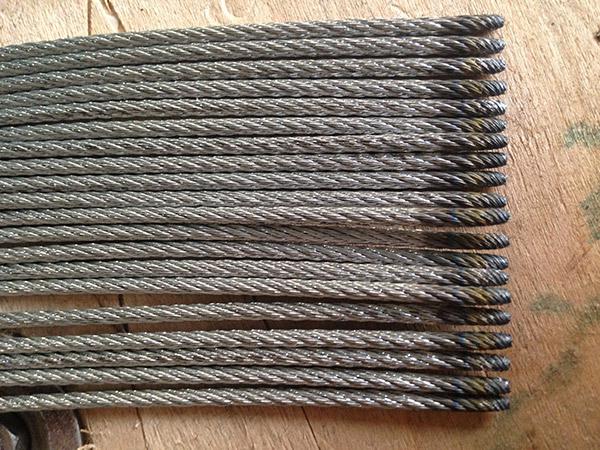

Part of the wire diameters wire ropes blowing effect

1.8mm

2.0mm

2.5mm
