High configuration Stand Mirror screen indoor P3 Led Display Poster Screen 3G/4G remote control
Features:
1.Easy upgrade update iteration
With the increase of market demand for display, only the display module of the product can be replaced without replacing other hardware structures, and product upgrades can be achieved to meet the latest display requirements of the market.
2.Immersive visual experience
The 3mm pixel pitch is a high-density, seamless display that renders content perfectly.
3.Plug - in and wireless connection
There is no need to disconnect the power when replacing the module from the front. Only a magnetic suction tool is required to operate the module.
4.Conetent intelligent monitoring&management
High refresh, segmented grayscale control capabilities. Effectively improve picture quality while providing
intelligent operation monitoring and management functions. Achieving a display module for multi-brightness correction data storage and module information management.
Specification
| Item | Parameters | |
| Module | Module size | 192x192mm |
| Pixel pitch | 3mm | |
| Pixel density | 111,111 pixels/ sqm | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD2121 | |
| Pixel resolution | 64 pixels (W) x 64 (H) pixels | |
| Drive type | Constant drive | |
| Scan mode | 1/ 32 scan | |
| Port type | HUB75-E | |
| Brightness of white balance | ≥1,2 00cd/sqm | |
| Cabinet | Dimension | 640 x 1980mm |
| Pixel per cabinet | 128 x 640pixels | |
| Best viewing distance | 3-100m | |
| Best viewing angles | (H/V): 120°/60° | |
| Temperature | Storage: -35 - +85℃ | |
| Working: -20 - +50℃ | ||
| Operation humidity | 10% - 95% | |
| Thickness | 35mm | |
| Power | Working voltage | AC 220V ±10% |
| Average power consumption | 260W/ sqm | |
| Max power consumption | 850W/ sqm |
Details

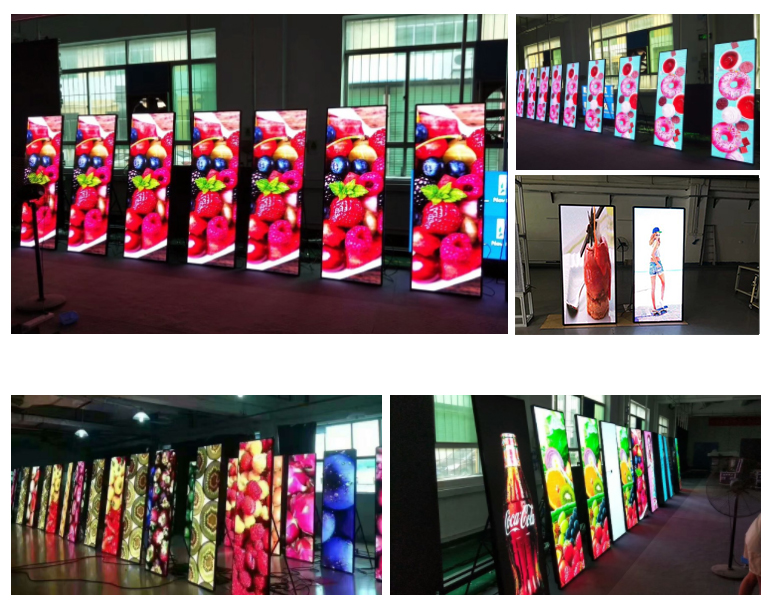

Aging picture
Company profile
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need
Save your time and money with us!
|
