High Reliability Ethernet Network Switch 8 - Port Gigabit SFP 10 / 100 / 1000 Mbps

High Reliability Ethernet Network Switch 8 - Port Gigabit SFP 10 / 100 / 1000 Mbps

High Reliability Ethernet Network Switch 8 - Port Gigabit SFP 10 / 100 / 1000 Mbps
High Reliability Ethernet Network Switch 8 - Port Gigabit SFP 10 / 100 / 1000 Mbps
Categories Ethernet Network Switch
Brand Name: OPTFOCUS
Model Number: OFS-GSF8T2
Place of Origin: Shenzhen China
MOQ: 1
Payment Terms: T/T
Supply Ability: 5000 pieces per one week
Delivery Time: 5-7 working days
Packaging Details: 306mm×152 mm× 55mm
Product Name: 2-port 10/100/1000Mbps + 8-port 1000Mbps SFP Fiber
Product Model: OFS-GSF8T2
Power Supply external PS: Input: AC100 ~ 250V, Output:DC5V 3A.
Environment temperature: 0 ～ +55℃
Max power: 9W
Product Weight:: 0.5 KG
Product size: 190mm×104mm× 29mm
Contact Now
Company Info.
Shenzhen Optfocus Technology Co., Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Reliability Ethernet Network Switch 8 - Port Gigabit SFP 10 / 100 / 1000 Mbps

high reliable Fiber optic switch 2 port 10 / 100 / 1000M RJ45 to 8-port gigabit SFP


Product Description

Technical itemsDescription
Product Name2-port 10/100/1000Mbps + 8-port 1000Mbps SFP Fiber
Product ModelOFS-GSF8T2
Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber MediaMulti-mode:550M- 2KM
Single-mode: 20/40/60/80/100KM
Performance SpecificationBandwidth: 20Gbps
Packet Forwarding Rate:1488000pps/port
MAC Address Table:8K
Forwarding ModeStore-and-Forward
LED IndicatorsPower: PWR;FX Link/Act(1-8);TP 1000(1-2);
TP Link/Act(1-2)
Power SupplyAdapter:
Input: AC100 ~ 250V, Output:DC5V 3A.
Max power9W
Environment temperature0 ～ +55℃
Storage temperature-20 ～ +70℃
Humidity5% ～ 90%
InstallationDIN-Rail or Wall mounts,Optional,Default device is not
Packing List1× Switch
1×User Manual/Certificate of quality/Warranty card
1×power adapter
MTBF100,000 hours
Weight & SizeProduct Weight: 0.5 KG
Packing weight: 1.1 KG

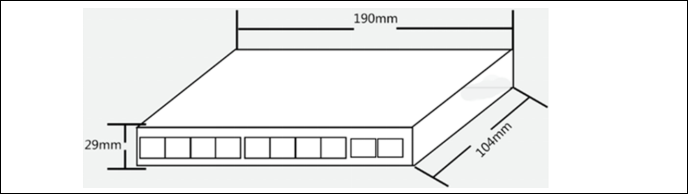

Product size (L×W×H): 190mm×104mm× 29mm

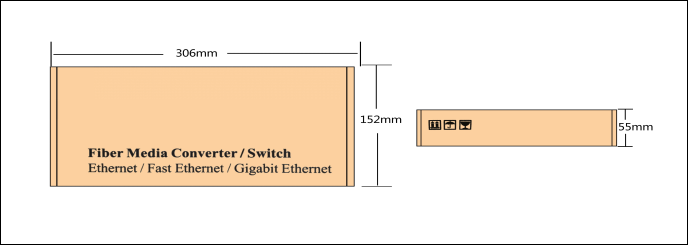

Packing size(L×W×H): 306mm×152 mm× 55mm
Warranty1-years

Feature:

  • 2 Port 10/100/1000Mbps with Auto Uplink™ , 8 port 1000Mbps SFP Slot
  • Automatic MAC address learning and aging
  • 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
  • LED indicators for monitoring power/link/activity
  • Supports10/100/1000Mbps-Full/Half-duplex
  • Supports Wall-mount and DIN-Rail installation ,Optional.
  • Supports Broadcast Storm Control
  • Excellent heat elimination without cooling fan.
  • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
  • Harsh environment or higher requirement
  • -10℃-55℃operating temperature range.

Product Exhibition


Most popular & high quality 2ports 10/100/1000M + 8ports 1000M SFP Fiber Switch







Application
