Speed Rock Drilling Rod Thread T38 MF Rod Length 10 FT for Drifting and Tunneling

Categories Threaded Drill Rod
Brand Name: MIROC
Model Number: Thread Drill Rod
Place of Origin: China
MOQ: 10 Pieces
Price: negotiation
Supply Ability: 20000 pieces per month
Delivery Time: 25 days
Packaging Details: Carton Box or Wooden Box
Name: MF-ROD
Thread: R32/R38/T38/T45/T51
Length: 3ft to 20 fit
Dia: 22mm-52mm
Material: steel
Processed: CNC machinery and heat treatment
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Speed Rock Drilling Rod Thread T38 MF Rod Length 10 FT for Drifting and Tunneling

Speed Rock Drilling Rod Thread T38 MF Rod Length 10 FT for Drifting and Tunneling


Basic Information

Product NameThread Drill Rod
ThreadT38
Diameter39mm
Length915mm- 6095mm ( 3 ft to 20 ft)
Drill Rod TypeMF-Rod
Order InformationThread + Length + Diameter
MOQ10 Pieces
MaterialHigh strength alloy steel bar
ColorBlack or based on customer requirements.

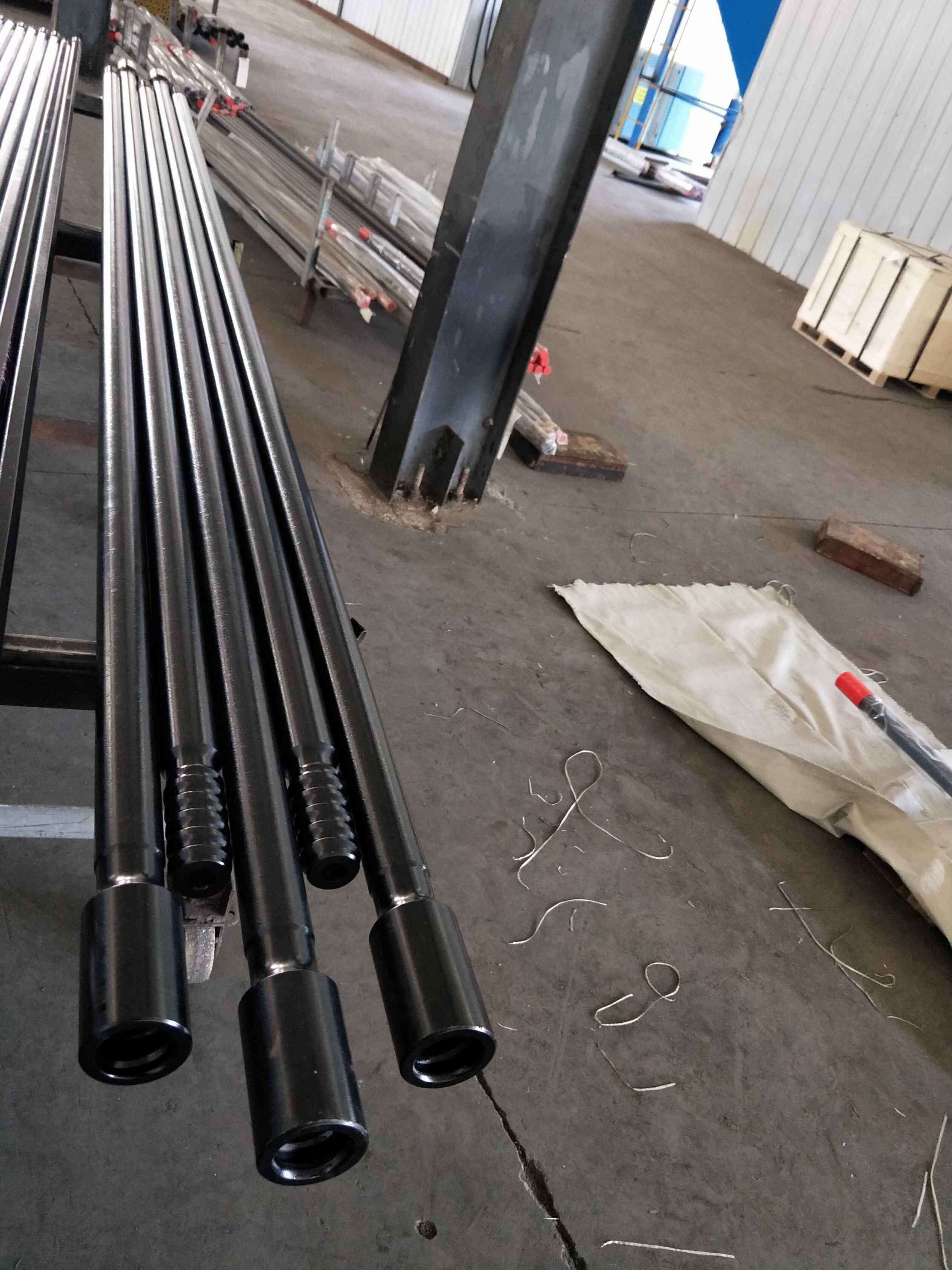

Drill rod using thread system.With wrench flats to aid in coupling/decoupling of rods for extension drilling.


For speed rod, it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system.


Applications of Rock Drill Rod


• Underground mining and surface mining
• Drifting, bench and production drilling

• Granite, basalt, limestone rock etc.


Competitive Advantage

• High grade raw material
• Manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



T38 Drill Rod Specification


Drill rodLengthDiameterWeightPart Number
mmfootmminchkg

T38 Extension rod,

T38-Round39-T38

12204391 1/210.24148300770
Flushing hole 14.5mm15255391 1/212.84148300771
Wrench flat 32mm18306391 1/215.34148300772
 24358391 1/220.44148300773
305010391 1/225.54148300774
366012391 1/230.94148300775
396513391 1/233.24148300776
427014391 1/235.74148300777
488016391 1/241.04148300778
553018 1/7391 1/246.34148300779
609520391 1/250.94148300780
T38 MF-rod, T38-Round39-T389153391 1/210.74148300781
Flushing hole 14.5mm12204391 1/213.34148300782
 15255391 1/215.84148300783
18306391 1/218.34148300784
305010391 1/228.54148300785
366012391 1/233.64148300786
427014391 1/238.74148300787
488016391 1/243.74148300788
553018 1/7391 1/249.24148300789
609520391 1/253.94148300790

T38 Hex extension rod,

T38-Hex32-R38

12204321 1/48.64148300791
Flushing hole 9.6mm18306321 1/412.64148300792
 24358321 1/416.64148300793
305010321 1/420.84148300794
366012321 1/424.94148300795

T38 Guide speedrod,

T38-Round46-T38

18306461 4/523.54148300796
Flushing hole 17mm305010461 4/537.24148300797
 366012461 4/544.04148300798
427014461 4/550.94148300799
488016461 4/557.74148300800
553018 1/7461 4/565.04148300801
609520461 4/571.34148300802


We can design and manufacture the personalized products to meet your specical apllication.


Delivery time and Package

Delivery time: around 15-20days

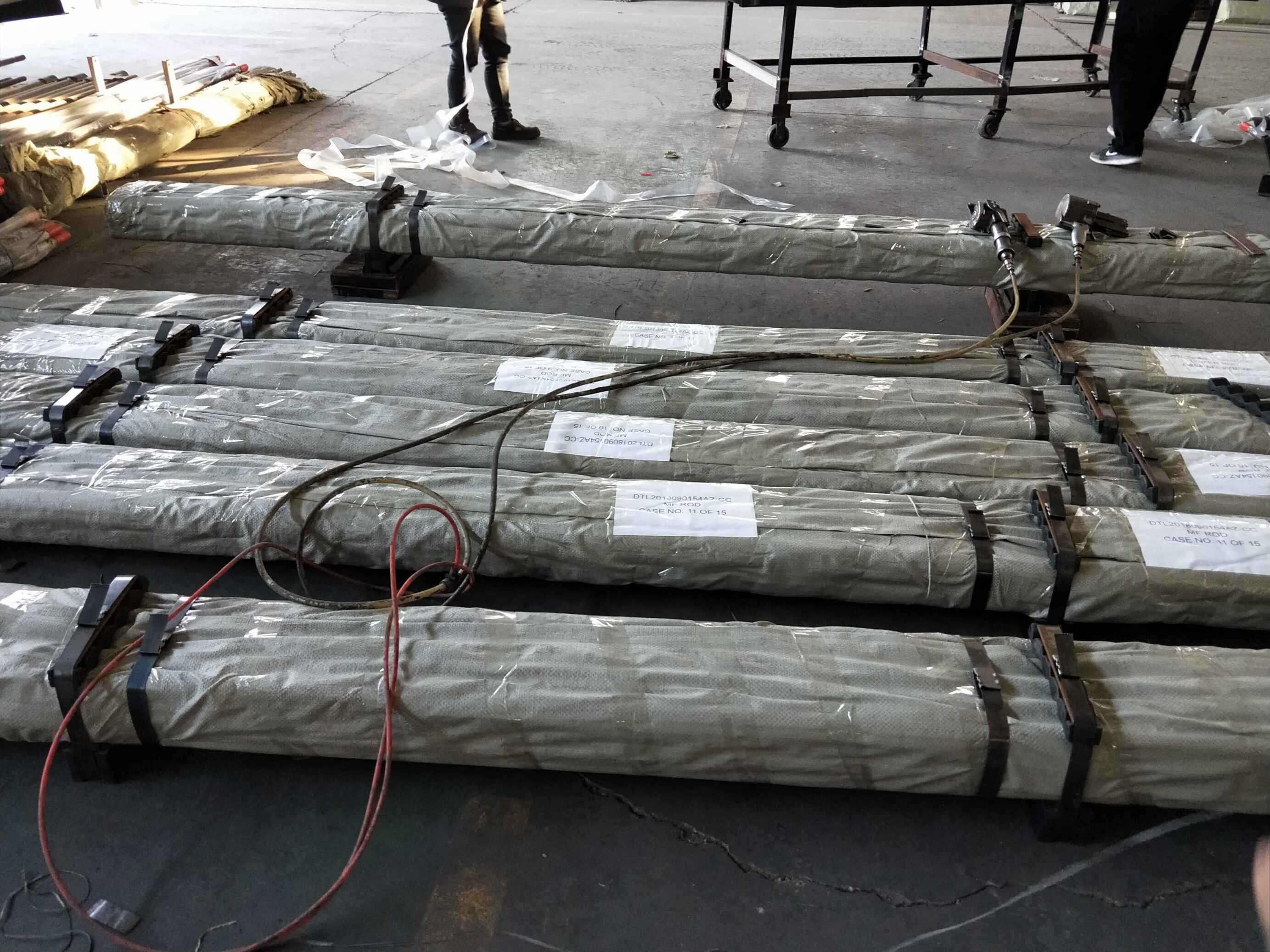

Package: steel bundle / Based on customers requirements
