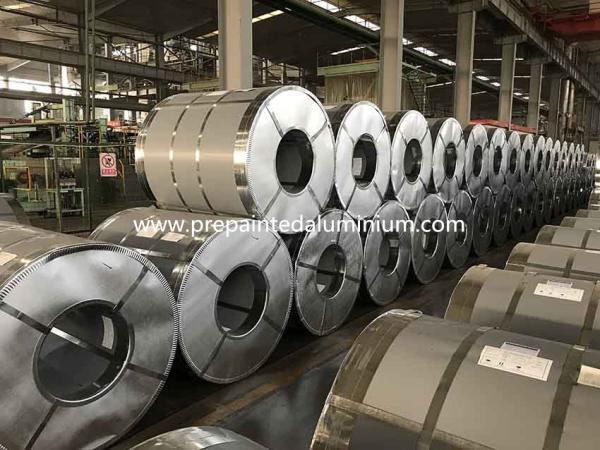

Resin - Coating Aluminum Zinc Alloy Coated Steel , Galvalume Steel Sheet For Automobile

■Standard : ASTM A792 / JIS G3321 / GB/T14978-2008 / EN10326-2004

■Grade : SGLCC / SGLCD / SGLC400~570 / DC51D+AZ~DC54D+AZ

■Thickness : 0.15-2.5 mm

■Width : 600 - 1250 mm ( Usually 914 mm / 1219 mm / 1220 mm / 1250 mm)

■Base Metal : Cold - Rolled Steel

■Al-Zinc Coating : 50 - 150 g / sqm

■Coil Internal Diameter : 508 mm / 610 mm

■Surface Treatment : Chromate Passivated , Non - Chromate Passivated , Oiled , Anti - finger Print And Etc

■tolerance thickness : + / - 0.05 mm , tolerance width : + 5 / - 2 mm , total quantity : + / - 10 % , alu - zinc coating : + / - 10 %

■Packing Condition : Seaworthy

Characteristics :

GL are 3 ~ 6 times more corrosion - resistant compared to GI , but has a similar level of processability and weldability and can replace GI, and in particular is most suitable when replacing GI that require thick galvanized layers and high corrosion resistance .

Only galvanized steel sheet that is used for roofing and walls without painting because of its unique silver spangles and beautiful appearance and high - corrosion resistance, and is used as a cool roofing material because of its excellent heat reflection qualities .

Can replace aluminum gilded steel sheets because for certain purposes of its electrical conductivity and its heat-resistance qualities even at high temperatures that do not exceed 315 ℃ .

Has greater surface hardness than GIs , and is much more wear - resistant .

Corrosion resistance increased more with resin-coating treatment , which enables roll forming or press forming without the spraying of processed oils .

Product Application :

Infrastructure : Roofing / External Siding / Garage / Shutter
Household Appliances : Oven / Air - Conditioning Ventilation System / Solar Water Heater / Electronics

Automobile : Mobile Muffler / Vent Pipe / Catalysis Converter Heater Shield / Bottom Accessories
Industrial Instrument : Electric Control Cabinet / Industrial Freezer Chest

Chemical Requirements :
