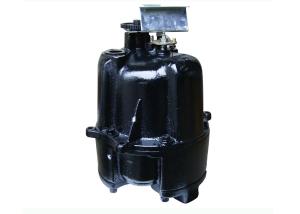

HIGH PRECISION CAST IRON FLOW METER OR CALIBRATION UNIT INSTALLED ON FUEL DISPENSER

Categories	CALIBRATION UNITS
Brand Name:	YD
Model Number:	YDFM-2
Place of Origin:	CHINA
MOQ:	10pcs
Price:	USD 149~ 199
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	3000PCS/MONTH
Delivery Time:	3~ 30 DAYS ( DEPENDS ON QTY )
Packaging Details:	1PCS/CTN, PKGS DIM. 310x310x390MM,EST.G.W. 19KG/PKG
Color:	BLACK
Mat'l:	CAST IRON

Contact Now

Add to Cart

Company Info.

ANHUI YUEDING MACHINE CO.,LTD.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

YDFM-2 can be widely used on different gasoline dispensers.

This product has advantages as long using term, high precision, firm structure etc.

It can be the best choice of gasoline dispenser components.

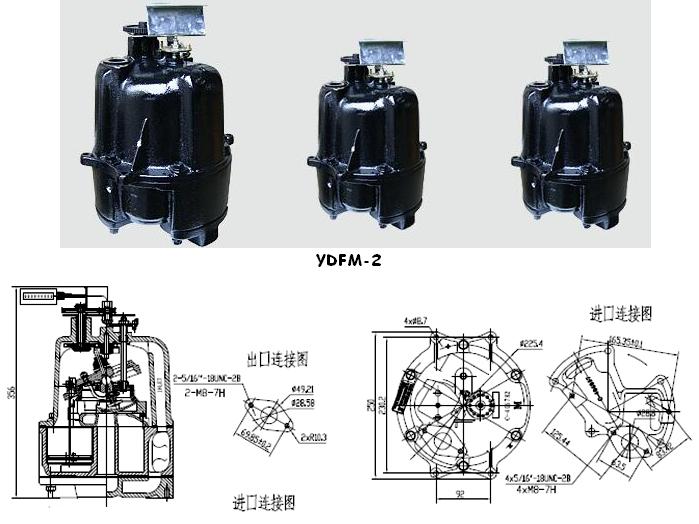

Technical performance:
Packing size	310mmx310mmx390mm
Discharge rate of each revolution	0.21L
Rotary direction of axial	CW
Level	250mm
Vertical	336mm
Flow range	5～140L/min
Working pressure	0.12MPa-0.35MPa
Accuracy	±0.2%(5L/min-100L/min)
Repeat error	≤0.1%
Working life	≥10000000L
