High Speed Coating Butyl Extruder Machine Spacer Frame For IGU Processing

Categories Double Glazing Glass Machine
Brand Name: LIJIANG GLASS
Model Number: LJTB03
Certification: CE
Place of Origin: JINAN,CHINA
MOQ: One set
Price: Negotiable
Supply Ability: 10 sets one week
Delivery Time: 10days
Packaging Details: Wooden box
Name: Automatic butyl extruder machine
Squeeze pressure: 10-18MPa
Temperature: 110~140℃
Aluminum spacer width: 4-30mm
Speed: 0-27m/min
Diameter of butyl cylinder: 200mm
Application: Butyl coating machine
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Speed Coating Butyl Extruder Machine Spacer Frame For IGU Processing

Automatic Double Glazing Glass Machine Butyl Extruder Coating Equipment


Application :


LJTB03 automatic butyl extruder machine is used to coating sealants on spacer frame for IGU processing with a high speed. Sealant coating device is the important machine for making double galzing glass.


Technical data


Squeeze pressure10-18MPa
Temperature110~140℃
Aluminum spacer width4-30mm
Speed0-40m/min
Diameter of butyl cylinder200mm
Air supply0.4m³/min
Air pressure≥0.6MPa
Total power380V, 5KW ,50HZ
Dimension2600×680×1100mm(L×W×H)
weight650kg

Main feature


1.Loading capacity up to 14KG, saving time for feeding glue

2.Adopt five steps to control convey

3.PLC control system, touch screen interface

4.Frequency control system

5.Arc frame coating structure

6.Imported pneumatic and hydraulic supercharging system

7.Automatic centering and clamping structure

8.Preheating function,glue cylinder limit function,alarm system

9.Covey and gluing mechanism adopts the latest design

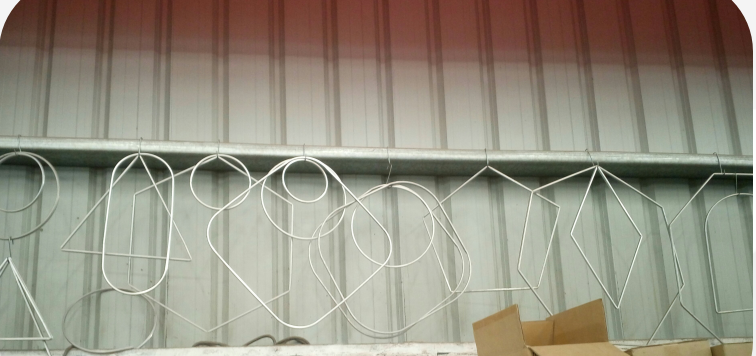

This Butyl extruder machine could coat for so many kinds of spacer frame, keep smooth.
