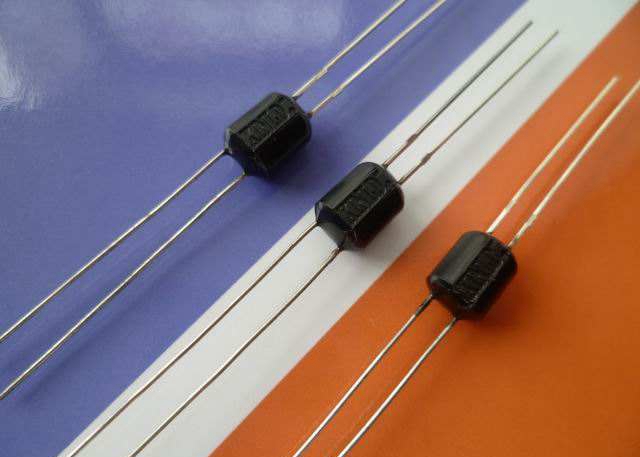

4 Pins 20mA Axial Leaded LDR Output Analog Linear Optocoupler WDYJ-65 With Isolation Voltage 2KV For Audio Amplifier

4 Pins 20mA Axial Leaded LDR Output Analog Linear Optocoupler WDYJ-65 With Isolation Voltage 2KV For Audio Amplifier


Applications

Audio amplifier protection and control
Audio volume limiting
Electric shielded isolation coupling
Communication transmission and Automatic control
Lights adjustment and Motor speed control
Industrial, Motor Drive & Control

______________________________________________________________________________ Download________

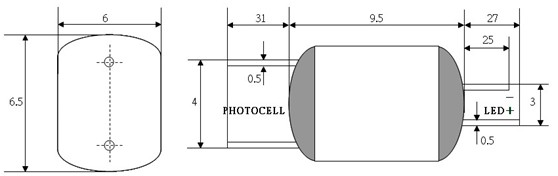

Structure Diagram:(unit:mm)




ABSOLUTE MAXIMUM RATINGS @ 25°C

ELECTRO-OPTICAL CHARCTERISTICS @ 25°C

LED

CELL

COUPLED

^※1 measured after a dark history of one week
^※2 10 sec after I_F=0.5V dc on cell

Description

The WDYJ-65 is a 1-channel Axial Vactrol features a very low "on" resistance, fast response time, with a smaller temperature coefficient.

Linear Optocoupler is an optoelectronic devices , to control resistance change by input current change, made of CdS and LED semiconductors after rigorous selection ,aging and testing.

Features

High Input-to-output Voltage Isolation
True Resistance Element Output
Suitable for AC or DC Use
Low Drive Current
Low On Resistance, High Off Resistance
Complete Solid-state Construction

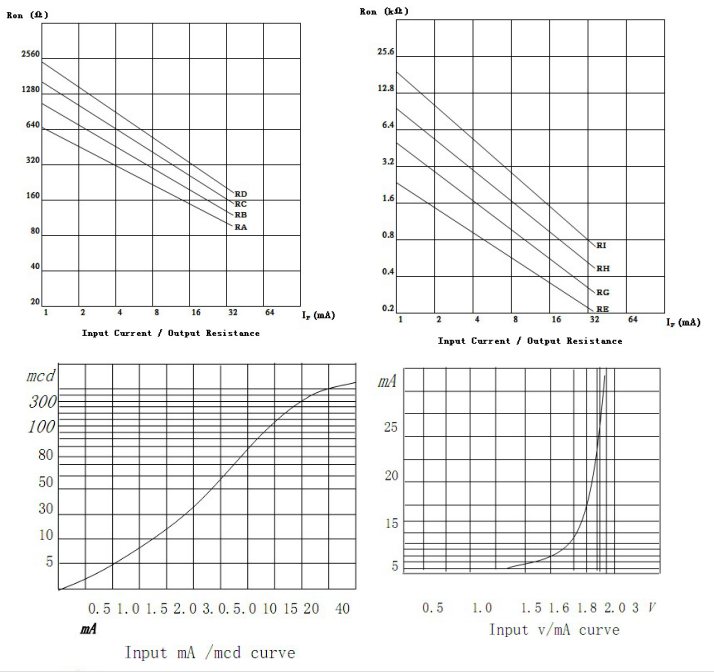

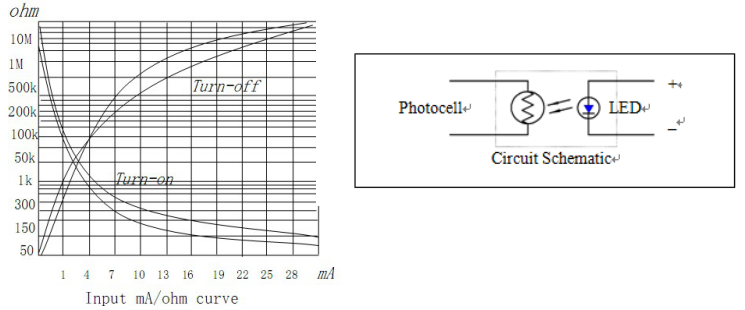

Main characteristic curve

Attention : Soldering pin recommended away from the bottom of optocoupler, soldering time should be as short as possible.
