| Categories | Yarn Break Sensor |
|---|---|
| Brand Name: | KJTDQ |
| Model Number: | KJT-DU3B-ZPC/ZNC |
| Certification: | CE , RoHS |
| Place of Origin: | Jiangsu,China |
| MOQ: | 5pcs |
| Price: | USD12.8-16.9/pc |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/Month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | carton package |
| Material: | Aluminum housing |
| Output: | NPN PNP |
| Voltage: | 24Vdc |
| Application: | Textile machinery parts |
| Condition: | new |
| HS Code: | 8448399000 |
| Company Info. |
| View Contact Details |
| Product List |

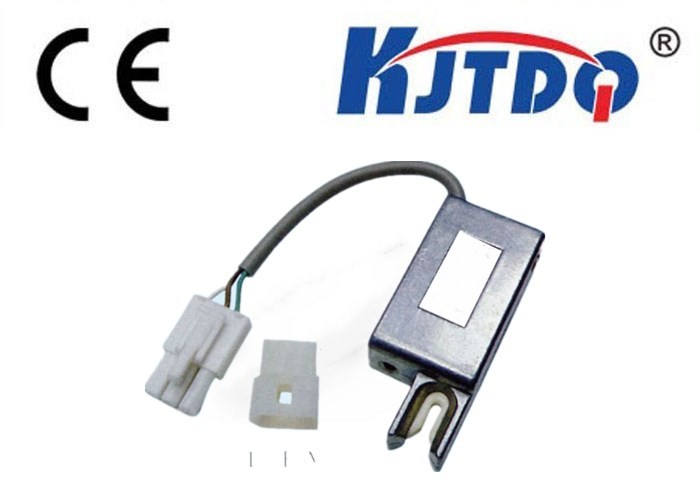

NPN PNP NC Output Yarn Break Capacitive Sensor Used on Textile Machinery
Specification :
| Model number | KJT-DU3B ZNB | NC | NPN 3 wires |
| Model number | KJT-DU3B ZPB | NC | PNP 3 wires |
| Housing material | Aluminum |
| Sensing method | Capacitive |
| Ambient tempreature | -20°C~80°C |
| Control output | 200mA |
| Protection degree | IP67 |
| 35.5mm(holeφ4mm) |
| Type | Wire device |
| Opreating voltage | 24V DC+/-4 |
| Objects can be detected | Yarn, cotton thread, silk thread |
| Feeling silk speed | 50m/min-3000m/min |
Features:
1)Standard 24-volt DC supply (working normally within 18-30 volt
range);
2)Output form:NPN/PNP;
3)Built-in direct control signal system;
4)Provide visual alarm function (led flashing signal);
Details:
Yarn break capacitive sensor, very versatile, used in winding, doubling, texturing, etc. process.
MAIN FUNCTION: Control the linear motion of any kind of textile yarns.
When the yarn breaks or when scrolling stops, MCL1 will inform the user (flashing LED) that a position is defective. It can also activate a yarn cutter or stop the position giving a LOW / HIGH signal to an automate. Any kind of material able to keep electrostatic charge can be checked by MCL1. A specific version has been developed for Elasthane yarns (low speed).
Main Function
Control the linear motion of any kind of textile yarns. When the yarn breaks or when scrolling stops, MCL1 will inform the user (flashing LED) that a position is defective. It can also activate a yarn cutter or stop the position giving a LOW / HIGH signal to an automate. Any kind of material able to keep electrostatic charge can be checked by MCL1. A specific version has been developed for Elasthane yarns (low speed).(Capacitive yarn sensor can detect the working of various yarns on textile machines. If the yarn breaks or stops, yarn sensor will inform the user via a flashing LED that a position is defective.)
Working Principle
Yarn breaking sensor probe will check tension variations produced by electrical charges of a moving yarn.
|
