| Categories | Scissor Car Lift |
|---|---|
| Brand Name: | SDLIFT Or OEM |
| Model Number: | SJG5-3 |
| Certification: | CE ISO SGS |
| Place of Origin: | China |
| MOQ: | 1 UNIT |
| Price: | USD6700- USD9800 / UNIT |
| Payment Terms: | T/T |
| Supply Ability: | 1200units per year |
| Delivery Time: | 30 days |
| Packaging Details: | Iron case or plywood case package |
| Usage: | Hydraulic Car Elevator Lift For Parking |
| Type: | 4 hydraulic cylinders hydraulic car lift |
| Material: | High Strength Manganese Steel |
| Safety device: | explosion proof lock valve |
| Certificate: | CE ISO9001 |
| Work Platform: | Anti skid steel plate |
| Company Info. |
| Shandong Lift Machinery Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Hydraulic Scissor Car Parking Lift Hydraulic Car Elevator Lift with CE
1) Load capacity: 5000kgs
2) Platform size: 5.8m x 2.8m
3) Lift height: 3m
5) Power: 380v/50hz/3ph/5.5kw
6) Control system: 1 control box, 1 control panel, 2 remotes
7) Control buttons: up, down, stop, emergency
8) Safety device: explosion-proof lock valve
9) Standard: CE, ISO9001
- The Hydraulic Car Elevator Lift can can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, or to second floor. Steady working and easy operation, it can be installed underground or in basement ---Invisible Parking Solution for Private House!
| Model | load capacity | Platform size | Lift height | Pit depth | Power |
| SJG2.5-3 | 2.5T | 5.2m×2.6m | 3m | 750mm | 220v, 240v,380v or 400v |
| SJG2-6.5 | 2T | 5.2m×2.8m | 6.5m | 800mm | 220v, 240v,380v or 400v |
| SJG2.5-3.5 | 2.5T | 5.2m×2.6m | 3.5m | 800mm | 220v, 240v,380v or 400v |
| SJG2.5-5 | 2.5T | 5.6m×3m | 5m | 800mm | 220v, 240v,380v or 400v |
| SJG3-2.5 | 3T | 5m×2.3m | 2.5m | 750mm | 220v, 240v,380v or 400v |
| SJG3-3 | 3T | 5.2m×2.6m | 3m | 800mm | 220v, 240v,380v or 400v |
| SJG3-3.5 | 3T | 5.6m×2.7m | 3.5m | 800mm | 220v, 240v,380v or 400v |
| SJG5-10 | 5T | 4.5m×2.5m | 10m | 1150mm | 220v, 240v,380v or 400v |
| SJG8-2.5 | 8T | 6.5m×4.5m | 2.5m | 850mm | 220v, 240v,380v or 400v |
| SJG12-3 | 12T | 5.5m×2.8m | 3m | 950mm | 220v, 240v,380v or 400v |
| SJG15-4.5 | 15T | 8m×2.2m | 4.5m | 1150mm | 220v, 240v,380v or 400v |
| SJG20-5 | 20T | 6m×3m | 5m | 1200mm | 220v, 240v,380v or 400v |
Configuration:
1) Platform Material: rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw or as your requests.
4) High Precision Hydraulic Cylinder.
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform

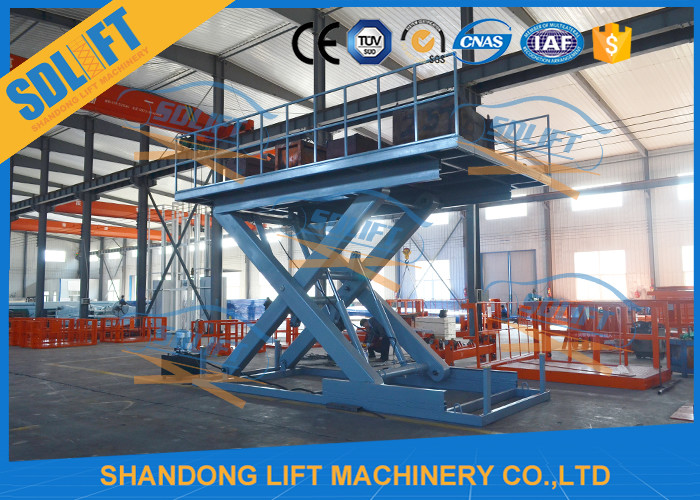

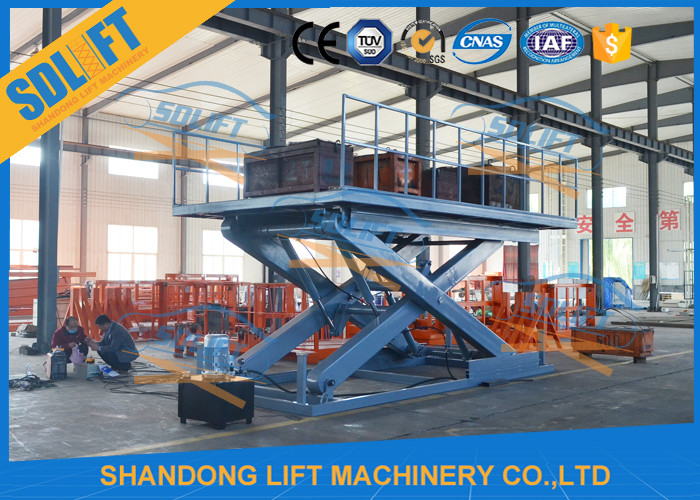

Product pics
Installation:
CE Certificate:
|
