| Categories | Illuminated Rocker Switch |
|---|---|
| Brand Name: | Guangzhou beiwen electric appliance technology co. LTD |
| Model Number: | BR23 |
| Certification: | CQC，TUV,CB,ROHS.US.CE |
| Place of Origin: | Guangzhou, China, |
| MOQ: | 10 Pieces |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000+30000+7 |
| Delivery Time: | 5-8word dasy |
| Packaging Details: | Carton packing. Packing according to the size of the goods or the customer's requirement. |
| Tempjerature Limits: | 120°C Max |
| Contact Resistance: | ＜50mΩ Max |
| Insulation Resistance: | ＞100MΩ Mix |
| Withstand Voltage: | 2500VAC |
| Electrical life: | ＞10000 hours |
| The shell material: | nylon/PC |
| Rated Load: | 16[4]A 250VAC |

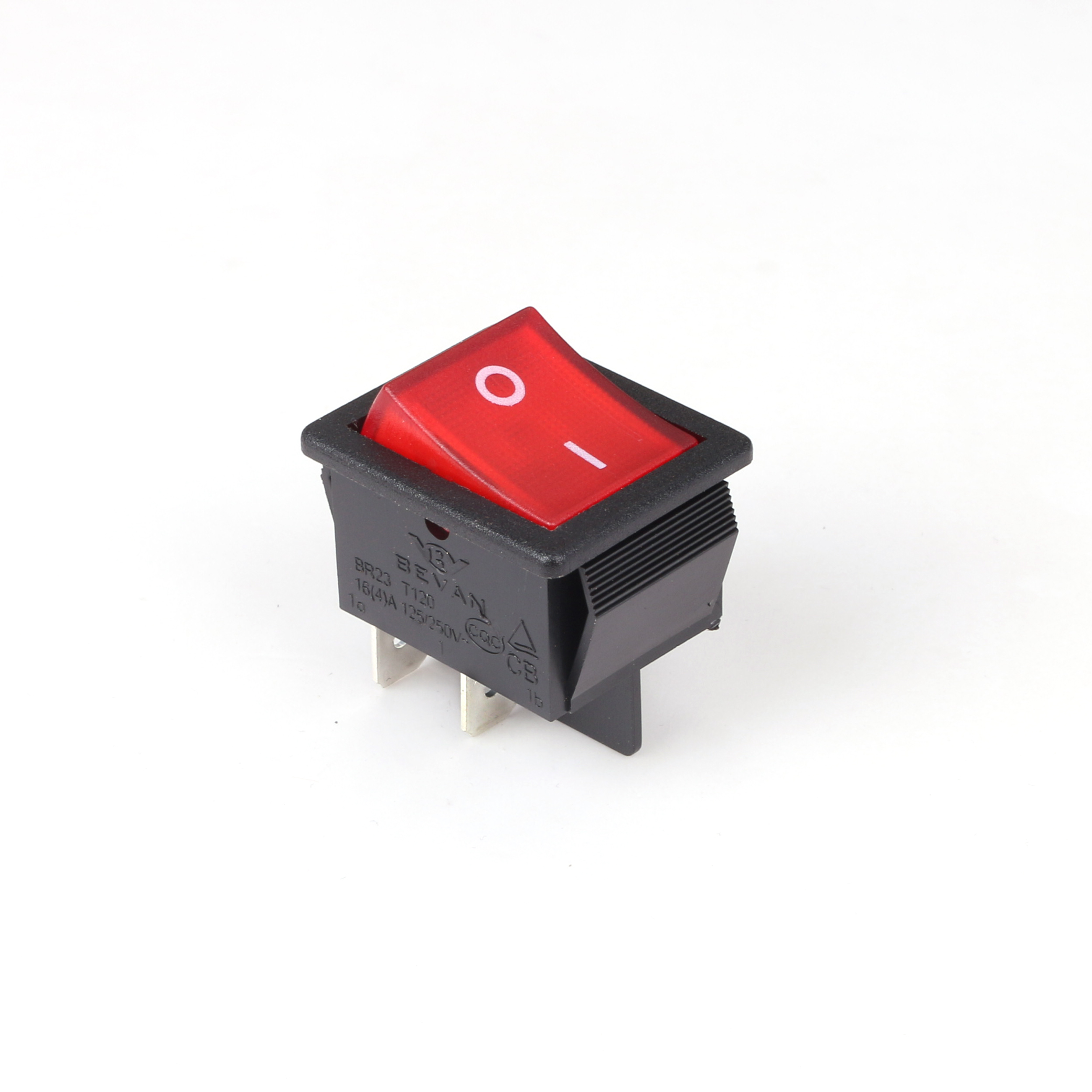

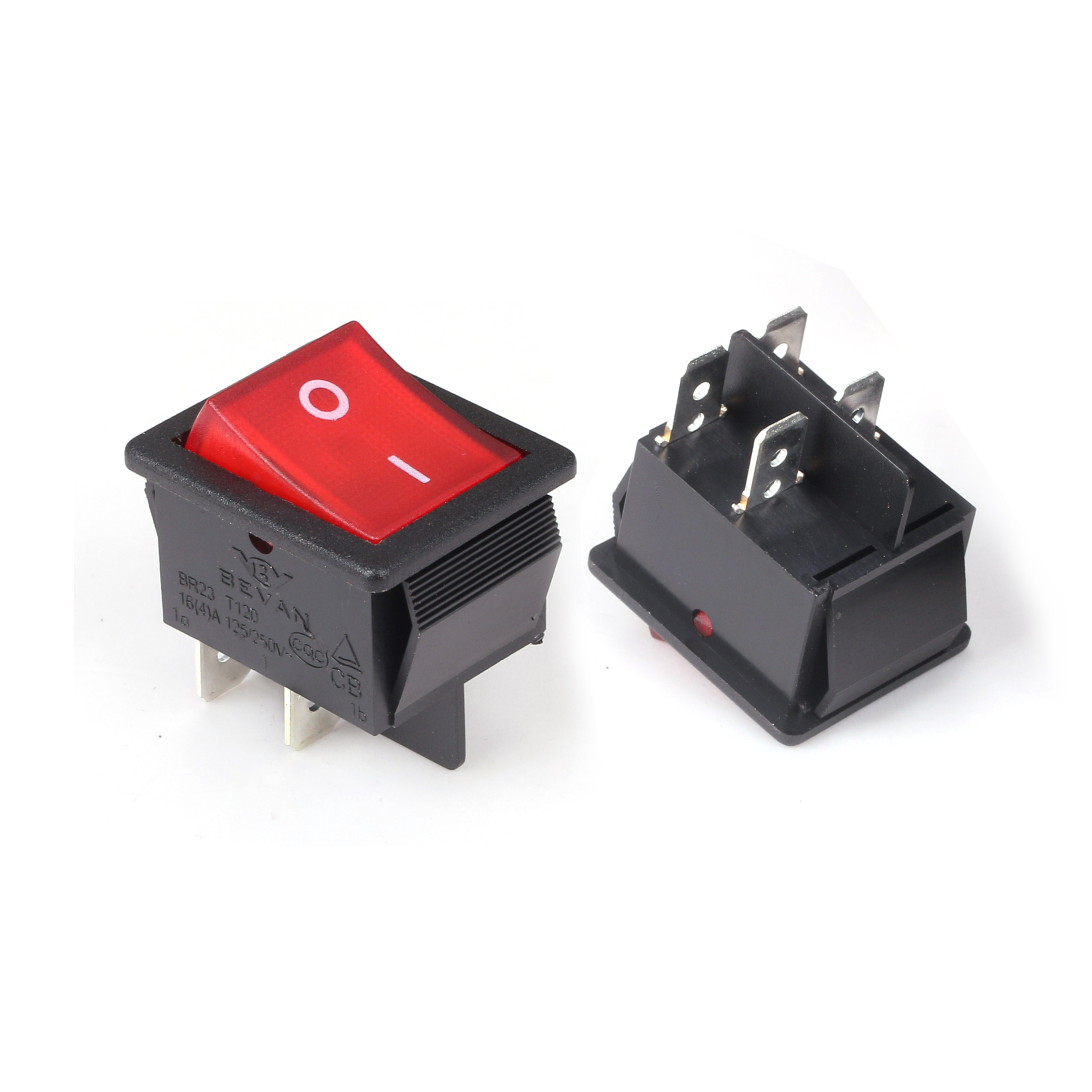

12v dc rocker switch/illuminated mini rocker switch waterproof illuminated rocker switch

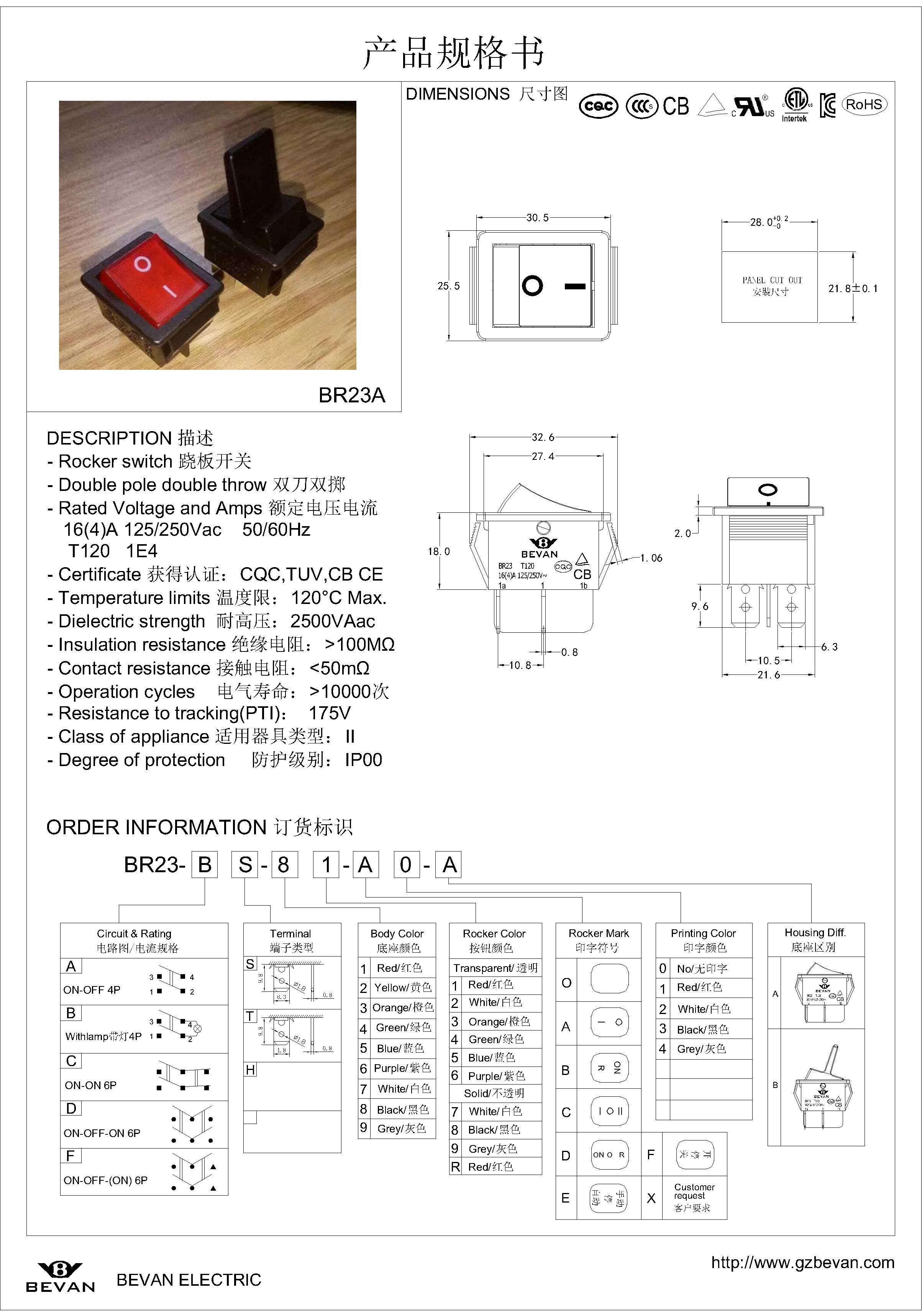

1.DESCRIPTION
| Specification | |
| Items | Standard |
| Rated Load | 6A/10A/16A 125V/250V AC |
| Insulation resistance | 100 MΩ min. |
| Withstand Voltage | AC1500V/min |
| Contact resistance | 30MΩ max. |
| Operating temperature range | -30°c to + 85℃ |
| Electrical life | 10,000 Cycles min. |
| Operating force | 3N-8N |
| Switch Function | ON OFF |
| Compressive strength | AC 1500V 50Hz/1 min |
2.packaging & Delivery
Packaging Details
Inner packing: foam, bag, box
Outer packing: export carton
Or as you requested
Port guangzhou china
Lead Time :7-14 days
ABOUT US
Guangzhou beiwen electric appliance technology Co.,ltd is a
professional manufacturer of electromechanical switches in
Yueqing,China. Our factory covers an area of over 5,000 square
meters, having a total staff of over 200 members. We are engaged in
producing 9 categories and about 4,000 models of push button
switches, rocker switches, micro switches, touch switches, lift
switches, refrigerator door switches, miniature toggle switches,
indicators, alligators, fuse holders, enclosures, AC sockets and
etc. With a principle of being creative, advancedand honest, we are
always improving our products and services to better satisfy you
customers.
|
