10A*2CH CCT Adjustment RF Wireless LED Controller MAX 480W Power Available

DC12-24V 1CH Max 480W RF Wireless LED Controller Touch Dimmer

1) DM9010 is the 2 channels product of 433.92MHz RF Wireless LED Dimmer Series.

2) This RF433.92MHz LED dimming controller use remote control mode, the user can remotely adjust the light to the appropriate brightness.

3) The remote control effect is stable, and the anti-interference ability is strong.

4) Can only One to one remote control, 20 meters is the effective controlling distance.

5) This controller is with several dynamic lighting effects, 10 dimming function, 256 PWM precision, 10 level dynamic effect of adjustable speed, static adjustable brightness.

6) At the same time, this controller has ultra-thin RF wireless remote control, the ultimate slim body, loop mode, host and remote shutdown, automatic memory function,etc.

Tech-parameters:

Specifications of LED RF Wireless Controller Series:

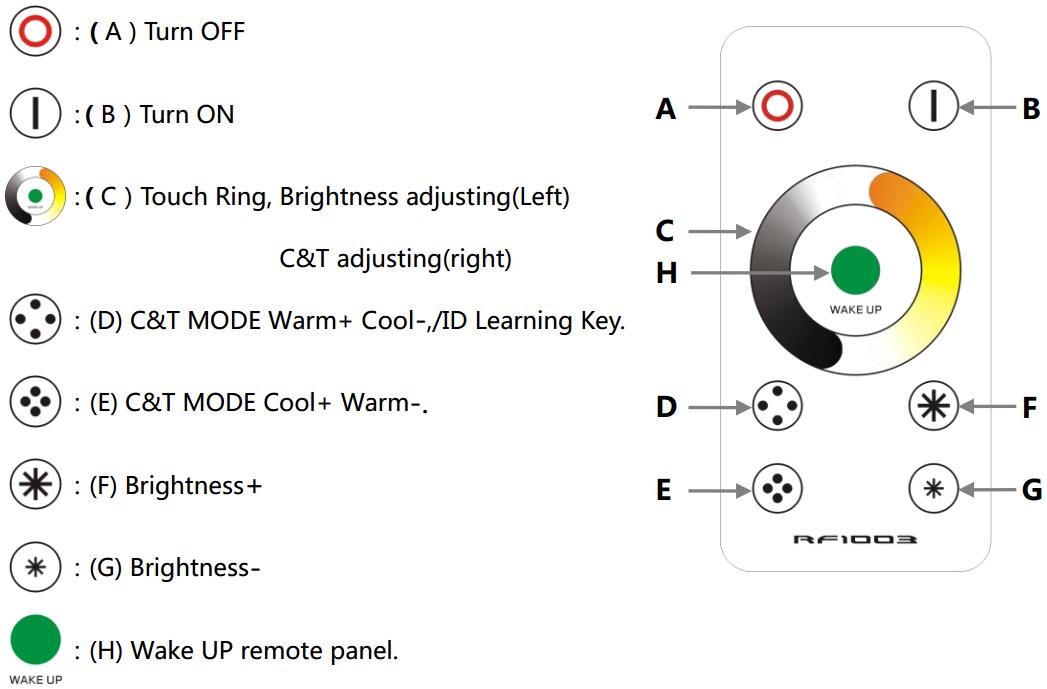

Function Instructions:

1), The remote control ID learning guide: Wake Up the remote, Press (25%) button, Then Power on the controller, the light on controller slow flashes 3 times, the ID is set.

2), The remote control ID clearance: Wake Up the remote, Press (25%) button, Then Power on the controller, the light on controller slow flashes 6 times, the ID is clearance.

3), Brightness Control Touch Ring from left (Min. BRT) to right (Max.BRT), 1%--100% 50 levels brightness control.

4), With 25%, 50%, 75% and 100% 4 brightness shortcuts.

5), With Power off memory function.

6), All above operating on condition Touch remote wake up

7), The remote Sleep function: 30seconds without operation, lengthen battery working life. Press WAKE UP to wake up the remote control.

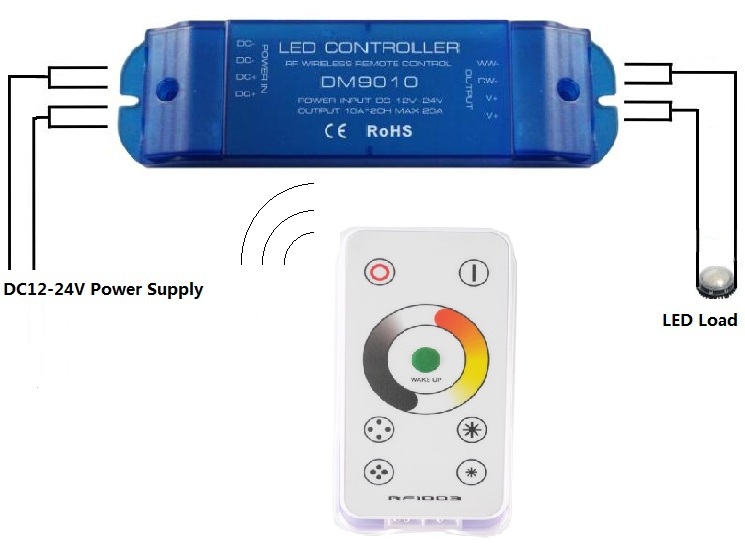

Product Wiring Diagram:
