| Categories | Precision Injection Molding |
|---|---|
| Brand Name: | No brand |
| Model Number: | No model |
| Certification: | ISO 9001:2008 |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 pc |
| Price: | Negotiate |
| Payment Terms: | T/T. Mould payment terms: 40% Deposit with P.O., Middle Term(first trial)30%, Final Term(before shipment)30%. Production payment terms: 50% Deposit with P.O., Final Term(before shipment)50%. |
| Supply Ability: | as customer's request |
| Delivery Time: | 5 weeks |
| Packaging Details: | By Crate |
| Mold No.: | NTT-210-34 |
| Mold Base: | 15 Square Flange |
| Core/ Cavity: | H13 Steel |
| Cavity Number: | 2 |
| Gate Type: | Tunnel Gate |
| Material: | Grivory+GV-5HL |
| Company Info. |
| NTT Mould Co., Ltd. |
| View Contact Details |
| Product List |
Grivory GV 5HL Injection Mold Tooling 15 Square Flange 1 Set Iinterchangeable Insert Tool
Project Detailed Description :
| Mold Number: | NTT-210-34 |
| Part Name: | 15 Square Flange |
| Part No.: | 120214-WG-15 |
| Core and Cavity: | 1.2344(H13) |
| Slides: | 4 slides |
| Cavity Numbers: | two cavity |
| Injection System: | cold runner/tunnel gates |
| Mould Life: | 800,000 Cycles. |
| Resin Name: | Grivory+GV-5HL |
| Shrinkage: | 1.012 |
| Molding Cycle Time: | 50s |
| Tool Dimensions: | 300x400x300 mm |
| Mold Weight: | 370 kg |
| Features: | 1 set cavity interchangeable insert. |
| Machine: | 350T |
| Mold Lead Time: | 5 weeks |
Project Process:
● RFQ
● Quotation
● PO
● DFM
● Mold Design
● Design Approved
● Steel Ordering
● Machining
● Mold Trial
● Sample Approved
● Texture
● Delivery
NTT Mould:
| Main Business | High-quality plastic injection molds, injection molding, & part assemblies. |
| Serve Industries | Automotive, electronics, home & office appliances, medical, etc. |
| Markets | 90% molds exported to North America, South American, Europe and Australia. |
| Complex structure | Hot runner mold, over mold, two-shot mold, unscrewing mold, multi-cavity mold, etc. |
| Quality | Strictly comply with ISO 9001, and use quality document system to control every process of design, production and inspection. |
Qualified Suppliers:
If you make mold with us, our engineer will follow up your project from beginning to end:
1. Before mold build, a rough layout of the mold design (DFM) can be sent as a PPT format. |
2. After you approve the DFM, we would give you a full detailed mold design in 2D and 3D drawing. |

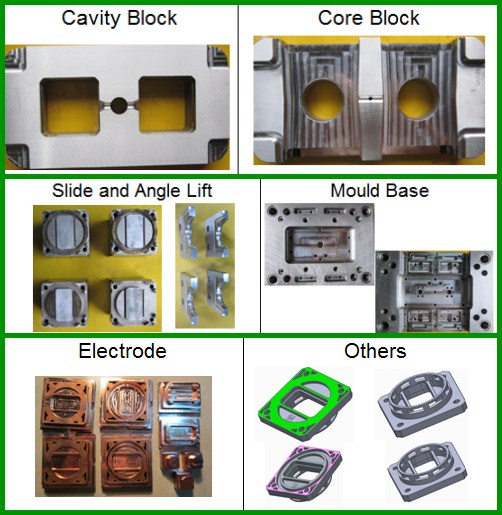

3. Once the mold design approved, we will start to build the mold strictly according to your requests. Every week, we will send you weekly report with components (electrode, cavity, core, mold base) picture to show you the process of the project. |
4. When we make T1 samples, we will make a video to you, and also send samples with molding report for your approval. |
5. Only everything of the mold and sample is confirmed OK from your side, we will arrange the mold shipment and send you mold inspection report as well. |
We take carefully with every step to make sure our quality, and what we can do, we surely try our best to work on it.
We are always available to answer your questions if you need additional information. Call us now, we look forward to partnering with you as your supplier.
|
