Home > Filling Machines >

NJP -800 Auto Packing Machine , Capsule Filling Machine Easy To Operate

Categories Capsule Filling Machine
Brand Name: FRS
Model Number: NJP-800
Certification: GMP,ISO
Place of Origin: China
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10 set/ month
Delivery Time: 10 working days
Packaging Details: standard wooden case
Application: For filling the powder or pellet into the capsule
Product name: Automatic capsule filling machine
Material: 304 Stainless Steel
Operation: Touch Screen
Power Supply: 220V/380V/110V/According customer's requirement
Type: use packing powder
Warranty: 12 month
Main market: USA,West Europe
Weight: 900 kg
Packing Material: wooden cases
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

NJP -800 Auto Packing Machine , Capsule Filling Machine Easy To Operate

NJP -800 Auto Packing Machine , Capsule Filling Machine Easy To Operate

Product Application

This machine is used for filling the powder or pellet into the capsule.


Working principal

Capsule Part: Loading the empty capsule into capsule hopper, the empty capsule then get into capsule sowing plate, automatic make U turn, divide the top and body of capsule

when pass by vacuum, automatic filling while come into dosage tray, it has automatic reject function if the capsule is flat or its top and body can not be divided. After that, automatic locking and output the final products.
Powder or pellets part: Loading the medicine into medicine hopper, then the medicine automatic come down, (the machine stop automatically while no medicine), dosage tray going filling for five times, make the medicine save into medicine pole. Finally, medicine is filled into empty capsule.

SPECIFICATIONS FOR NJP-800 AUTOMATIC CAPSULE FILLING MACHINE
1
Model
/
NJP-800
2
Capacity
Capsules/min
800
3
Capsule Size
/
No.00-5
4
Filling Rate
%
=>99%
5
Power
KW
7
6
Vacuum pump
Mpa
0.02-0.06
7
Noise
dBA
<80
8
Dust collector
/
700m3/H, 2X105pa, 350*700*1000mm,
40k
9
Oversize and weight of machine
mm,kg
970*820*1900mm, 900kg

Main Features

With touch screen and PLC,operation is very easy

Avoid the materials jam

Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling

Protect materials from harm

Feeding evenly with quiver, special patent filling part, no breakage of the material.

Detection and sorting function

No bottle will not count and fill. Automatically remove bottles of filling abnormalities and broken tablets.

Self-diagnose errors and stop working to make alarm at errors.

Anti-dust

Using our own original high anti-dust sensor technology, the machine works

accurately with good stability in heavy dust conditions.

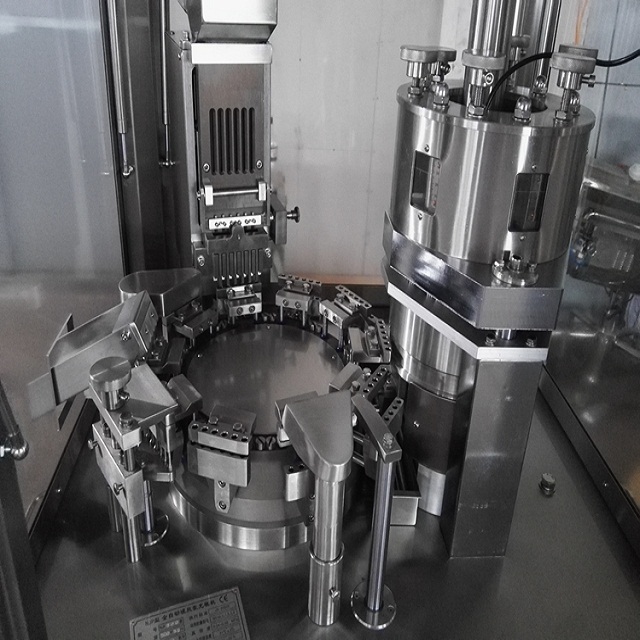

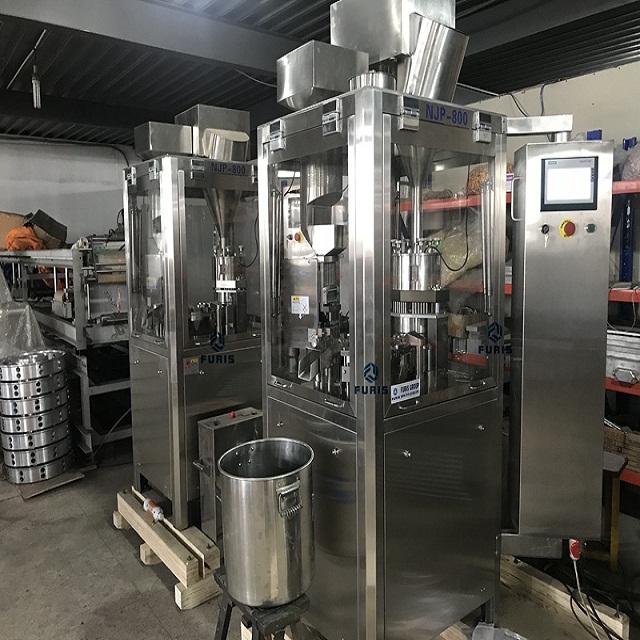

Detailed Images

Tag: capsule filling machine

manual capsule filling machine

Cheap NJP -800 Auto Packing Machine , Capsule Filling Machine Easy To Operate for sale
