Categories | Intermediate Wire Drawing Machine |
---|---|
Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Newlead |
Model Number: | PND500/630800 |
Certification: | CE |
Price: | Negotiation |
MOQ: | 1 pcs |
Supply Ability: | 50 pscs in 45 days |
Delivery Time: | 45 days |
Packaging Details: | wooden pallet |
Model 1: | DIN500 |
Model 2: | DIN630 |
Model 3: | DIN800 |
Material: | Steel tube and steel plate |
Warranty: | 2 YEARS |
After-sales Service Provided: | Engineers available to service machinery overseas |

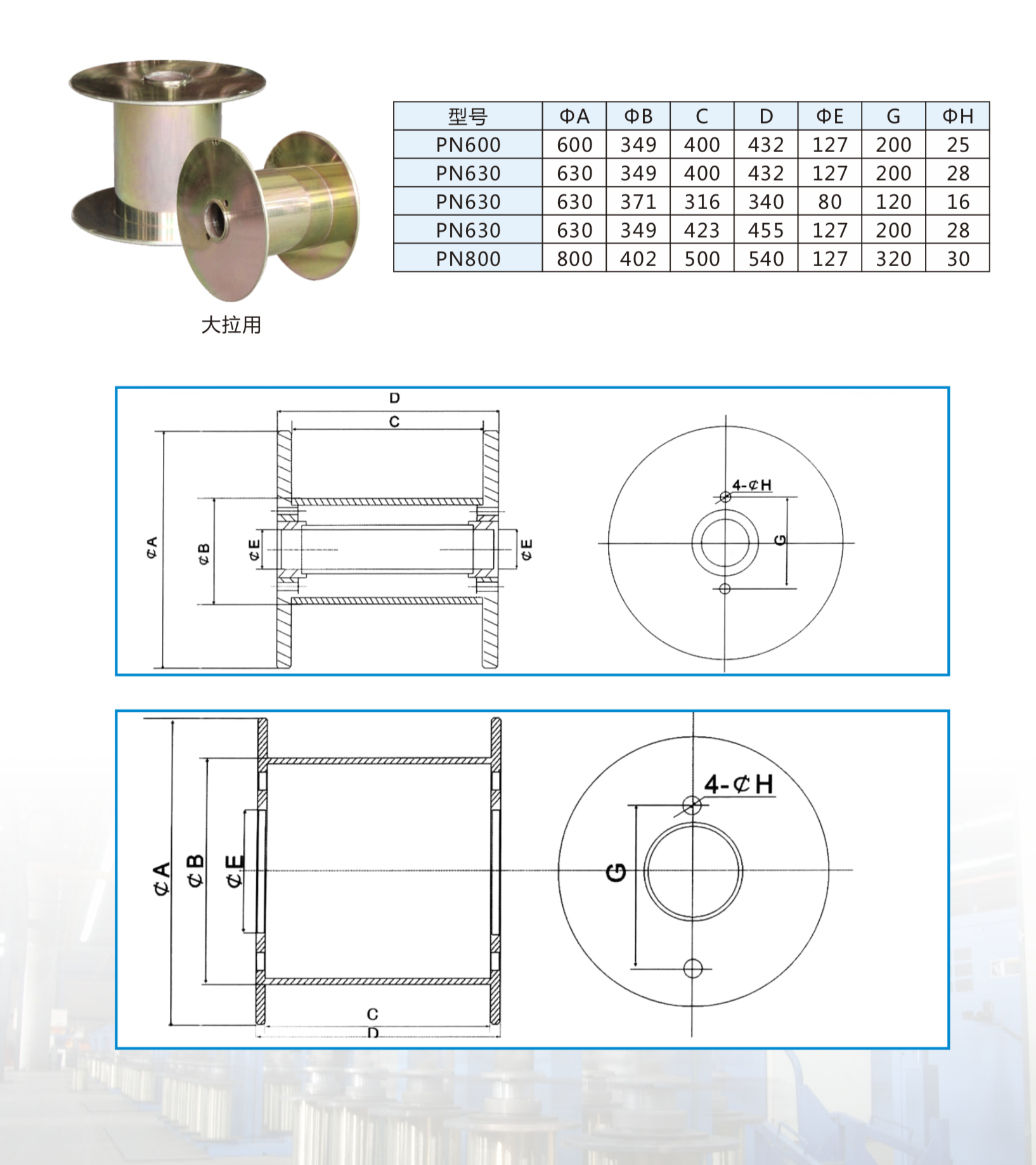

Metal bobbin for Intermediate wire drawing machine PND500 PND 630 PND800 DIN46395 /DIN46397 standard Dynamically balanced
Dynamically balanced for speed from 25m/s to 50m/s.
For cable,ferrous and non-ferrous wire.
For drawing,stranding and bunching machines.
Item | 17DT/17MDT | 17DST | 250Annealing machine |
Inlet diameter(mm) | Ф2.5-Ф3.5 | Ф2.5-Ф3.5 | Ф2.5-Ф3.5 |
Outlet diameter(mm) | Ф0.4-Ф1.2 | Ф0.4-Ф1.6 | Ф0.4-Ф1.2 |
Max drawing speed(MPM) | 1200 | 1500 | 1200 |
Main motor | 45KW | 55KW | 37KW |
Annealing motor | 72KVA | 90KVA | 72KVA |
Spooler motor | 11KW | 15KW | 11KW |
Annealing method | DC. three-section annealing | ||
Suitable diameter of spool (mm) | Ф630(Max) | ||
Revise system | PID Synchronous spooler | ||
Capacity for wire drawing | 100-400KG | ||
Power source | 380V | ||
Brake type | Pneumatic brake | ||
Dimension(mm) | 1000Lx1400Wx2450H | ||
Weight | 6500 | 7300 | 2000 |
![]() |
