12V 24V 40A Solar Controller Inverter , Inverter With Built In Charge Controller

Categories Solar Controller Inverter
Brand Name: Yo Power Electrical
Model Number: YQMI-1000W-40A
Certification: CE, ROHS, FCC
Place of Origin: Anhui, China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, D/A, Western Union, T/T, MoneyGram, Paypal
Supply Ability: 1
Delivery Time: 1
Packaging Details: Carton box
Rated voltage: 12V or 24V
Rated output power: 1000W
Solar charging current: 40A
Peak power: 2000W
Over load capability: 1200W, 10S
Warranty: 2 years
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

12V 24V 40A Solar Controller Inverter , Inverter With Built In Charge Controller

1000W Solar Inverter With Battery Charger 12V 24V 40A MPPT Regulator


This 1000W DC to AC Solar Inverter With Battery Charger is the best device to any off grid solar power system. Not only will it convert DC power (battery power) to pure AC power for AC appliance, but it will also use solar power charging battery during the day. This inverter with full power (1000W) otutput and 2 times peak power (2000W), and build in 12V/24V 40A MPPT Solar charge controller. As a pure sine wave inverter, it is capable of producing cleaner, smoother, quieter, and more reliable electricity to operate tools, fans, lights, and other electronics, without any interference.


1. Features

  • Build in high efficiency MPPT solar charge controller
  • Pure sine waveform output

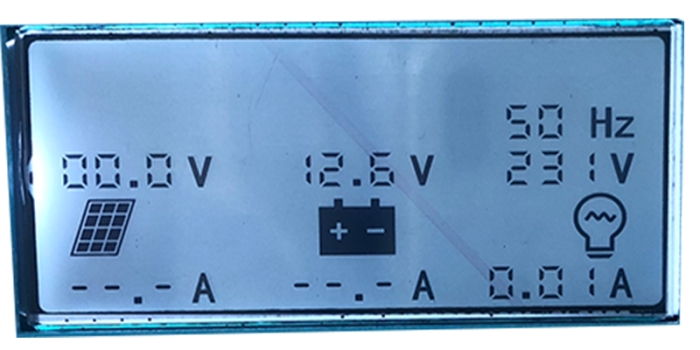

  • LCD+LED display
  • High frequency transformer
  • With AC, DC, USB output
  • 2 years warranty

2. Parameters

ModelYQMI-12V-1000W-40AYQMI-24V-1000W-40A
Rated voltage12V24V
Rated output power800W
Max. input solar power1600W
Max. input voltage50V100V
Start charging voltage (solar)15V30V
Charging modelMPPT with PWM regulator method
MPPT efficiency>99.5%
Rated solar charging current40A
Low voltage disconnect10.8V21.6V
Low voltage reconnect12.6V25.2V
Equalize charging voltage14.4V28.8V
Recovery to Equalize charging13.2V26.4V
Float charging voltage13.8V27.6V
AC output voltage110V~240V±3%
Frequency50Hz/60Hz
Output formPure sine waveform
Inverter efficiency>85%
Optional function

AC charger build in

AC bypass

Ambient temperature-25℃~+55℃
Size296*144*75mm
Weight2KG

Remark: the MPPT solar charge controller can be customized.


3. Instruction of LED indicator

ChargeOnNormal charging
FlashEqualize charging or Float charging
Off

Solar panel not connet or the output voltage of

solar panel low than the start charging voltage

LowOnBattery voltage is under the low voltage disconnect point
OffBattery voltage normal
FullOnBattery full charge
OffBattery is not full charge

4. Details

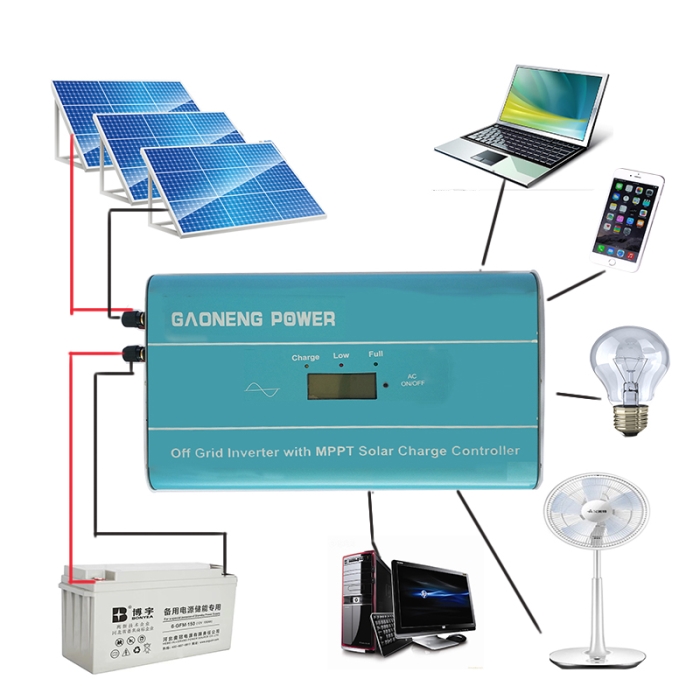

5. Application

Solar power system

Solar power system with AC power as complementary
