| Place of Origin: | China |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Light Source: | LED |
| LED Type: | SMD2835 |
| Lamp Power(W): | 9 |
| Beam Angle: | 100 |
| CRI (Ra>): | 80,90CRI option |
| Length: | 300mm |
| Company Info. |
| One Plus Lighting Co., Ltd. |
| View Contact Details |
| Product List |
70lm/W 9 Watt LED Cabinet Lighting Kits Length 600mm DIY 540-630lm Kitchen
Product description:
Voltage:DC( 12V version is optional)
Operating Temperature:32-113F(0-45°)
Lamp Life:40 000hrs/70%
Color Temperature:2700k,3000k,4000k,6000k
CRI:>80
Energy efficiency:70Lm/W
Degree of Protection:IP20
Product Features:
Perfect Lighting Distribution,No Spot dot
DIY Link available –Quick Connection system Between light bars
Six options of basic lengths ,can DIY any length you like
Various of installation methods
Full sets of accessories availbe
Constant voltage circuit design support 6m Link with tiny light difference
Soft light, good for eyes
Product Data sheet
| PN | H015-3W | H030-5W | H060-9W | H090-14W | H100-15W | H120-17W |
| Length(mm) | 150 | 300 | 600 | 900 | 1000 | 1200 |
| Watt(W) | 3 | 5 | 9 | 14 | 15 | 17 |
| LED Qty(pcs) | 18 | 36 | 72 | 108 | 120 | 144 |
| Voltage(V) | DC24 | DC24 | DC24 | DC24 | DC24 | DC24 |
| Lumens(Lm) | 180-210 | 300-350 | 540-630 | 840-980 | 900-1050 | 1020-1190 |
| Light Efficacy(Lm/W) | 60-70 | 60-70 | 60-70 | 60-70 | 60-70 | 60-70 |
| CCT(K) | 2700K, 3000K,4000K,6000K | |||||
| CRI(Ra) | 82/92 | |||||
| Beam Angle(°) | 100 | 100 | 100 | 100 | 100 | 100 |
| Dimmable | YES | YES | YES | YES | YES | YES |
| Power Factor(PF) | 1 | 1 | 1 | 1 | 1 | 1 |
| Lifetime(Hrs) | 40,000 | 40,000 | 40,000 | 40,000 | 40,000 | 40,000 |

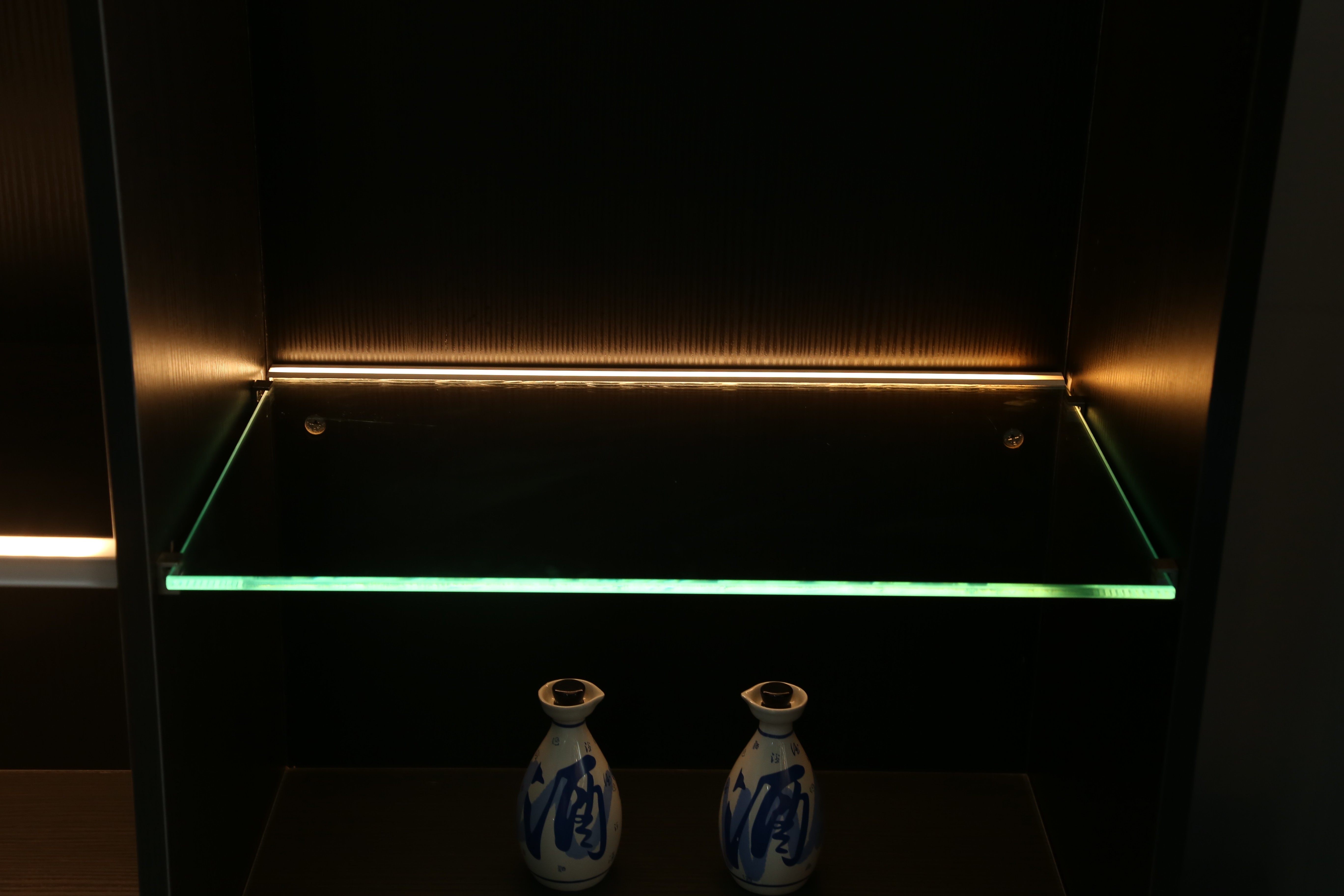

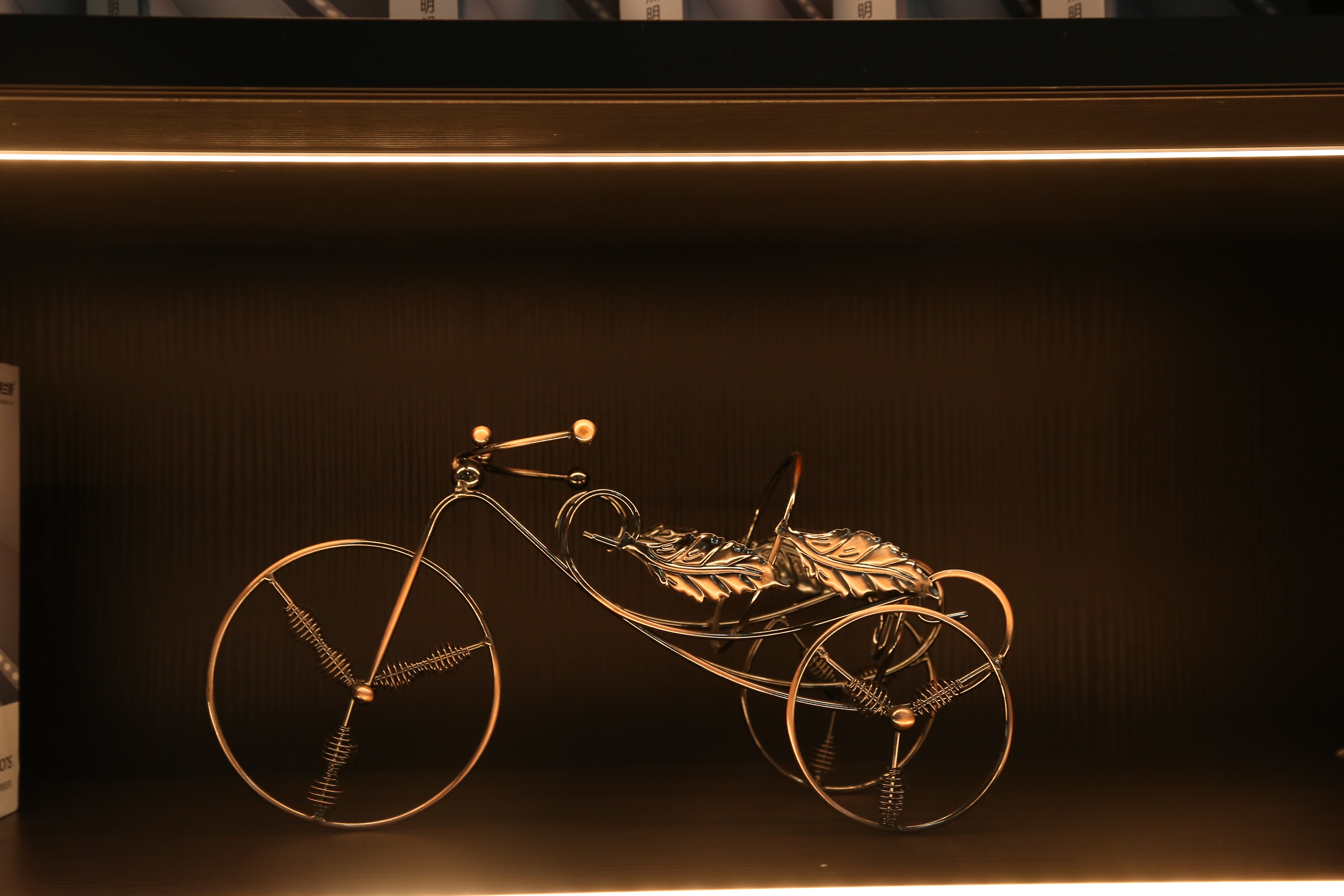

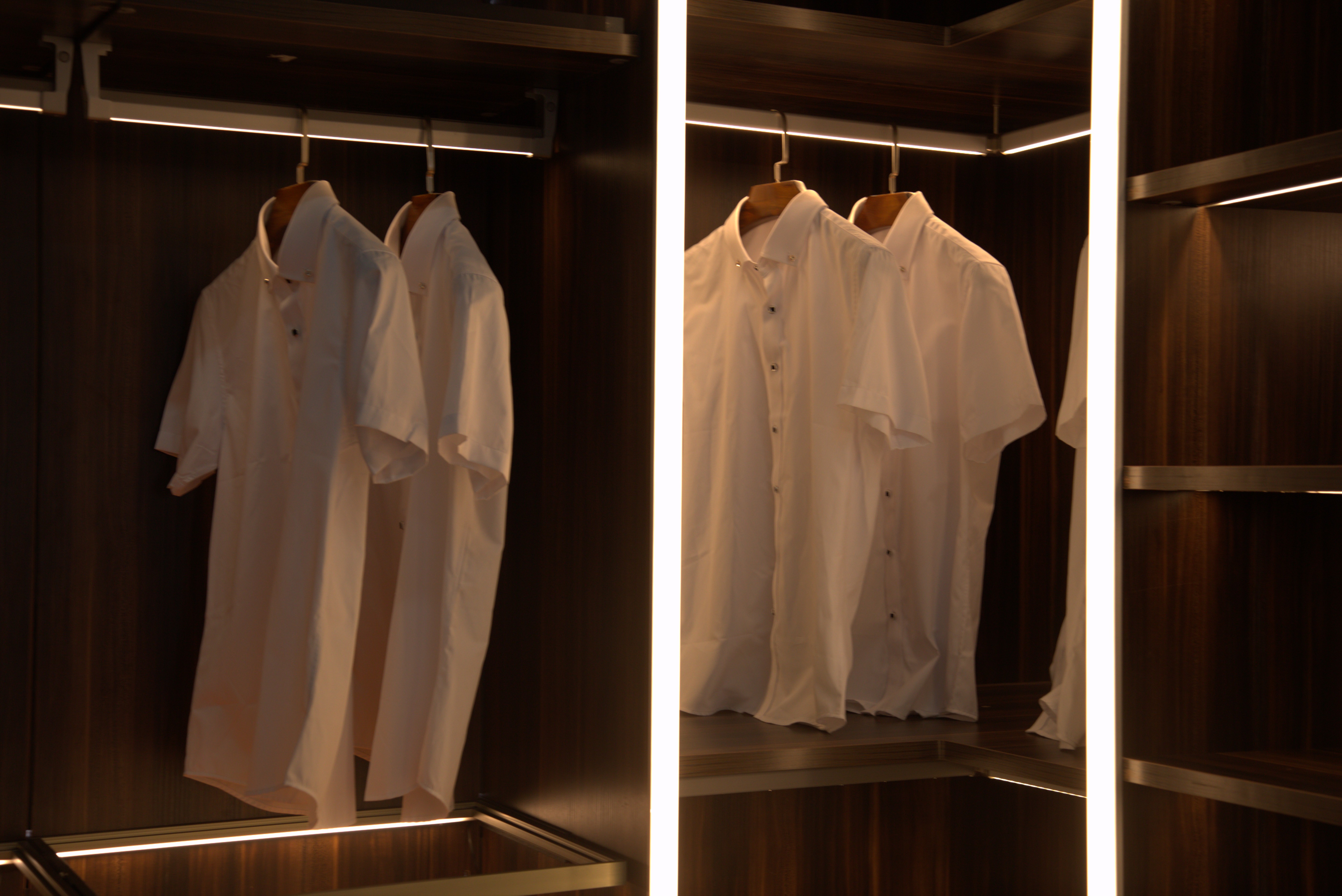

Application
Product Package
| Model | Airline2-H015-3W | Airline2-H030-5W | Airline2-H030-5W | Airline2-H030-5W | Airline2-H030-5W | Airline2-H030-5W |
| Box*Size | 645*254*42mm | 645*254*42mm | 645*254*42mm | 645*254*42mm | 645*254*42mm | 645*254*42mm |
| Qty/Box | 40 | 20 | 10 | 10 | 10 | 10 |
| Carton Size | 670*265*200 | 670*265*200 | 670*265*200 | 670*265*200 | 670*265*200 | 670*265*200 |
| Qty/Carton | 160pcs | 80pcs | 40pcs | 40pcs | 40pcs | 40pcs |
| G.W | 12kg | 12kg | 12kg | 16.5kg | 17.8kg | 22kg |
|
