Highly Efficient Standing Seam Metal Roof Machine , Wall Cladding Forming Machine

Categories Standing Seam Metal Roof Machine
Place of Origin: Xiamen,China
Brand Name: BMS
Model Number: YX25-220/550
Certification: ISO9001
Supply Ability: 30 Set/Sets per Month
Packaging Details: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container suitable for long-distance transportation, spare parts are covered by plastic film.
MOQ: 1 set
Price: Negotiable
Type: Steel Frame & Purlin Machine
Condition: New
Work Pressure: 245---550Mpa
Production Capacity: 12-15m/min
Voltage: AC 3-380V/415V/440V
Power(W): 4kw+3.7kw
Dimension(L*W*H): 6900*1600*1200
Weight: 6.5 Tons
Working material: galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC)
Thickness: 0.4-0.7mm
Yield strength: 245-550Mpa
Decoiler: Manual/Hydraulic for options
Housing: H300 beam
Side wall thickness: 16mm
Shaft: 75mm
Forming station: 14
Cutter material: Cr12 Tool Steel
Output: about 12-15meters per minute
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 18 Months
Port: Xiamen
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Highly Efficient Standing Seam Metal Roof Machine , Wall Cladding Forming Machine

Highly Efficient Standing Seam Metal Roof Machine, Wall Cladding Forming Machine


Product Description


Main Components
1. Manual Decoiler: one set
Un-powered, Manually control steel coil inner bore shrinkage and stop
Max. feeding width: 575mm, coil ID range 470mm±30mm
Capacity: Max.5Ton
2. Cold Rolling Mills:
Material Thickness:0.8-1.2mm,Material Width:575mm,
With feeding material guide, body frame made from 350# H type steel by welding, Sidewall thickness: 18mm
Rollers manufactured from 45#, precision machined, hard Chrome Coated
Shafts manufactured from 45#, Diameter=φ75mm, precision machined
Motor Driving, Gear chain transmission, 14 steps to form
Main Motor=7.5KW, Frequency speed control 380V/50Hz/3Ph
Forming speed of approx.15m/min
3. Hydraulic Cutting device
Cutter frame made from high quality 20mm steel plate by welding
Post cut, stop to cutting, use the same hydraulic motor drive
hydraulic motor: 2.2KW, Hydraulic pressure range: 0-18Mpa
Cutting tool material: Cr12, Heat treatment
4. PLC Control System(Touch screen brand: German Schneider Electric, Inverter brand: Taiwan DELTA, Encoder brand: Japan Koyo)
Control the quantity and cutting length automatically
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V
5. Exit Rack Un-powered, two units


Certifications


Our Service


Pre-Sales Service

* Inquiry and consulting support.

* Profile drawing and roll forming solution.

* View our Factory.


After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

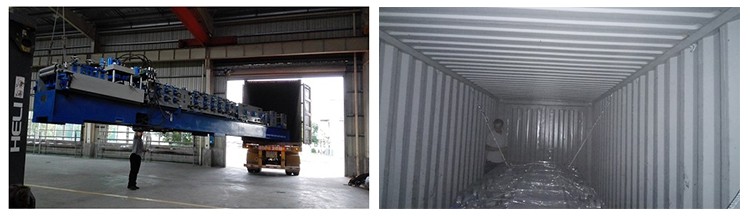

Packaging & Shipping


(1) The main body of the machine

is naked and covered by the plastic film(to protect dust and corrosion), loaded into the container and steadily fixed in 1x40GP container with steel rope and lock catch suitable for long-distance transportation, spare parts are covered by plastic film.

(2) With even lifting points in the machine for easy container loading and uploading.


Company information

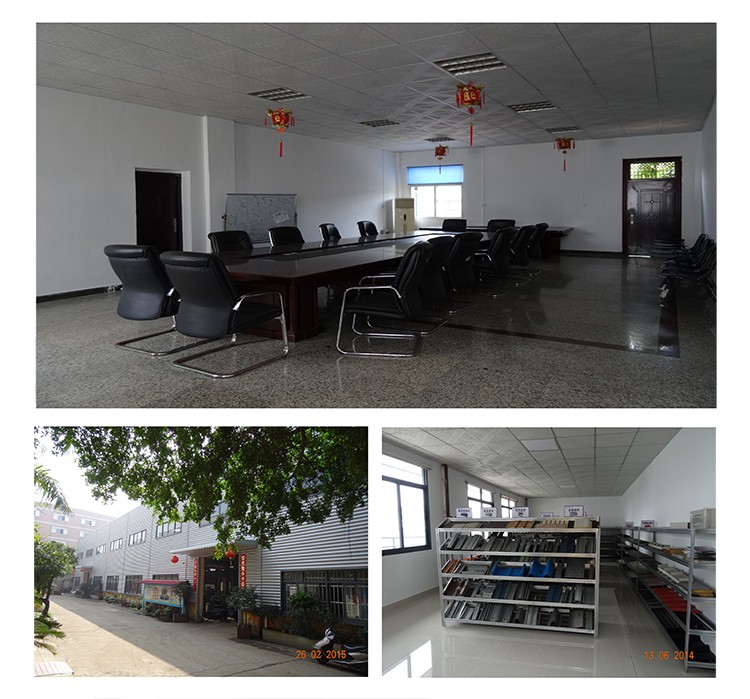

Company Show
