Flat Dripper Drip Irrigation Tape Making Machine / Drip Tape Production Line Flat Emitter 180m/min KAIDE

Flat Drip Irrigation Tape Production Line

Inline Flat Drip Irrigation Tape Making Machine

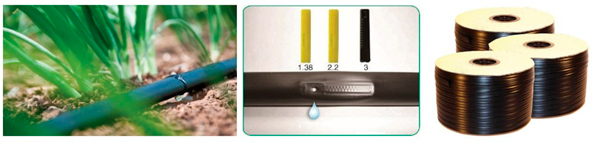

Drip irrigation tape is a flat, thin-walled hose containing pre-spaced dripper emitters, that expands when filled with water. The flat drip emitters are welded into to the tape at certain space as per growing plans needs.

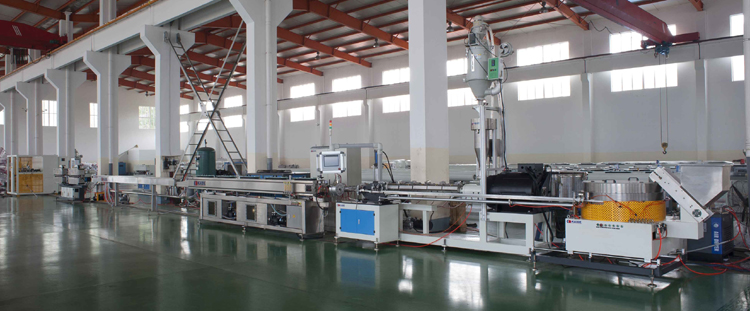

Below are such making machine for this flat drip irrigation tape making.

There are mainly three different models for those drip tape machines, KDPD-I (speed 80m/min), KDPE-II (speed 180m/min) and KDPD-III (speed 250m/min). They are different in production speed and produced drip tape thickness, and what kind of drippers you are using.

TECHINICAL DATA FOR 180m/min Speed model

DRIP IRRIGATION TAPE MACHINE DETAIL INTRODUCTION -- 180m/min speed model

1. Dripper sorting & inserting machine

• Dripper identifying speed is more than 1100pcs/min, to ensure dripper supply
• Dripper inserting is driven by servo motor, and sync controlled with PLC system
• dripper space is direct set on PLC, with min. space 100mm
• Auto feeder with dripper lack alarm

2. Extruder & Cross Die Head

• Extruder driven by AC motor; with ABB converter, Schneider electric elements
• SIEMENS PLC control system, to sync control with dripper inserting speed and haul-off speed
• Special designed cross type die head; high quality mould steel 40Cr, which is processed by imported CNC machinery.

3. Vacuum tank & Cooling tank

• made by high quality SS304; high quality vacuum pump & water pump
• special design calibrator for drip tape making
• air bubble detecting and alarm system; tape break down stop function; tape anti-rotation system etc

4. Perforating Machine & Tractor

• driven by servo motor and servo controller, with high precision punching degree
• Laser sentor to auto tracking dripper positon, and with image system to check punching hole condition
• Intelligent control system with remote control system

5. Winding Machine

• servo type traversing device, driven by SIEMENS servo motor
• with tension control device to auto adjust winding speed
• separate SIEMENS PLC control system

MORE INFORMATION NEEDED,

PLS CONTACT US RIGHT NOW!!

Weifang Kaide Plastics Machinery Co., Ltd. was established in 2001, focusing on plastic pipe extrusion technology for more than 20 years, especially for high speed pipe prodution line and multi-layer composite pipe line.

Our main pipe extrusion lines are:

High Speed PERT/HDPE Pipe Extrusion Line

High Speed PPR-FG-PPR Pipe Extrusion Line

Inline Flat/Round type Drip Irrigation Pipe Extrusion Line

PEX-AL-PEX/PPPR-AL-PPR/PERT-AL-PERT Pipe Extrusion Line

EVOH Oxygen Barrier Pipe Extrusion Line

Cross-linking PEX Pipe Extrusion Line

PVC reinforeced Hose Extrusion Line

Single Wall Corrugated Pipe Extrusion Line etc.

We have passed ISO9001 International quality system certification, CE certification, American UL certification.

And was awarded as Advanced Enterprise, National outerstanding Engerprises, Technology Contributions Prizes, High Technology Enterprises, Creditable Enterprises,etc .

With advanced technology, excellent product quality and better service, we have gained a larger market share for high-end plastic pipe lines in the domestic market, and exported to Italy, Poland, German， Finland,  Russia, Ukraine, Iran, Algeria, South Korea, Kyrgyzstan and other countries and area all over the world, and successfully entered in to Europe and American market.

Any inquiry from you is highly appreciated. Sincerely hope those words can lead us to a good cooperative relationship.
