| Categories | Carbon Composition Potentiometer |
|---|---|
| Brand Name: | ANYO |
| Model Number: | WH138-1 |
| Place of Origin: | CHINA |
| MOQ: | 1000pcs |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30000 per day |
| Delivery Time: | 8-10 work days |
| Packaging Details: | 2000pcs/carton, 16kg, 39*31*25cm |
| Other name: | Dimmer potentiometer |
| Rotational noise: | ≤47mV |
| Total resistance: | 1KΩ ~ 2MΩ |
| Resistance tolerance: | ± 20% |
| Resistance taper: | A,B,C |
| Rotary life: | 10000 cycles |

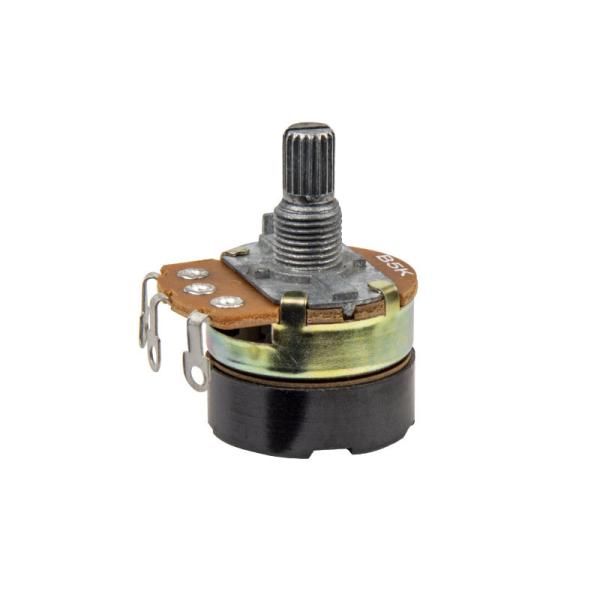

Φ24mm adjustable resistance dimmer with switch potentiometer WH138-1
Application:
Ideal for multimedia, computer speaker, stereos amplifier, lighting regulation etc.
Description:
The carbon film potentiometers are formed by depositing carbon composition ink on an insulating body, which in most of the cases is phenolic resin. This is one of the most commonly used materials for the potentiometer that is quite cheap and has resolution better than the wire wound potentiometers. They have reasonable life and tolerable noise levels.
Features:
• Rotary type with switch
• Carbon composition
• Top adjustment
• 6mm knurled shaft
• Special tapers
Mechanical specifications:
| Rotational torque | 2~20mN.m (20~200gf.cm) |
| Total rotation angle | 300°±5° |
| Switch working force/torque | 150～450mN.m |
| Shaft stop strength | 6Kgf.cm/min |
| Rotary life | 10000 cycles |
| Switch life | 10000 times |
| Switch working angle | 50°±10° |
| Soldering | 235℃±5℃: ≤3s |
Electrical specifications:
| Temperature range | -10℃~100℃ |
| Rated power | Curve B: 0.5W Other curve B: 0.25W |
| Max. operation voltage | Curve B: AC 500V Other curve B: AC250V |
| Resistance tolerance | ± 20% |
| Resistance range | 1KΩ~2MΩ |
| Rotational noise | ≤ 47 mV |
| Residual resistance | R ≥ 250KΩ 0.1% max. 250KΩ> R> 10KΩ 20 Ω max 10KΩ ≥ R 10 Ω max |
| Resistance taper | A,B,C |
| Switch contact resistance | Less than 30mΩ |
| Dielectric | AC500V for 1 minute |
| Rated switching power | AC125V 1A,4A,6A |
| Insulation resistance | More than 100MΩ at DC250V |
Materials used for potentiometer:
| Material | Properties |
| Carbon composition | Carbon composition ink molded on a substrate(phenolic resin). Most common material, low cost and reasonable noise and wear characteristics. |
| Wirewound | Wirewound pots can handle high power,are long lasting and can be very precise. They have however a limited resolution and rough feel. Most used in high power applications (rheostats are often wirewound) or as precision pots. |
| Conductive plastic | Very smooth feel and high resolution, can be constructed to perform millions of cycles. Can only handle a limited power and are expensive. Often used in high-end (audio) equipment where a high resolution and low noise are important. |
| Cermet | Very stable, low temperature coefficient and handles high temperatures well. On the other hand quite expensive and often limited amount of cylces allowed(special long-life cermet pots also exist). Often used for trimpots which do not have to be adjusted often. |
The taper of a potentiometer is normally indicated with a letter. The following table lists the used coding for potentiometer taper, different standards uses the same letters which can be confusing. It is always a good idea to double check the taper by measurement.
| Taper | String | Asia (common) | Europe | America | Vishay |
| Linear | LIN | B | A | B | A |
| Log / Audio | LOG | A | C | A | L |
| Anti-log | F | C | F |

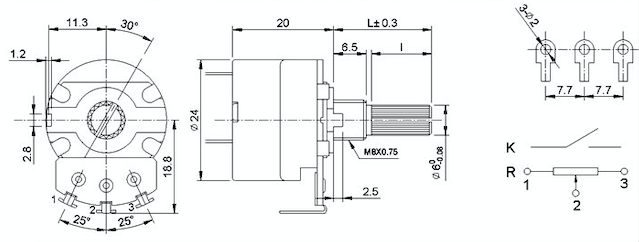

Dimension:
|
