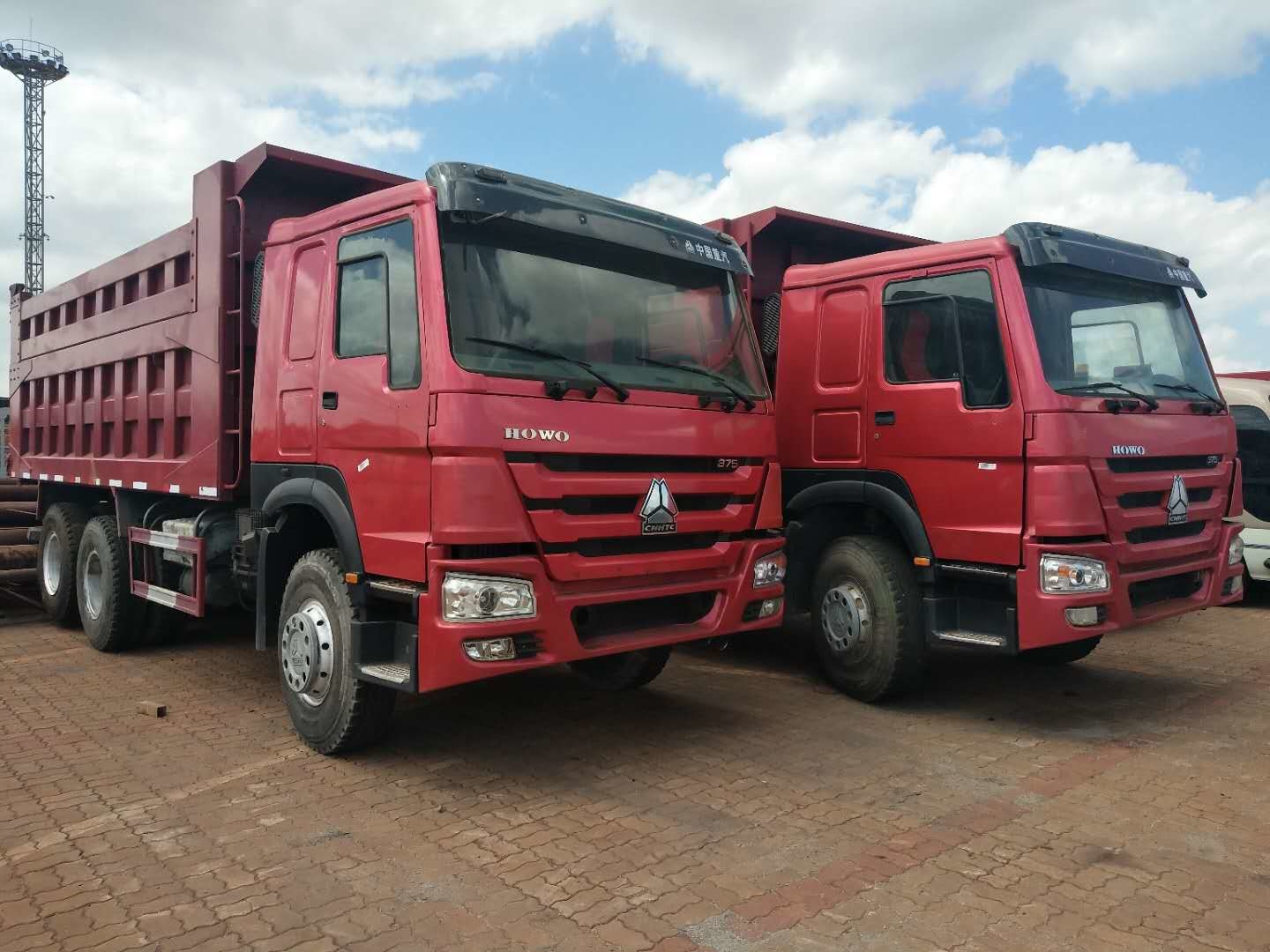

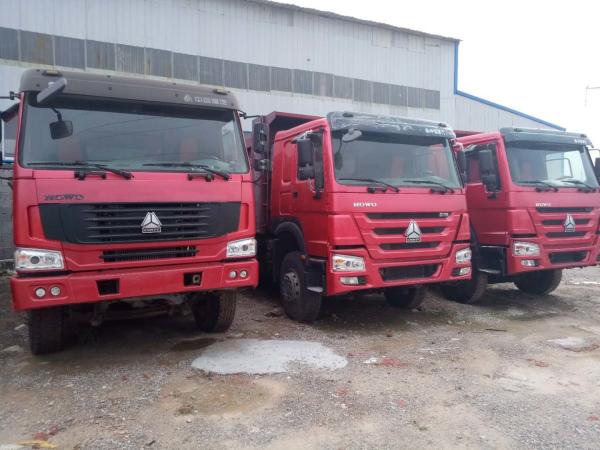

Used Howo Dump Truck, 6x4 Dump Truck, Mining Dump Truck

Contact Now

Add to Cart

Company Info.

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Chassis model	ZZ3257N3847C1
Size	Wheelbase (mm)	4625+1400
	Overall size (mm)	977024963170
	Body (mm)	580023001000
Driving type	Left hand drive (LHD)
Weight	Curb weight	12270 kg
	G.V.W	25000 kg
	Model	WD615.96E,375hp, Diesel.
Engine	Type	Six cylinders inline, water cooling, 4 stroke, supercharge inter cooler
	Fuel tanker(L)	400
	Rated Power (kw/rpm)	276/2200
	Maximum Torque (Nm)	1500N.m
	Maximum Torque speed	1600RPM
	Compression ratio	17.5:117:1
	Bore X Stroke	126x130mm
	Displacement	9.726 L
Cabin	HW76, plat-roof cab, one sleeper (berth), Air-conditioner, MP3, safety belts, curtain.
	Adjustable steering wheel, air horn, with 4-point support fully floating suspension and
	shock absorbers.
Transmission	HW15710C, 10 F and 2 R, manual.
Front Axles	HF9,9T
Rear Axles	HC16, 16TX2, drum brake. Speed ratio: 4.8.
Steering	ZF hydraulic steering with power assistance
Brake system	Service brake: dual circuit compressed air brake
	Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
	Auxiliary brake: engine exhaust brake
Electric system	Operating voltage: 24 V, negative grounded
	Starter: 24 V, 5.4 Kw
	Alternator: 3-phase, 28 V, 1500 W
	Batteries: 2 x 12 V, 165 Ah
	Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyre	12.00R20
Fuel tank	400L volume
