Environmentally Friendly Biomass Fired Steam Boiler Palm Shell Continues Heating Output

6 T / Hr Environmentally Friendly Palm shell Biomass Fired Steam Boiler Continues Heating Output

6 T / Hr Biomass Fired Steam Boiler applicable fuels:

shaped biomass fuel, rice husks, palm husks, bagasse, sawdust, coconut shells, firewood, peanut shells, etc.

Product advantages:

1, 6 T / Hr Biomass Fired Steam Boiler is a single horizontal boiler drum, quick-loading, three-return, water & fire tube boiler with large heating surface and high thermal efficiency;

2. Advantages of boiler design: compact structure, efficient and reasonable water circulation, and quick start-up;

3. fixed grate design: using a high-quality fixed grate, saving costs, electricity, and a small footprint.

4. The bottom of the boiler grate is equipped with air to flexibly control the fuel combustion, which is conducive to fuel burning and improve the efficiency of the whole machine;

5. Increase the effective area of the grate and increase the burning degree of the fuel;

6. produce high-quality steam, steam dryness greater than 96%;

7. The boiler has multiple interlocking safety protection controls such as pressure, temperature and water level;

8. The boiler is quickly assembled and shipped out, and the installation is simple.

6 T / Hr Biomass Fired Steam Boiler Boiler Work flow:

1. 6 T / Hr Biomass Fired Steam Boiler is equipped with water-cooled walls on both sides to form a furnace and a convection flue. A single-return threaded pipe is arranged in the drum.

2. The front arch and the rear arch of water cooling and pouring are used in the furnace.

The front arch is stepped and the rear arch is herringbone, which makes the arch coverage close to 85%, which is beneficial to the combustion of biomass fuel.

3. Mechanical combustion is achieved by using a large chain grate.

4. With drum high power induced draft fan for mechanical ventilation

With automatic slag machine to achieve mechanical slag, control and monitoring instruments are complete.

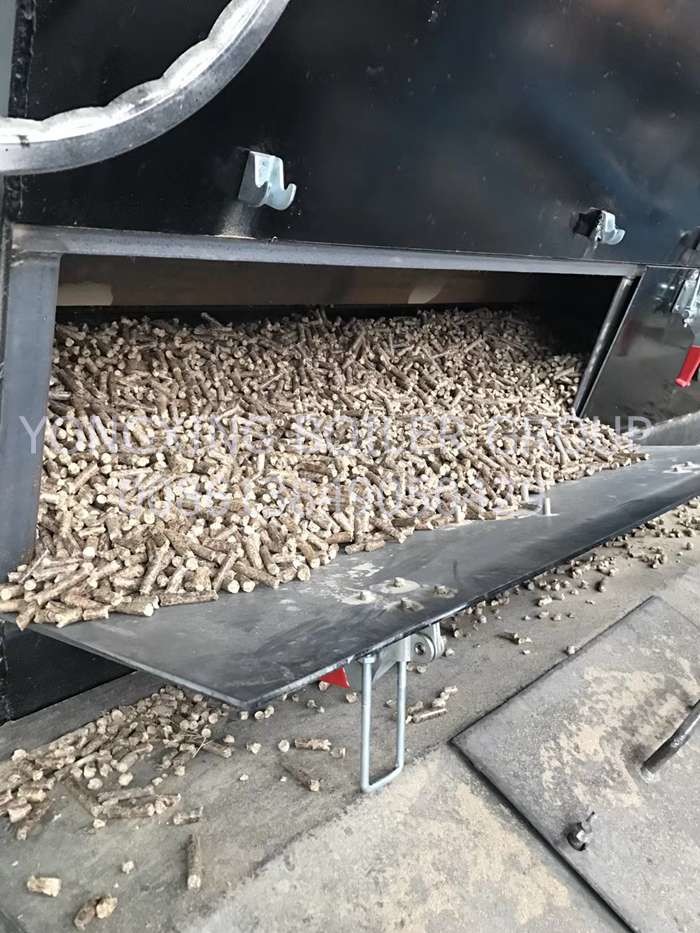

Detail Picture

Welcome inquiry more specifications if u need

Yongxing Boiler Group Co., Ltd. is a group company specializing in research, development, manufacturing, sales and installation services for various boilers and various thermal energy machinery and equipment.

Yongxing Boiler occupies an area of 60,000m2, with fixed assets of 15 million dollars, and is used for more than 100 sets of large and medium-sized equipment for production. More than 60 sets of advanced equipment for product quality inspection, with 37 series. The boiler and pressure vessel contains 167 specifications and models.

With A-class boiler manufacturing license issued by the General Administration of Quality Supervision, Inspection and Quarantine

A1 and A2 pressure vessel manufacturing licenses

The first-class boiler installation and transformation license

The ISO9001 international quality system certification and so on.

Annual production capacity is over 2000 tons.

YONGXING boiler main product:

Coal fired steam boilers, oil/gas steam boiler,hot water boilers, Thermal oil heaters, hot air furnace, oil/gas burners,chain grate accessories, and other environmentally friendly boilers and pressure vessels .

All the equipment are strictly enforced by the state and Industry standard, reasonable product design, advanced production technology, technical content in the country's similar products in a leading position, with compact structure, low noise, high thermal efficiency, safe and reliable operation, high degree of automation, etc.

All environmental indicators are in line with the national class I regional environmental protection standards require excellent products recommended by the environmental protection department.

Our company holds A-class boiler manufacturing qualification, A1, A2 pressure vessel manufacturing qualification and mechanical and electrical equipment installation engineering professional contracting qualification, and passed the international ISO9001 2000 quality management system certification.

Our company strictly follows the ISO9001 international quality management system guarantee model, carries out quality management and quality inspection and control activities, and the product quality is stable. It was rated as “Contract-honoring and Promise-keeping Enterprise” by the Henan Provincial Administration of Industry and Commerce, “National Honest and Law-abiding Enterprise” by the Ministry of Agriculture, and was included in the member unit by the China Quality and Technical Supervision Association, and has obtained a number of patented technologies.
