Zinc Lock Finish Electronic Magnetic Lock Optional Signal Feedback And Buzzer

Good Quality 280KG 600LBS EM Electronic Magnetic Lock For Access Control System Optional Signal Feedback And Buzzer

1. Collinear Load Test 280kg,600pounds.

2. Dual Voltage 12 or 24 VDC(optional).
3. The Standard Voltage is 12VDC when Finished.
4. MOV Provides Reverse Current Protection.
5. Anti-Residual Magnetism Designed.
6. High Strength Material,Anodized Aluminum Housing.
7. Design without Mechanical Failure.
8. Increase the holding Force,Dual Insulative Housing.

Model NO.	XM-M280

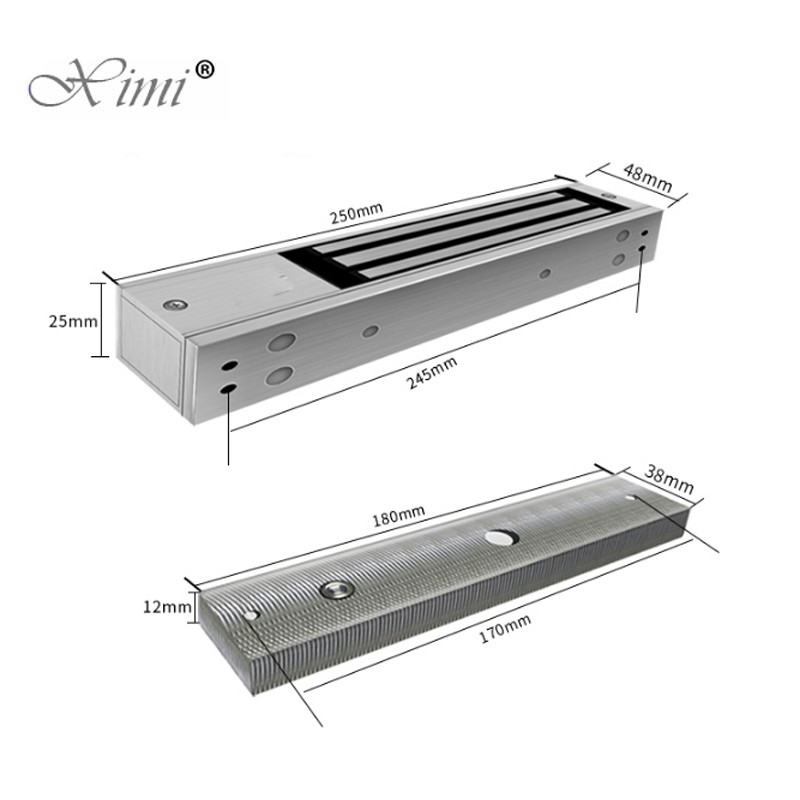

Size	250Lx48Wx25H(mm)
Armature Plate Dimension	180Lx38Wx12H(mm)
Holding Force	280kg(600Lbs)
Input Voltage	12 or 24VDC
Current	12V/500mA or 24V/250mA
Suitable	Wooden door , Glass door ,Metal door , Fireproof door
LED	Red indicates the door is unlock,Green indicates the door is lock
Door status signal output	NO,NC,COM
Surface Temp	≤+20℃
Operating Temp	-10~+55℃(14-131F)
Humidity	0~90%(non-condensing)
Cover Finish	Anodized aluminum/Stainless Steel
Lock Finish	Zinc
Armature Plate Finish	Zinc
Weight	2KGS
