Multifunction Small Rfid Reader Olid Epoxy Potted External Buzzer Control

Categories RFID Card Reader
Place of Origin: Guangdong, China (Mainland)
Brand Name: XIMI
Model Number: KR100
Price: Deliberation
MOQ: 1PC
Certification: CE, FCC, ROHS
Delivery Time: 1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated
Payment Terms: L/C D/A D/P T/T Western Union MoneyGram
Supply Ability: 1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated
Card Type: RFID Or Mifare card
Output Format: Wiegand 26,RS485/232
Color: Black
Power supply: DC5~16V
Dimension: 116*75*17.3 mm
Communication Distance: WG≤100M,RS485≤1200M
Packaging Details: 1pc/box, 10pcs/carton
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

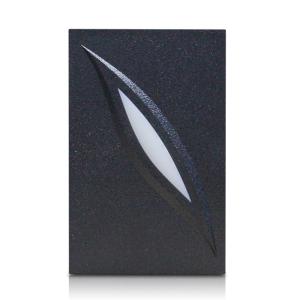

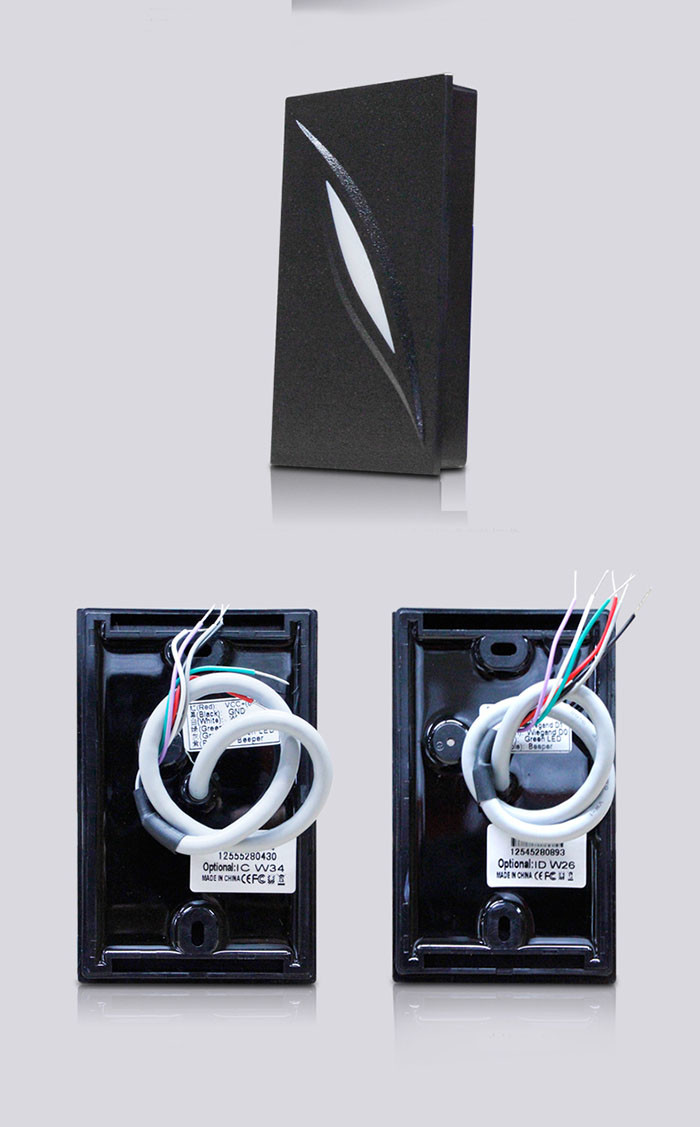

Multifunction Small Rfid Reader Olid Epoxy Potted External Buzzer Control

ZKteco RFID Card reader Waterproof IP65 Smart 125KHz Wiegand Access Control Door Card Reader

1. 125KHz Proximity /13.56MHz Card Reader
2. Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
3. 26/34bit Wiegand (default)
4. External LED Control
5. External Buzzer Control
6. Indoor / Outdoor Operation
7.Solid Epoxy Potted
8. Waterproof IP65
9. Reverse Polarity Protection
Read RangeUp to 5 - 10CM
Reading Time (Card)<=300ms
Power / CurrentDC 6-14V / Max.70mA
Input Port2ea (External LED Control, External Buzzer Control)
Output Format26/34 bit Wiegand (default)
LED Indicator2 Color LED Indicators(Red and Green)
BeeperYes
Operating Temperature-20° to +65°C
Operating Humidity10% to 90% relative humidity non-condensing
ColorBlack
MaterialABS+PC with texture
Dimension(W x H x T)mm116*75*17.3
Weight120g
Index of ProtectionIP65


Kr202 Ip65 125Khz Rfid Card For Access Control System And Connect With C3 Access Controller Keypad Card Reader
