Metal Smart Standalone Door Access Control System Pin Door Access Control System

IP65 Waterproof RFID And Pin Door Access Control System Standalone Metal Smart Card Reader

1. The excellent design, noctilucent keyboard , silver plating, fashion style.
2. The multi-function equipment, can use as WG26 card reader.
3. The high and low temperature environment to use..
4. The storage capacity of 3000 user card, 3000 user password.
5. Open three ways: card, password. Card and password.
6. Ultra-low power consumption: Standby current is less than 30 ma.
7. Noctilucent keyboard: Be able to operate the keyboard at night.
8. Large capacity of users: support 3000 users.
9. Independent password
10. Change password: The user can modify the code itself.
11. Identify speed: Swipe to open the door of time is less than 0.1 S.
12. Weigand output: with weigand output interface, can output Wg26 card number or Wg34 number keys.
13. Delete cards: When the card lost, It is available to use the keyboard to remove, and eliminate potential safety problems.
14 The output short circuit protection: Electric lock or alarm output short circuit within the 100 mu S output will be automatically closed.

1. Capacity :3000/10000
2. Card Type:RFID Or Mifare card

3. Work distance:1-15cm

4. Identify speed:<=1s
5. Work voltage:12VDC
6. Work currency:<1.5A
7. Work temperatrue:-10-60
8. Relative humidity:20%RH-80%RH
9. Unlocking ciper:1 Group
10. Unlocking ways:Card ,pin ,card +pin 11. Weigand: input
12. Weigand reader:1

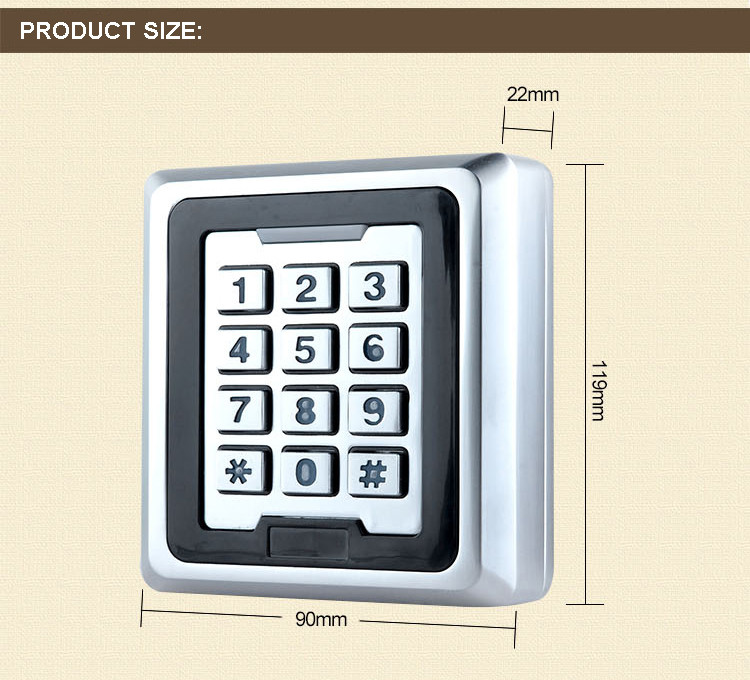

13. Size:112*90*20mm
