Low price ornamental double loop wire fence

Low price ornamental double loop wire fence

Low price ornamental double loop wire fence
Low price ornamental double loop wire fence
Categories BRC Wire Fence Panels
Brand Name: LNF-BRC Wire Fence
Model Number: Top And Bottom Bended
Certification: ISO
Place of Origin: American ,Australia ,Canadan
MOQ: 500 liner meter
Price: 16.68$ per liner meter
Payment Terms: TT30% deposit balance 70% at sight of finished products
Supply Ability: 10000 liner meters
Delivery Time: 7 work days
Packaging Details: All metal Pallets
Materials: Q235 steel
Color: Any Ral Color
Treatment: Hot Dipped Glavanized,Powder Coated
Mesh Opening: 50mm x 50mm ,55mm x 55mm ,75mm x 75mm ,50mm x 100mm
Diameter: 4.00mm ,5.00mm ,6.00mm
Type: Weld
Warranty: 5 -25 years depand on the treatment
Main Market: Europea ,Middle East ,USA ,AU etc
Accessoires: Clamp and Post Caps etc
Customized: Available
Feature: Top And Bottom Circled Design
Application: Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence, 868 Fence
Trade Mark: N/M
Sample: Free but pay freight cost
Top Type: Round Circle
Nickname: Double Loop,Double Circled ,Double Ring ,Wire Fence
Contact Now
Company Info.
Top Fencing Co.Limited
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Low price ornamental double loop wire fence

Low price ornamental double loop wire fence

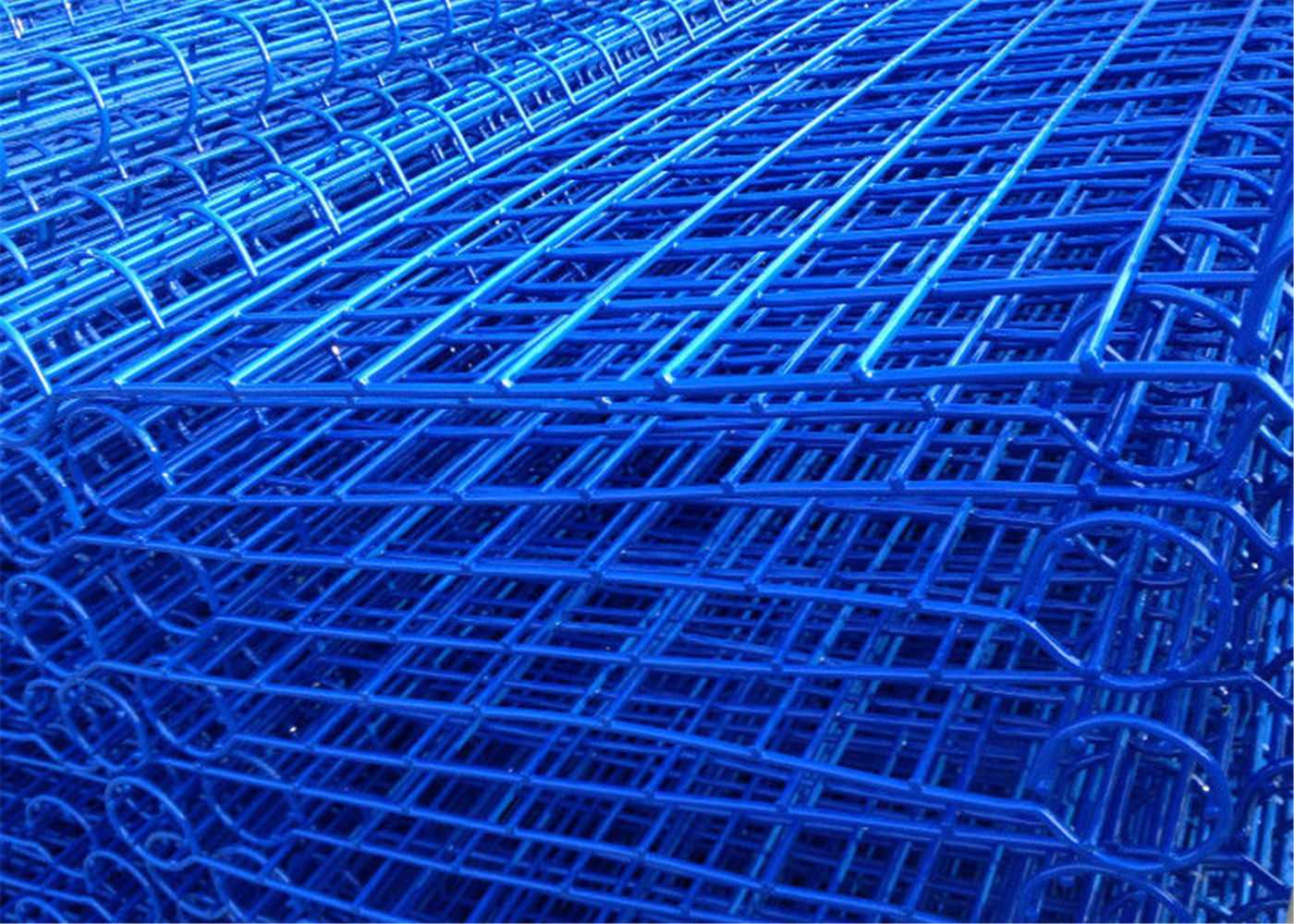

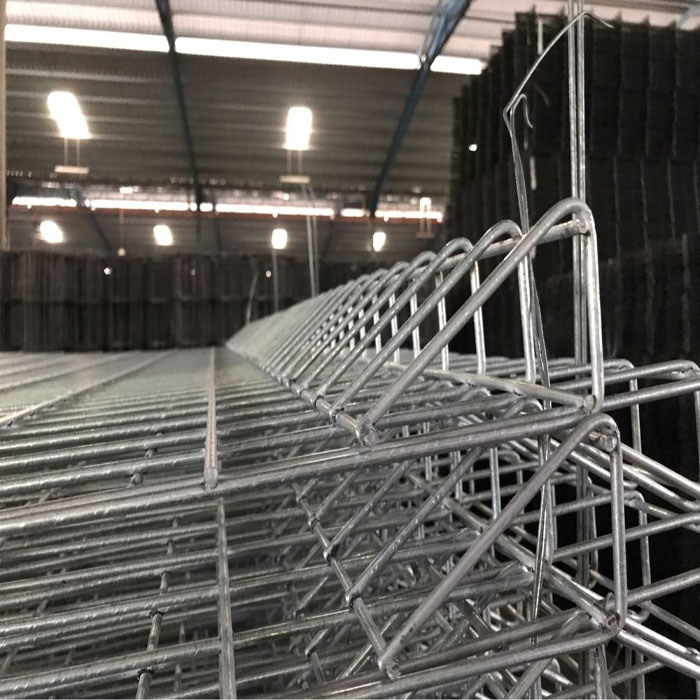

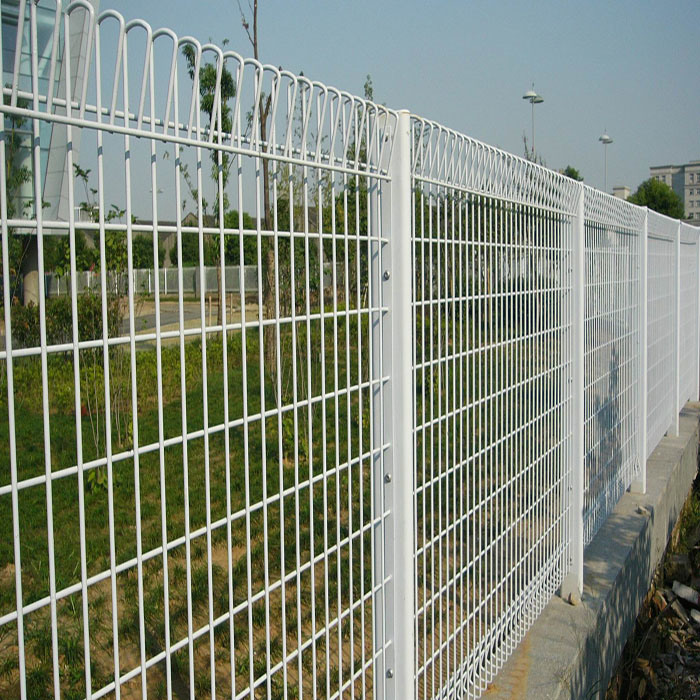

BRC roll top fence or double loop wire is a mesh panel fence system that has a rolled top for enhanced safetyand rigidity.The panels have an attractive, unique and "user friendly" closed beam section located along the top and bottom edge of the panel, with no sharp or raw edges.

Ornamental Double Loop Circle Wire Mesh Brc Garden Fence
Ornamental Double Loop Circle Wire Mesh Brc Garden Fence
Surface Treatment

1>Hot dip galvanized after welded (zinc thickness: 280-500g/m2)
2>Electric galvanized then PVC coated
3>Electric galvanized then powder coated
Ornamental Double Loop Circle Wire Mesh Brc Garden Fence

Ornamental Double Loop Circle Wire Mesh Brc Garden Fence
Ornamental Double Loop Circle Wire Mesh Brc Garden Fence

Specification
Brc roll top and bottom fence panel
Wire diameter
3.5-6.0mm
Mesh size
50x100mm,75x150mm,50x200mm
Height
1030mm, 1230mm, 1530mm, 1830mm, 2030mm,2430mm
Length
2000mm,2500mm
Surface treatment
Powder coated, Pvc coated ,Hot dipped galvanized
Ornamental Double Loop Circle Wire Mesh Brc Garden Fence
Fence Post Type
(1)Square post(mm): 40 x 40; 50 x 50; 60 x 60; 80 x 80; thickness: 1.2mm, 1.5mm, 2.0mm, 2.5mm
(2)Round post(mm): 38, 48, 60, 75; thickness: 1.2mm, 1.5mm, 2.0mm, 2.5mm
(3)Peach post(mm): 50 x 70, 70 x 100; thickness: 1.2mm
(4) I shape post(mm): 70 x 44; thickness: 1.5mm

Post Installation
a. be bury into ground
b. with steel flange base

Ornamental Double Loop Circle Wire Mesh Brc Garden Fence

Ornamental Double Loop Circle Wire Mesh Brc Garden Fence
Ornamental Double Loop Circle Wire Mesh Brc Garden Fence

Ornamental Double Loop Circle Wire Mesh Brc Garden Fence
Application :
Transport Infrastructural
  • Highway
  • Isolation for Road
  • Airport
Corporate / Residential Sector
  • Residential
  • Complex
  • Pool
  • Terminal
Leisure Amusement Sector
  • Parks
  • Sidewalks
  • Playground
  • Theme Park
Others Uses
  • Landscaping
  • Police Quarters
  • Garden
  • Car Park
  • Agriculture Farms
Ornamental Double Loop Circle Wire Mesh Brc Garden Fence
Mesh size:
50×100 mm, 50×150 mm, 50×200 mm, 75x100mm,100×100 mm, 100×200 mm ,etc.
Standard fence specification:
Mesh
Wire diameter
Surface Treatment
Panel Width
Folds NOS.
Height
Post height
50x200mm,
50x150mm
50x100mm
55x200mm
3.0mm,4.0mm
4.5mm, 5.0mm
Galvanized and
Electrostatic polyester coated or PVC dip coated
2.50m
2
630mm
1200mm
2
830mm
1400mm
2
1030mm
1500mm
2
1230mm
1800mm
2
1430mm
2000mm
2
1630mm
2200mm
Mesh
Wire diameter
Surface Treatment
Panel Width
Folds NOS.
Height
Post height
50x200mm,
50x150mm
50x100mm
55x200mm
3.0mm,4.0mm
4.5mm,5.0mm
Galvanized and
Electrostaticpolyester coated or PVC coated
2.50m
4
1400mm
2000mm
4
1600mm
2200mm
4
1800mm
2400mm
4
2000mm
2600mm
4
2200mm
2800mm
4
2400mm
3000mm
Fence post:
1) SHS post: 50x50mm,60x60mm,
2) RHS post: 60x40mm,80x40mm,
3) Round post: 48mm,60mm,75mm.
4) Peach post:50x70mm,60x90mm,70x100mm
Fence finish
Hot dipped galvanized
Galvanized and polyester powder spraying coated
Galvanized and powder dipped coated
Standard colours: RAL 6005 green, 9005 black,5010 blue, 3000 red, 9010 white
Other colours: All other RAL colours available.
Fence application:
Fencings for factories, warehouses, buildings and public utility facilities, such as schools, sports fields and sports stadiums, playgrounds, as well as private premises.
Fence packing:
1) pallet
2) bulk in the container.
