70w Adjustable Color Temperature LED Shadowless Operating Lamp With 184pcs Led Bulbs

Categories LED Surgical Lights
Brand Name: HFMED
Model Number: SY02-LED5 ACT
Certification: CE,ISO,SGS,FDA
Place of Origin: Shanghai,China
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 sets/month
Delivery Time: 5~7 days after receipt of payment
Packaging Details: In two wooden case
Illuminance: ≥140,000Lux
Color temperature: 3500±200K/4000±200K/4500±200K/5000±200K
Illuminance depth: 1050mm
CRI: 96Ra
Total power consumption: 70W
Total LED bulb quantity: 184pcs
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

70w Adjustable Color Temperature LED Shadowless Operating Lamp With 184pcs Led Bulbs

70watt adjustable color temperature LED shadowless operating lamp with 184pcs led bulbs


SY02-LED Serice Shadowless Operation Lamp is applicable to lighting for operations in the operation rooms of medical facilities.

There shall be no electromagnetic or other interferences with the equipment and other devices.

The lamp is featured with the fully closed streamline single/double lamp block structure, meeting the requirements of disinfection and high level laminar flow in the operation room; the LED based integrated reflective optic system, providing deeper illumination; and the color temperature compensation technology, enhancing the color rendering properties, to make it more suitable for cerebrosurgery and other large complicated operations.


How about the detailed specification?

Technical parameterDetails
Illuminance≥140,000Lux
Color temperature3500±200K/4000±200K/4500±200K/5000±200K
Color reduction index96Ra
Illuminance depth1150mm
Total irradiance510W/m²
Size of light field200~350mm
Lamp head diameter700mm
Rated power of bulb3.2V/1W
Service life of illuminant50,000h
Power supply voltageAC110-240v,50/60Hz
Total power consumption70W
Total LED bulb quantity184pcs
Lowest height of installation2900mm
Warranty2 years

How about the package?

PackingWooden case
Packing sizeDouble Head:113*109*45cm
Other:110*72*42cm
WeightDouble Head: GW:36KG NW:27KG
Other: GW:49KG NW:38KG

OPERATION OF THE SY02-LED5 SINGLE LUMINAIRE

The LED Lighting System uses an innovative lamp, the LED (light-emitting diode).

Average service life

LEDs are superior to conventional halogen or discharge lamps in that they have a very long service life.

Whereas conventional lamps generally have to be changed after 600 to 5,000 hours, LEDs have an average service life of approx.30,000 hours.

Extremely fail-safe

By employing a large number of LEDs the light head is extremely fail-safe.

Color temperature adjustment

Color temperature: 4,500 K

Switching on the light head

1. Switch on main switch in OR.

If the light head does not light up:

Press the non-sterile ON / OFF button 3

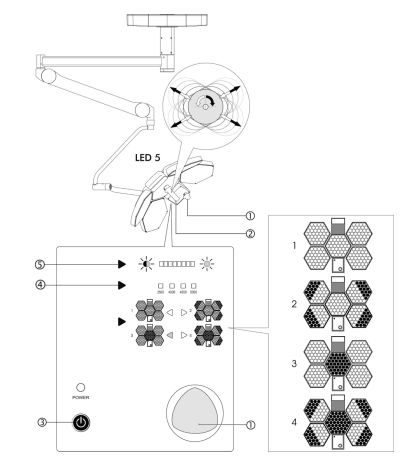

① adjustment of the luminous field

② Sterile hand grip (for sterile positioning and adjustment of the luminous field)

③ ON / OFF button

④ adjust the colour temperature

⑤ arrow buttons:for setting the illuminance
