Brand Name: | LuHang |
Model Number: | LH212 |
Certification: | CCS/BV/ABS/SGS |
Place of Origin: | Qingdao, China |
MOQ: | 1 Unit |
Price: | To be negotiated |
Payment Terms: | T/T, L/C |
Supply Ability: | 200 Units Per Month |
Delivery Time: | 10-15 work days |
Packaging Details: | Folded and Packed on Pallet |
Material: | Natural Rubber |
Length: | 12m / 15m / 18m / 20m / 24m |
Size: | Depend On Your Need |
life span: | 6~12years |
Standard: | ISO14409 |
Color: | Black |
Diameter: | 0.8 /1.2 / 1.5 / 1.8 / 2.0 / 3.0 / 4.0m |
Name: | Cassion moving lifting airbag |
Part: | Marine Airbag |
Highlight: | Inflatable Marine Airbags, Airbags For Shipping Containers, Ship Docking Marine Rubber Airbag |

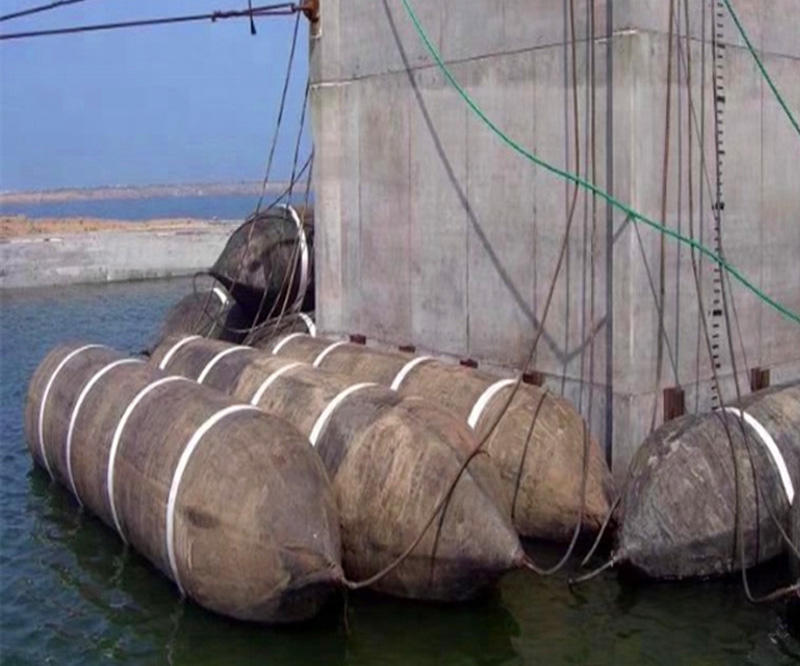

Application: | Salvage,heavy Lifting,ship Launching,floating,landing |
Packing: | Standard Package |
Logo: | Customized |
Feature: | Strong, Air Tight, High Safety |
Length:: | 12 M / 15m / 18m / 20m / 24m Customize |
Company Info. |
Qingdao Luhang Marine Airbag and Fender Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |

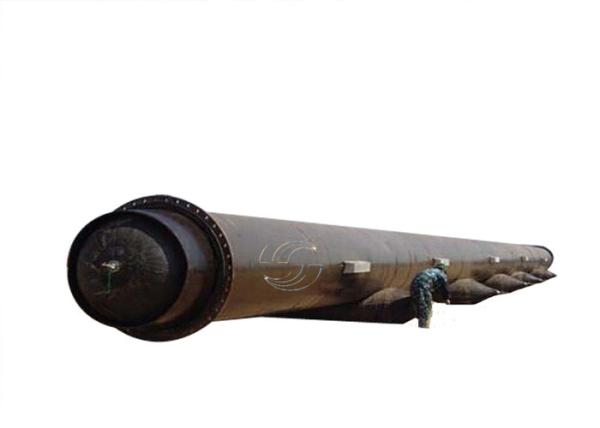

Floating Lift Rubber Air Bags Length Customized Pipline Blocking Airbag
Products introduction
Airbags are usually cylindrical in shape with hemispherical heads at both ends. They are made of reinforced rubber layers and have high load capacity. This method can easily be used in all types and sizes of vessels, for water and floating.
Performance Calculation Principle of Airbags
The bearing capacity of marine airbags was calculated based on the
working pressure, contact area. Herein, working pressure was got
upon the burst pressure and safety working factor.
Because of the flexibility of marine airbag the contact area will
be affected by some terms which include the carried ship condition,
the different position from gravity center during the process of
ship launching and pulling. So the bearing capacity of airbags will
vary as well as the contact area.
Specification:
Diameter | Safe working pressure | Work high | The bearing capacity | |
KN/M | T/M | |||
D=1.0M | 0.17MPa | 0.6m | 106.93 | 10.93 |
0.5m | 133.61 | 13.62 | ||
0.4m | 160.3 | 16.34 | ||
D=1.2M | 0.14MPa | 0.7m | 110.07 | 11.22 |
0.6m | 132.04 | 13.46 | ||
0.5m | 154.02 | 15.7 | ||
0.4m | 175.99 | 17.94 | ||
D=1.5M | 0.11MPa | 0.9m | 103.79 | 10.58 |
0.8m | 121.06 | 12.34 | ||
0.7m | 138.32 | 14.1 | ||
0.6m | 155.59 | 15.86 | ||
0.5m | 172.85 | 17.62 | ||
D=1.8M | 0.09MPa | 1.1m | 99.08 | 10.1 |
1.0m | 113.21 | 11.54 | ||
0.9m | 127.33 | 12.98 | ||
0.8m | 141.46 | 14.42 | ||
0.7m | 155.59 | 15.86 | ||
0.6m | 169.71 | 17.3 |
![]() |
