Induction Electric Aluminium Melting Furnace Easy Operation Light Weight

Categories Induction Melting Furnace
Brand Name: Lanshuo
Model Number: LSZ-70
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: USD4000---10000 / set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per year
Delivery Time: 5-10 working days after receiving advanced payments
Packaging Details: wooden boxes
Type: Induction Melting Furnace
Power: 70kw
Input Current: 110A
Voltage: 3-phase 380v, 50/60hz
Oscillation Frequency: 1-15KHZ
Connecting Wire: 50mm2
Control Switch: 3*150A
Ground Wire: 2mm2
Cooling Water Pressure: ≥0.2MPa
Cooling Water Flow: ≥15L/Min
Color: Customizable
Size: 460*270*450mm/550*300*500mm
Weight: 73kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

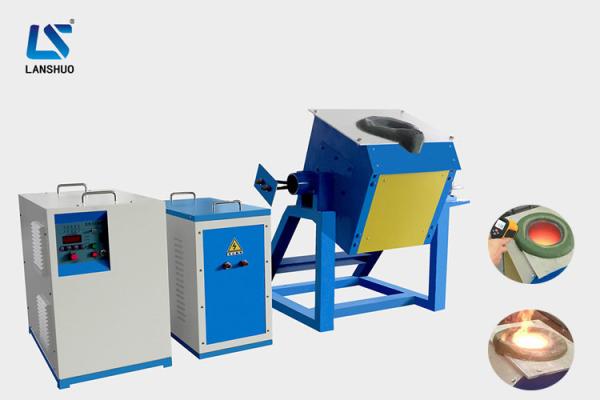

Induction Electric Aluminium Melting Furnace Easy Operation Light Weight

LSZ-70 70kw Electric Aluminium Melting Furnace


1. Electric Aluminum Induction Melting Furnace Feature:

1. Very easy to install and operate, Quickly study.
2. Ultra-small size, light weight, portable, occupies less than one square meter.
3. 24 hours uninterrupted smelting capacity.
4. Energy saving.
5. The furnace is to facilitate the replacement of different weights, different materials, different furnace way in order to accommodate each Kind smelting requirements.
6. The use of ultra-small frequency induction heating power supply frequency power, Its totally different from traditional furnace.
7. Heating through heat resistance, temperature uniformity.
8. The intermediate magnetic field on the molten metal with a magnetic stirring effect, and beneficial to ingredients are uniformly.
9. According to the recommended maximum smelting equipment and the amount of time each furnace smelting 20-60 minutes.


2. Brief Introduction of Electric Aluminium Induction Melting Furnace:

Medium frequency induction melting furnace is an induction heating machine. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.


3. Melting Capacity of Electric Aluminium Induction Melting Furnace:

ModelPowerMelting Capacity
steel, stainless steelcopper, gold, silveraluminum, aluminum alloy
LSZ-1515kw3kg10kg3kg
LSZ-2525kw5kg20kg5kg
LSZ-3535kw10kg30kg10kg
LSZ-4545kw18kg50kg18kg
LSZ-7070kw25kg100kg25kg
LSZ-9090kw40kg120kg40kg
LSZ-110110kw50kg150kg50kg
LSZ-160160kw100kg250kg100kg

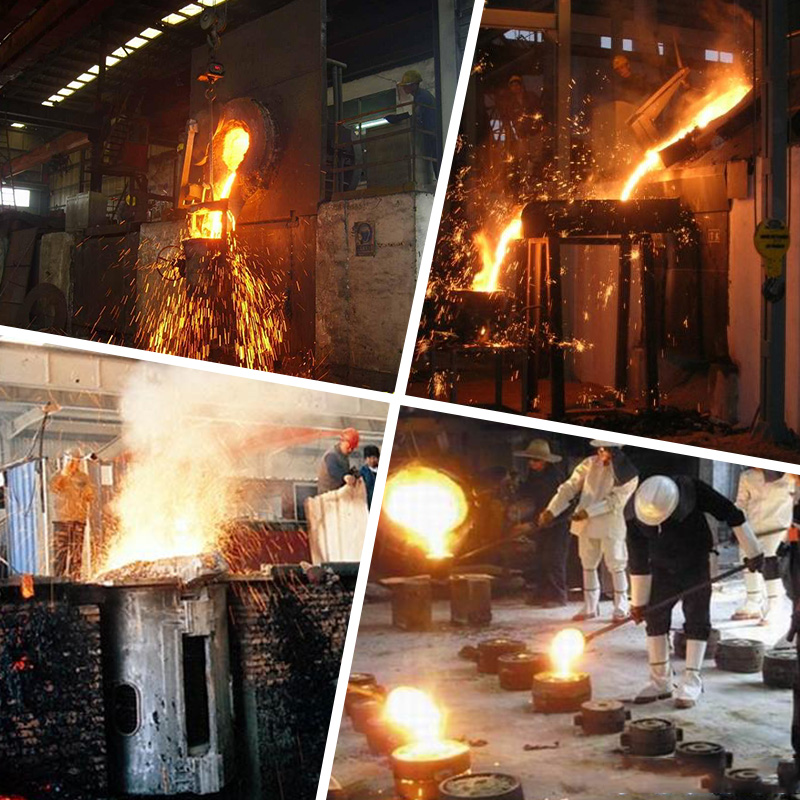

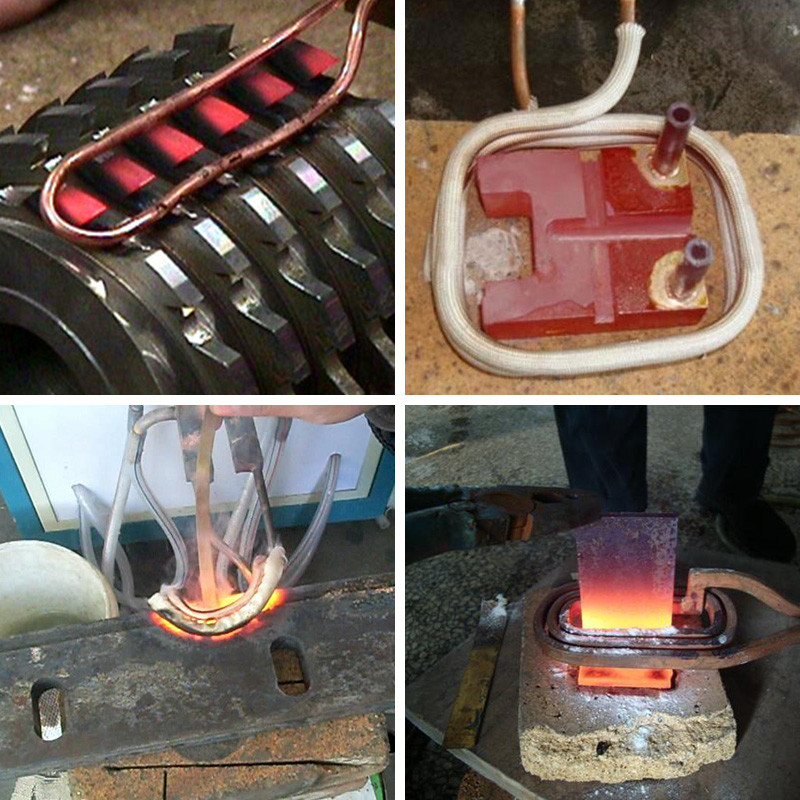

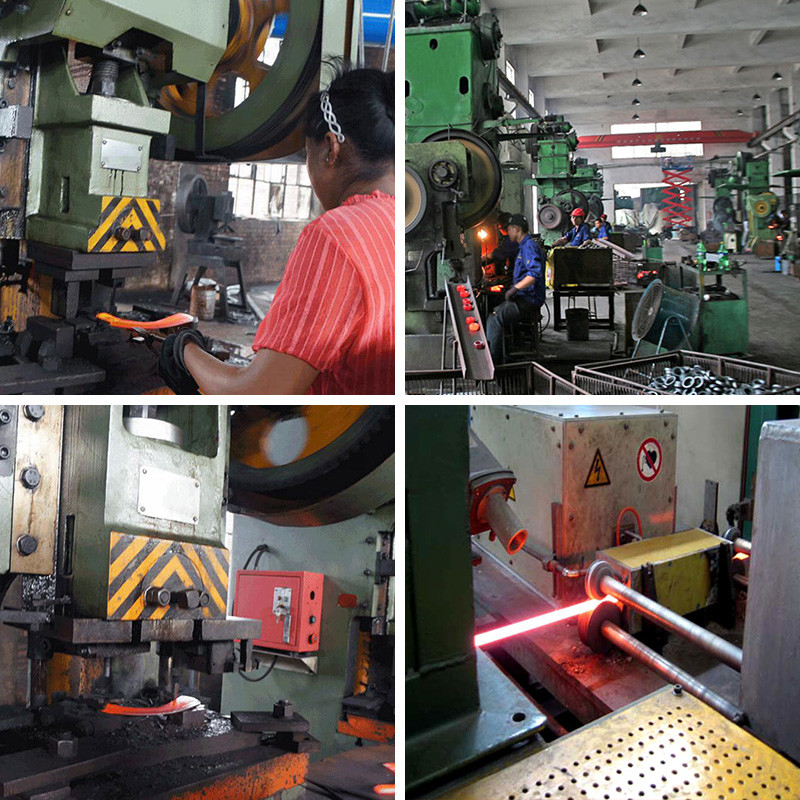

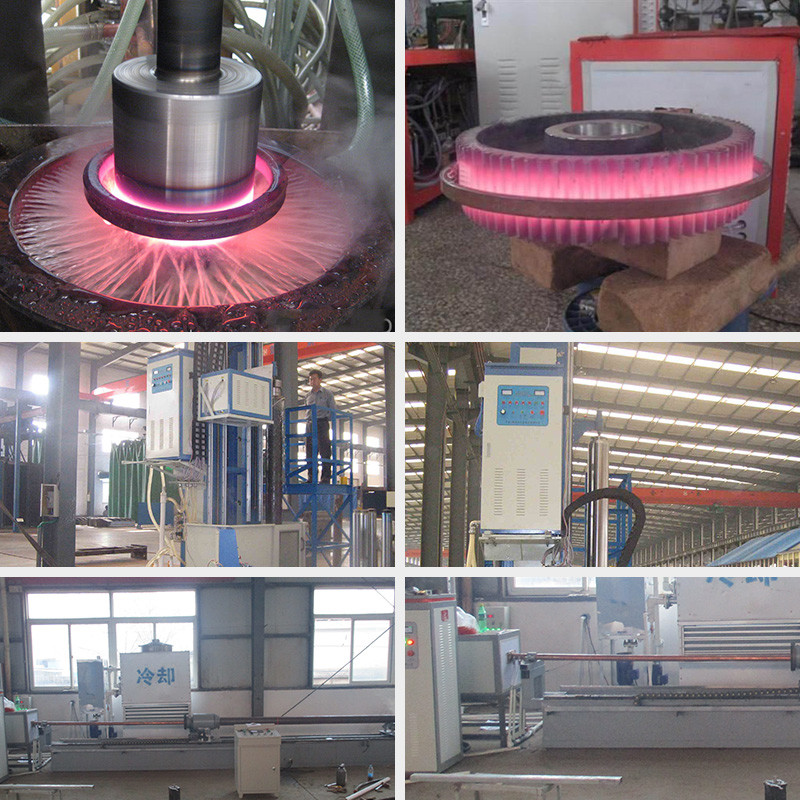

4. Electric Aluminum Induction Melting Furnace Application:

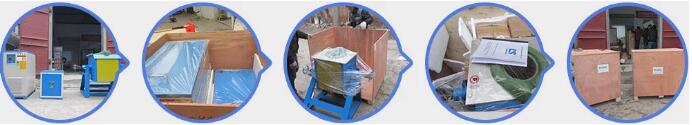

5. Packaging of Electric Aluminum Induction Melting Furnace:

6. Company Brief Introduction :

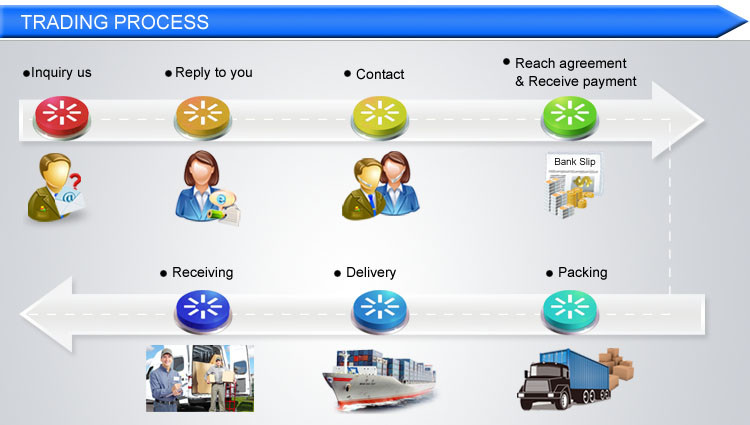

7. Trade Process:

8. Related Products:

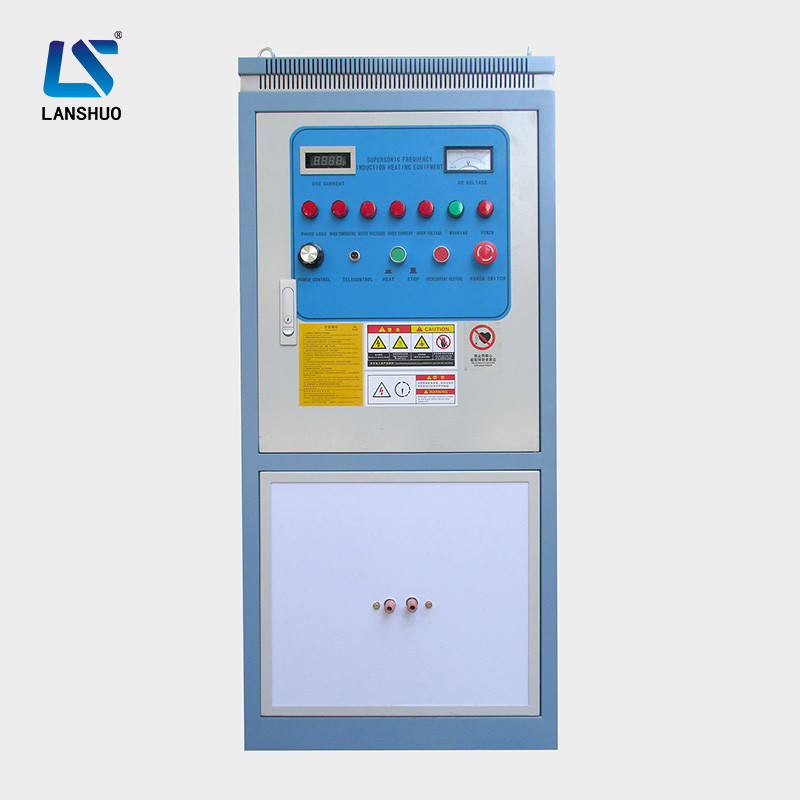

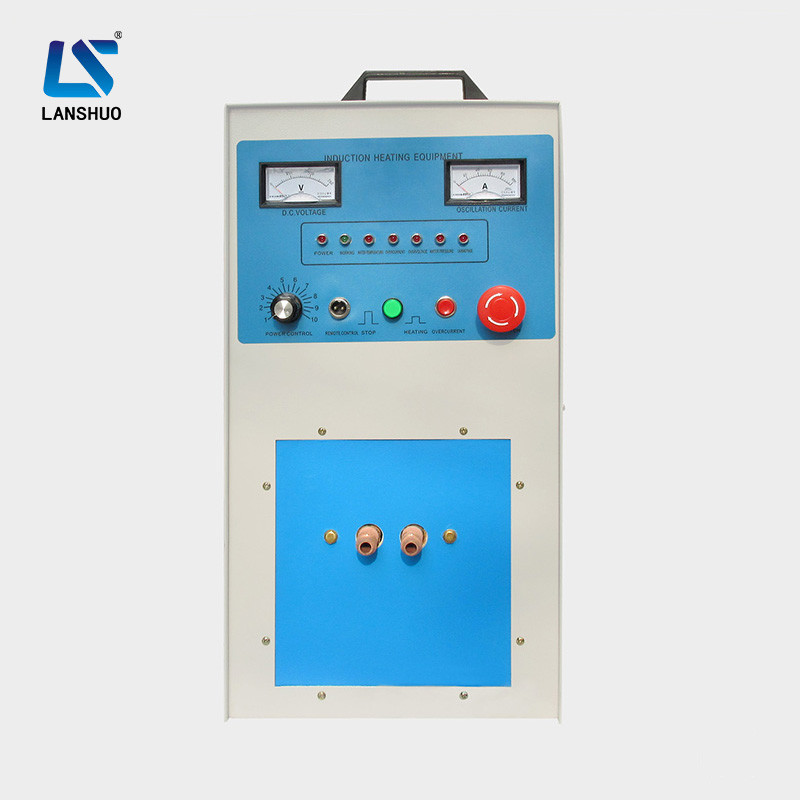

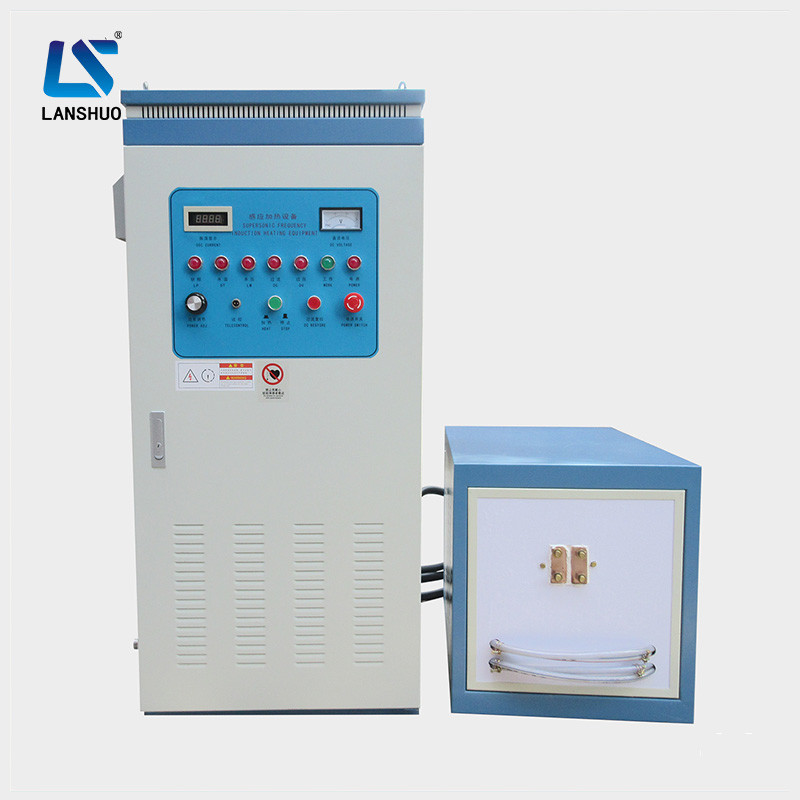

Induction Heating

Machine

Induction Quenching

Machine

Induction Brazing

Machine

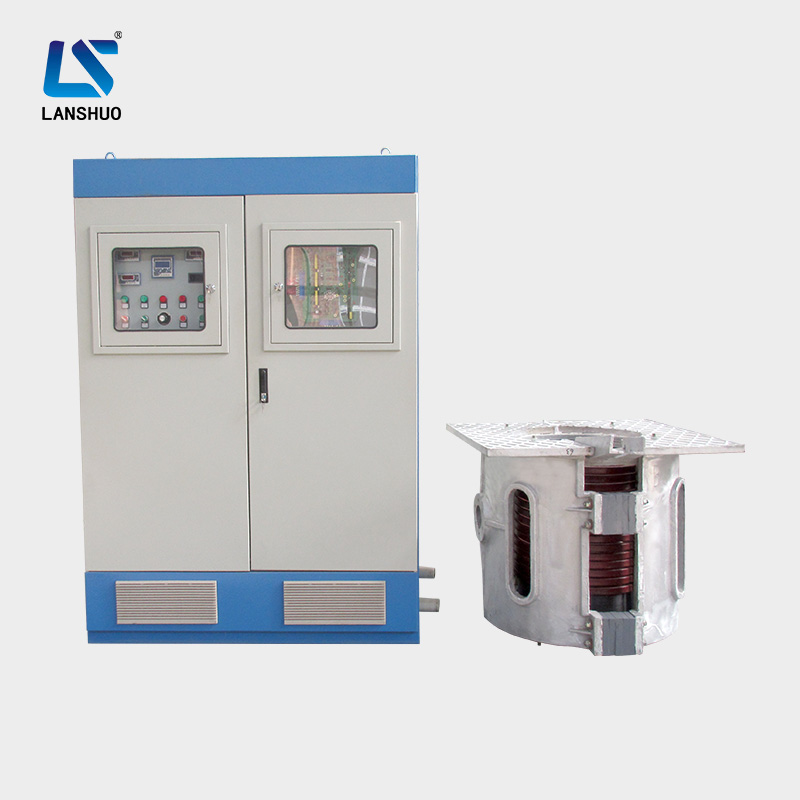

Large Melting Furnce
