Heat Exchanger Steel Tube

Place of Origin:

Zhejiang, China (Mainland)

Certification:

ISO 9001 ISO14001 TS16949

Price:

negotiable

MOQ:

negotiable

Standard:

ASTM, ASTM A213

Standard2:

ASTM A210-1996

Grade Group:

A53-A369

Grade:

A210

Thickness:

0.5 - 12 mm

Section Shape:

Round

Outer Diameter(Round):

6 - 127 mm

Secondary Or Not:

Non-secondary

Application:

Boiler Pipe

Technique:

Cold Drawn

Surface Treatment:

oil

Special Pipe:

boiler tubes

Alloy Or Not:

Non-alloy

Product name:

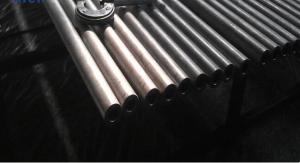

ASTM A210 Seamless Medium Carbon Steel Boiler And Superheater Tubes

Keywords:

SA 210 Gr.a1 Seamless Boiler Tube

ASTM A210 Seamless Medium Carbon Steel Boiler And Superheater Tubes

ASTM A210 Seamless Medium Carbon Steel Boiler And Superheater Tubes

ASTM A210 Seamless medium carbon steel boiler and superheater tubes

Applications: for Boilers,Superheaters,Steam linepipes of boilers

Size range: O.D.:12.7-127mm W.T.:1-15mm L: according to customer requirement

Carbon steel marterial sa 210 gr.a1 seamless boiler tube condenser tubes

Steel Grade and Chemical Compositions:
Grade	C	Mn	P	S	Si
A-1	≤0.27	≤0.93	≤0.035	≤0.035	≥0.10
C	≤0.35	0.29-1.06	≤0.035	≤0.035	≥0.10

Mechanical properties:

Grade	Yield Point Mpa(ksi)	Tensile Strength Mpa(ksi)	Elongation
A-1	≥255(37)	≥415(60)	≥30%
C	≥275(40)	≥485(70)	≥30%

Tolerance for OD and WT(SA-450/SA-450M)
OD in(mm)	+	-	WT in(mm)	+	-
<1''(25.4)	0.10	0.10	≤1.1/2''(38.1)	20%	0
1''~1.1''(25.4~38.1)	0.15	0.15	>1.1/2''(38.2)	22%	0
>1.1/2''~<2''(38.1~50.8	0.20	0.20
2''~<2.1/2''(50.8~63.5)	0.25	0.25
2.1/2''~<3''(63.5~76.2)	0.30	0.30
3''~<4''(76.2~101.6)	0.38	0.38
4''~<7.1/2''(101.6~190.5)	0.38	0.64
>7.1/2~9''(190.5~228.6)	0.38	1.14

Surface Condition:

Pickling or shot blasting, Passivated, Black Phosphating.

Tests and Inspection:

Flattening Test

Flaring Test

Hardness Test

Hydrostatic or Nondestruction Electric Test ( Eddy Current and Ultrasonic Testing)

Carbon steel marterial sa 210 gr.a1 seamless boiler tube condenser tubes

heat exchangestainless steel pipe

QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample of Carbon steel marterial sa 210 gr.a1 seamless boiler tube condenser tubes for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us

TORICH is an enterprise that has been producing precision steel pipes and steel pipe processing for over 20 years, with a factory area of approximately 20000 square meters

The main products produced are carbon steel and alloy steel grade seamless steel pipes, welded precision steel pipes, DOM steel pipes, seamless and welded stainless steel pipes。And our separate workshop also produce machined cast iron parts and cast steel parts, as well ad customized precision parts and difficult precision parts. Our strength is with in our ability to produce metal parts of higher quality control in an integrated process, from mapping and mould design, to casting, forging, machining, heat treatment, surface treatment, assembly and testing.

TORICH team is familiar with the quality requirements and process standards of precision partssteel tubes of leading industrial companies at home and abroad,and management level, and constantly looks for like-minded excellent suppliers, which enable us to reduce the have a comparative advantage over many of our competitors.

In the field of processing, TORICH has 18 sets 4-axis/3-axis CNC machines and over 30 sets of CNC lathers. The machining center is capable of machining 1100x600x800mm parts and the CNC lathes are capable of processing 550x1500mm parts. We specialize in machining stainless steel, alloy steel and other hard metals, as well as carbon steel, aluminium, and copper, with a dimensional accuracy of 0.01mm.

As of 2023, TORICH has perfectly cooperated with more than 50 countries, including Russia, India, Australia, the United Kingdom, France, the United States, Canada, Brazil, and Egypt. Quality and reputation are always our first concerns, with the aim of well serving every customer who trusts in us. TORICH looks forward to partnering with customers all over the world.

Our steel pipes cover the following ranges:
Seamless Precision Steel Pipes
Welded Precision Steel Pipes, with DOM production
Seamless Heat Exchanger Steel Pipe
Seamless Boiler Steel Pipes
Seamless Structural Steel Pipes
Seamless Mechanical Steel Pipes
Seamless Alloy Steel Tubes & Pipes
Seamless Stainless Steel tubes
Welded Stainless Steel Tubes
Seamless Stainless Steel Tubes & Pipes
Welded Stainless Steel Tubes & Pipes
Seamless Carbon Steel Tubes & Pipes
Nickel Alloy Steel Tubes & Pipes

Products Application:
Oil Cylinders
Air Cylinder,
Automotive Cylinder Liners
Boilers, Pressure Vessels
Shell & Heat Exchangers
Jack Lifting
Telescopic Systems
Pneumatic Cylinders
Agricultural Machineries
