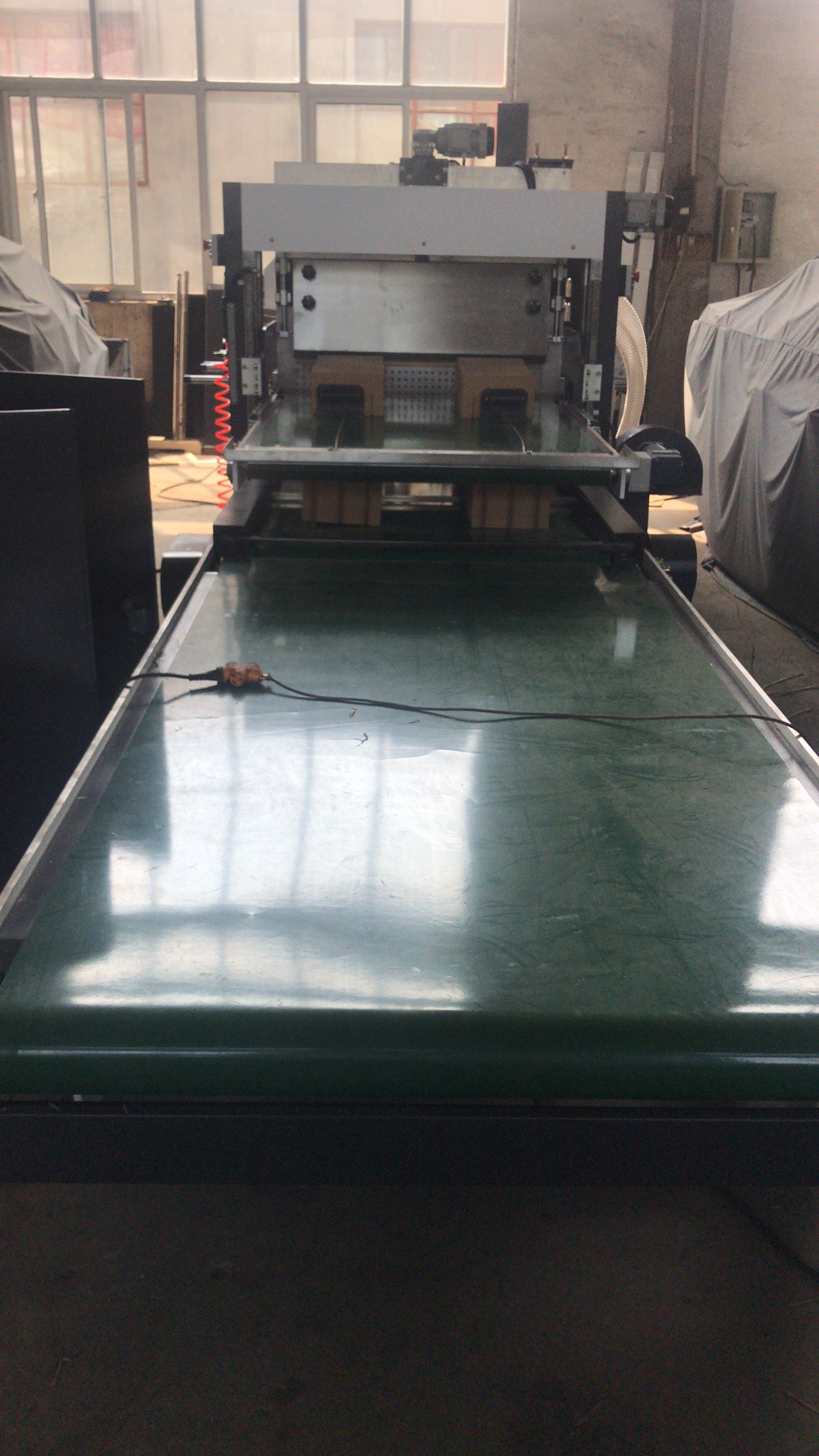

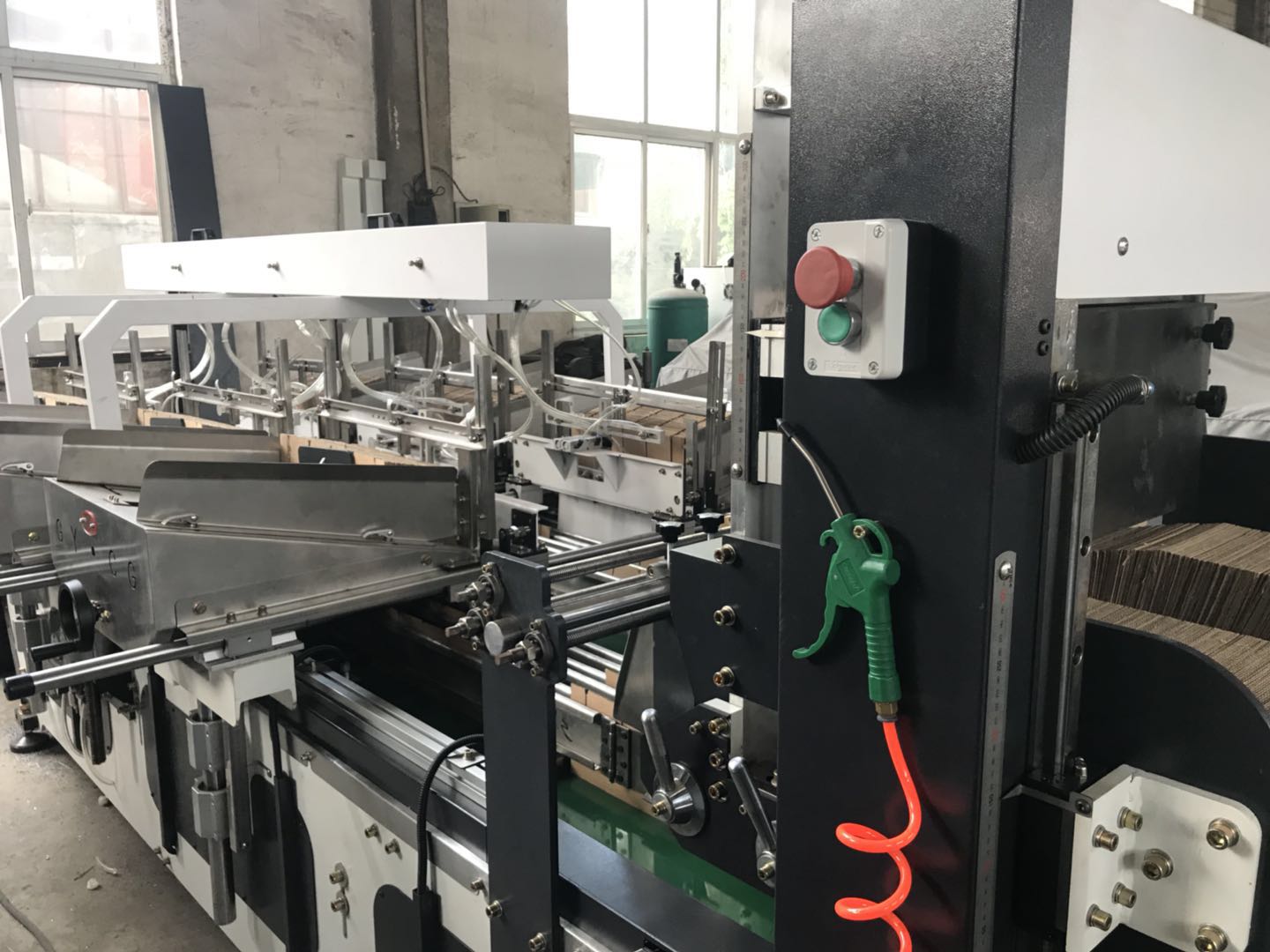

450-2L Cardboard Clapboard Assembler Assembly Machine Partition Slotting Machine

Categories	Partition Slotter Machine
Brand Name:	kspack
Model Number:	450-2L
Certification:	CE ISO
Place of Origin:	Hebei Province, China
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10 set per month
Delivery Time:	35-60 days
Packaging Details:	in skin ,in wooden , in container
name:	partition assembly machines
user:	Automatic inserting each kinds clapboard and cardboard block
Servo Motor:	Schneider
ksj450-3L size:	7.3×2.0×1.9 m
Total power:	7.5 kw
staff:	more than 100

Contact Now

Add to Cart

Company Info.

Hebei Jinguang Packing Machine CO.,LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Specification List

Item	Parts name	Qty	Remarks
1	Automatic inserting machine	1unit	Inserting : double-position; Sheets Composing: Decussation
2	Sheet Delivery	1 unit
3	Pneumatic System	1 set	customer prepare air pump

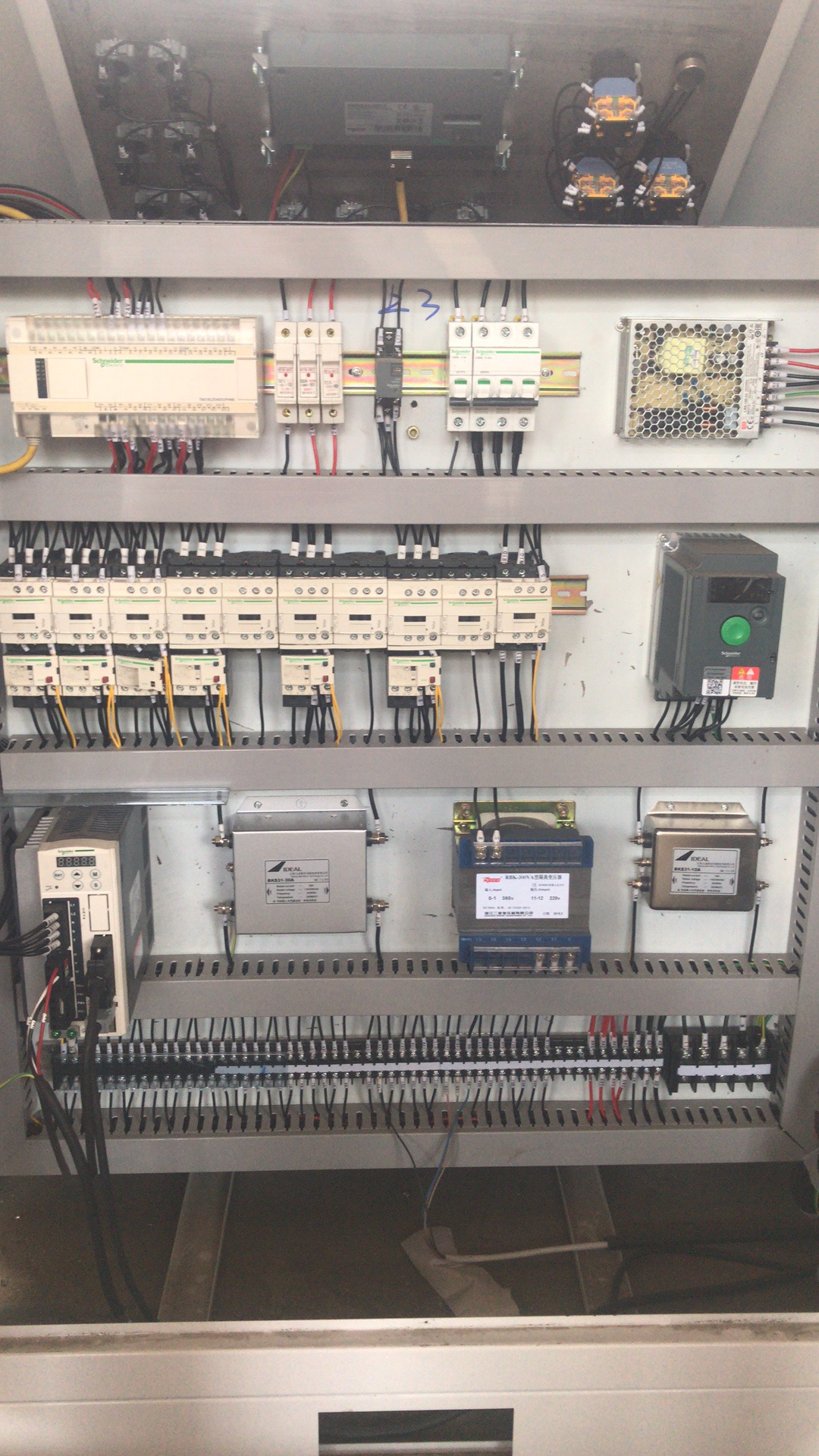

4	Electric System	1 set	PLC,human machine interface , Servo control

Partitions Form Sketch

* Lengthways and horizontal sheets do decussation inserting.

* Automatic inserting each kinds clapboard and block

Automatic cardboard assemble machine parts list:

Number	Name	Quantity	Remark
1	Auto insert cardboards device	1set	Cardboard output: double station Cardboard assemble: cross
2	Transport cardboard device	1set
3	Pneumatic system	1set	Air compressor machine ,customer prepare
4	Electrical equipment	1set	PLC,Servo system control

The technical parameter:

Name	Size	Data
Crosswise insertion width A	mm	KSJ 450-2 model
		120-700	Single out
		120-320	Double out
		KSJ 450-3model
		120-900	Single out
		120-420	Double out
Crosswise feeding cardboard length B	mm	120-450
Grating height C	mm	80-300
lengthways cardboard insertion spacing D	mm	20-250
Crosswise cardboard insertion spacing D	mm	KSJ 450-2 model
		50-115	2insert double out
		50-230	2 insert single out
		50-250	4 insert single out
		KSJ 450-3model
		50-110	3 insert double out
		50-225	3 insert single out
		50-128	6 insert single out
Cardboard slot width	mm	>cardboard thickness
Cardboard thickness	mm	1.5-8mm
