630mm/1+6Bobbin Skip Type Wire&Cable Stranding Machine For ACSR Conductor
1. Application
The skip stranding machine is used for stranding 1+6 structure
conductor. The conductor from 15 sqmm to 100 sqmm aluminum and
copper 1+6 conductor.
2. Structure
Bow type structure, totally 7 support boxes support 6 pairs of
stranding bows on each pair end. The bow material is carbon fiber,
which is durable. The machine is equipped with wire-break test
device for each payoff unit in each bow. When wire is broken, and
payoff bobbin will decrease the rotating speed, then the detector
will get the data, then the machine will stop automatically. This
will detect the 99% wire broken.
3. Technical parameters
| Model (Skip Stranding Machine) | JGB-630(500) | JGB-700 | JGB-800 | |
| Diameter of single wire | Copper | φ1.8-5 mm | φ2-5 mm | φ2.5-5 mm |
| Aluminum | φ2.0-5 mm | φ2.5-5 mm | φ3.0-5 mm | |
| Galvanized steel wire | φ1.0-4.0 mm | φ1.2-4.0 mm | φ1.5-4.0 mm | |
| Maximum stranded conductor OD | φ35-55 mm | φ35-55 mm | φ35-55 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 31.1-235.0mm | 31.1-235.0mm | 31.1-235.0mm |
| Max. Rotating Speed | 6 Bobbin Stranding Cage | 1000 r/min | 800 r/min | 700 r/min |
| Capstan | Capstan Wheel Diameter | 1200 mm | 1400 mm | 1400 mm |
| Maximum Haul-off Force | 10 T | 10 T | 12 T | |
| Motor Power | 37 KW | 45 KW | 55 KW | |
| Bobbin Size | 630*475*127 | 710*530*127 | 800*600*127 | |
| Center Payoff Bobbin | 630*475*127 | 710*530*127 | 800*600*127 | |
| Take-up Bobbin | 1250*950*80 | 1600*1180*80 | 1600*1180*80 | |
| Maximum Haul-off Linear Speed | 235 m/min | 200 m/min | 170 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm | |

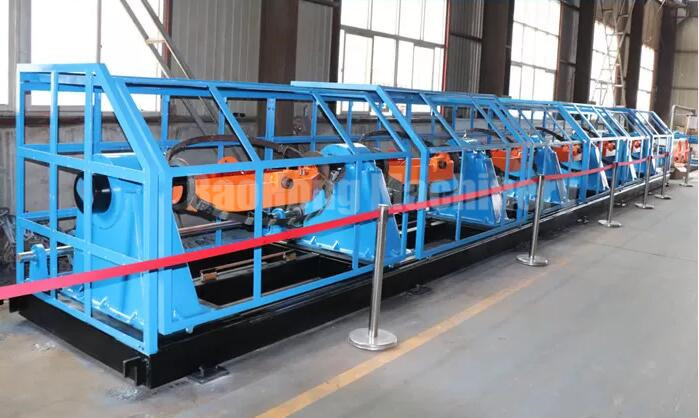

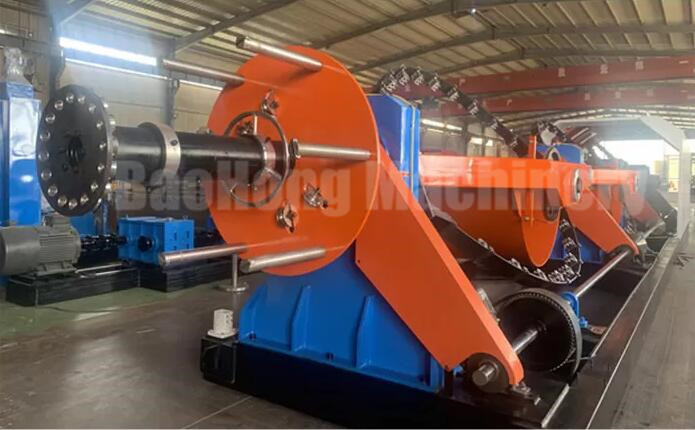

4. Photo

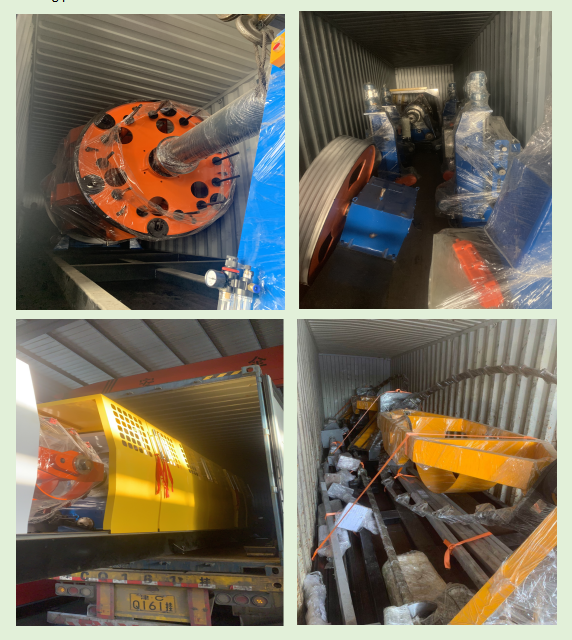

5. Packing photo

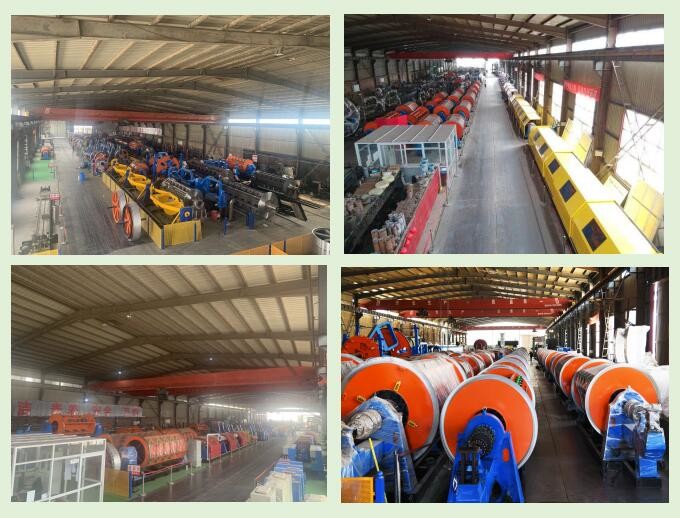

6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area
of 10000 square meters, production workshop 8000 square meters. Our
company has 60 employees, including 10 R & D staffs. Annual output
value is over 10 million dollars at present,and has developed into
one of the most important Stranding Machine Manufacturer in China.
|
