Brand Name: | SUNTEX |
Model Number: | TGF880-AC225-3008 |
Place of Origin: | China |
MOQ: | 20 rolls |
Payment Terms: | T/T; L/C, Paypal... |
Supply Ability: | 500000sqm/month |
Delivery Time: | 5-20 days |
Packaging Details: | Each roll in carton, several cartons in a pallet |
Color: | Black |
Application: | Welding barriers |
Thickness: | 0.043'' |
Working temperature: | 550 Degree C |
Treatment: | Acrylic treated |
Flame retardant: | Yes |
Company Info. |
Suntex Composite Industrial Co.,Ltd. |
Verified Supplier |
View Contact Details |
Product List |

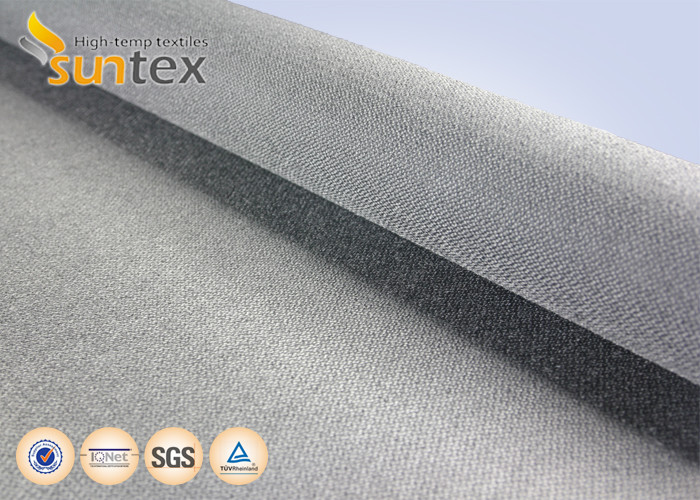

30oz Weave-lock Fire Resistant Fiberglass Fabric Flame Retardant Fabric 550C
TGF880-AC225-3008 is a medium weight texturized fiberglass fabric, with acrylic weave set finish.
It’s used for welding protection,removable jackets,flexible expansion joint,and other fire control systems.It supports temperature up to 5500C.
Acrylic treatment reduces airborne fibers, improves fabric machanical property.It's easy to sew, cut, and further fabrication.
It is asbestos-free completely,no harm to human being & animal.
Fiberglass Fabric Technical Data:
COATED FABRIC | Coating style No. AC225-3008 | |||
Coating | Acrylic weave-set finish on both sides, high add-on. | |||
Weight | 1020 ± 40 g/m2 | 30 ± 1.2 oz/yd2 | ASTM D3776-96 | |
Thickness | 1.05 ± 0.1 mm | 0.043 ±0.005 inch | ASTM D1777-96 | |
Color | Black | |||
Temp resistance | 5500C | 10000F |
Advantages:
1. Oil retardant, chemical resistant
2. Easy to be holed, sewn and fabricated.
3. Excellent abrasion resistance property.
4. Bears temperature up to 550 C degree
Main applications:
1. Fire protective barrier,welding blanket
2. Flexible expansion joint
3. Industrial thermal insulation jackets
![]() |
