Automatic Paper Tray Production Line For Disposable Pulp Egg Cartons Making

Waste Paper Egg Tray Machine / Complete Egg Tray Production Line / Disposable Egg Tray

Waste Paper Egg Tray Machine / Complete Egg Tray Production Line / Disposable Egg Tray

Machine Introduction:

This type machine uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw materia

With this machine production line, investors can turn their waste paper into Money!

1. Pulping System:

Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

2. Forming System :

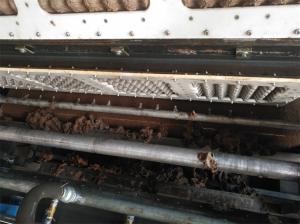

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.

3. Drying system (can use gas,dissel,coal for Boiler burner)

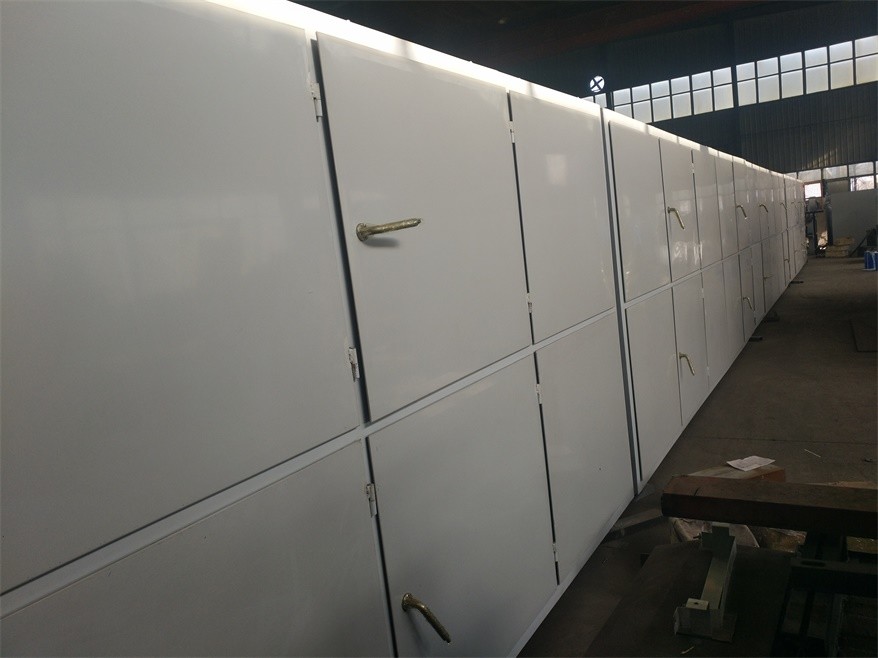

There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.

4. Automatic counting:

After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .

Quick Detail

Condition: New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Weight: Depends

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided: Engineers available to service machinery overseas

Capacity: 350- 3000pcs/h

Color: As customer needs

Frequency: 50Hz-60Hz

Application: egg tray,fruit tray,bottle tray

Workshop required: 400㎡

Worker required: 5-6 persons

Fuel: Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine

This production line is suitable for the following products:

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.

Technical parameters

Model	Mechanization	Working mode	Capacity(Pcs/h)
ZJM-350	Semi-auto or Automatic	Reciprocating	350-400
ZJM-700	Semi- auto or Automatic	Reciprocating	700-800
ZJM-1000	Semi- auto or Automatic	Reciprocating	1000
ZJM-1300	Semi - auto or Automatic	Reciprocating	1300-1500
ZJM-2000	Automatic	Reciprocating or Rotary	1800-2000
ZJM-2500	Automatic	Reciprocating Rotary	2000-2500

Payment and delivery

Trade terms		FOB Qingdao or EXW Factory
Delivery time		About 60 working days after receiving the deposit.
Payment term		BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment		When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time		Two years after the Egg tray machine received.
TERMS OF DELIVERY		FOB Qingdao Port, China
Package		In container
Certification		CE

Factory Introduction

Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.

Don’t miss the chance of promoting the production efficiency of your company.

Welcome to contact us.

Dryer Inside Wheel

Welcome to contact us!

Product Tags:


*From:	Your email address is incorrect!
*To:	Jinan Wanyou Packing Machinery Factory
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Egg Tray Production Line
Brand Name:	Wanyou
Model Number:	RL- ZJM
Certification:	CE
Place of Origin:	Jinan, Shandong, China
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1 sets per month
Delivery Time:	30 working days after get deposit payment
Packaging Details:	in container
Machine Color:	Customized
Raw Material:	Waste Paper, Waste Cardboard, Carton, Books etc.
Guarantee:	2years
Capacity of egg trays:	350 -3000pcs/h
Processing Type:	Pulp Molding Machine
Forming molds:	Aluminum
