OD Mounted Pipe Cutting And Beveling Machine Auto Feed Electric Driven

OD Mounted Pipe Cutting And Beveling Machine Auto Feed Electric Driven

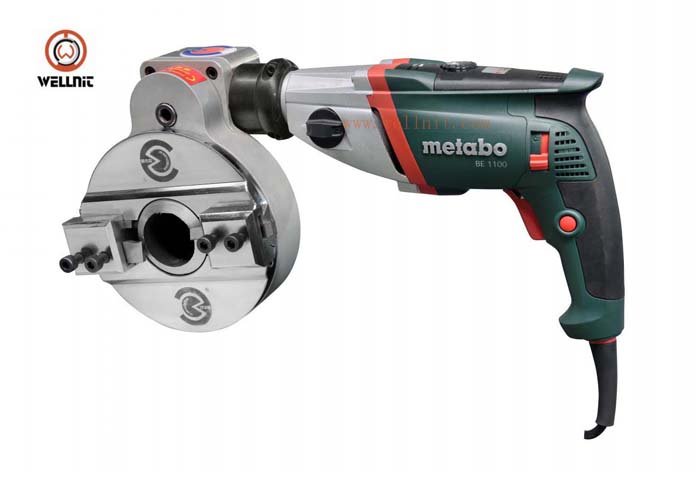

Metabo Motor Metal Pipe Cutting And Beveling Machine SCB-114,

This series machines adopt high strength & precision ring structure, apply for cutting and beveling pipe, especially for batch working of cutting, beveling for thin wall thickness pipe.

It adopts METABO motor: low noise, long life, stable performance and perfect speed adjustable function, with CE certificate.

Power supply: 220-240V 1PH 50/60HZ

• Drive Options: Pneumatic, Hydraulic, and Electric
• Air requirement: 1500L-3000L Per minute 0.6/0.7Mpa
• Hydraulic requirement: 2-60L per minute 12.5Mpa
• Electric requirement:220-240V 1PH 50/60HZ
• Feed mode: Star wheel, automatically
• Feed rate: Fixed 0.08mm per circle

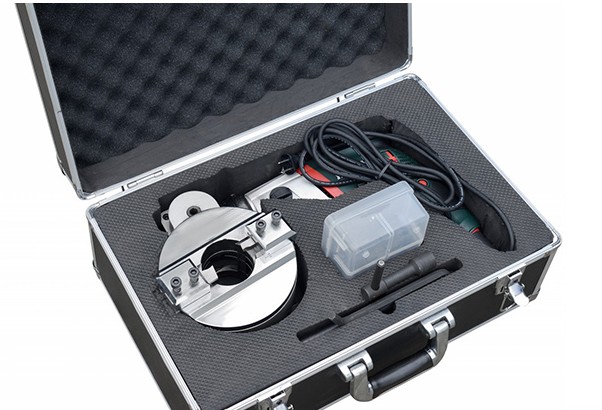

• Packaging: Plywood case

Technical parameters of SCB-63 Product :

1.Working Range 14-63mm

2.Wall Thickness ≦12

3.Rotation Speed 30-120r/min

Note:Non-standard machines are available according to customers’requirement.

Order Guide:

Before you place order to us, please let us know the following information:

• Choose the right Model

• Confirm your electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel required

• Confirm the welding joint required (U, V, Double V or Compound preparation)

• Advise your pipe material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• The spare parts needed

Before you place order to us, please let us know the following information:

• Choose the right Model

• Confirm your electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel required

• Confirm the welding joint required (U, V, Double V or Compound preparation)

• Advise your pipe material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• The spare parts needed

• If the pipe wall thickness more than 30mm, inform us in advance (Important)

Specification for other Model but driven by Pneumatic and Hydraulic for Automatic Pipe Cold Cutting and Beveling Machines, Pipe Bevellers and pipe end facing
