| Categories | Pipe Cutting And Beveling Machine |
|---|---|
| Brand Name: | Wellnit |
| Model Number: | OCH |
| Certification: | CE,ISO |
| Place of Origin: | Zhejiang, China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 sets month |
| Delivery Time: | 5-7 days |
| Packaging Details: | wooden case |
| Voltage: | 220V |
| Rated Power: | 1.5-2KW |
| Mounting Method: | Split Od Mount |
| Warranty: | 1 year |
| Motor: | Hydraulic Motor |
| Cutting material: | carbon,stainless,alloy |
| Driving type: | Hydraulic |
Oil / Gas Pipe Cutting And Beveling Machine Hydraulic Driving Aluminum Alloy
Production Description:
The Bridge Tool slide accessory is used for facing,counterboring,inside beveling and beveling an open pipe
end,especially for heavy wall thickness pipe.
The slide mounted onto one OD-Mounted machine and "bridge" the end
of pipe.
The bridge tool slide uses a single point tool and is available
with beveling templates for various form
contours.
Main Features:
1. Each size available for 3 model OD-Mounted machine.
2. Bevel,Compound beveling,Inside beveling,J-Prep,and counterbore.
3. No limit of wall thickness,material:Carbon steel,alloy
steel,stainless steel or other pipe.
4. Tool feed automatically.
5. Complete with counterbore/I.D beveling tool,I.D beveling angle
available for adjust.
6. Feed wheel,worm wheel and worm covert designed,make operation
more safe.
Production Description:
The series machine is ideal for all types of pipe cutting, beveling and end preparation.
The split frame design allows the machine to split in half at the frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping.
The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and
flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56
inches O.D.(DN20-1400), on most wall thicknesses and material.
Main Features:
1. Cold Cutting and Beveling improves safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Tools feed automatically.
5. Fast, Precision, On-site Beveling.
Technical Specifications:
| Model | Working Range (ID-OD) | Wall Thickness | Rotation Speed | Air pressure | Air Consumption | |
| OCP-89 | Φ25-89 | 3/4''-3'' | ≤35 | 50r/min | 0.6MPa | 1500 L/min |
| OCP-159 | Φ50-159 | 2''-5'' | ≤35 | 21r/min | 0.6MPa | 1500 L/min |
| OCP-168 | Φ50-168 | 2''-6'' | ≤35 | 21r/min | 0.6MPa | 1500 L/min |
| OCP-230 | Φ80-230 | 3''-8'' | ≤35 | 20r/min | 0.6MPa | 1500 L/min |
| OCP-275 | Φ125-275 | 5''-10'' | ≤35 | 20r/min | 0.6MPa | 1500 L/min |
| OCP-305 | Φ150-305 | 6''-10'' | ≤35 | 18r/min | 0.6MPa | 1500 L/min |
| OCP-325 | Φ168-325 | 6''-12'' | ≤35 | 16r/min | 0.6MPa | 1500 L/min |
| OCP-377 | Φ219-377 | 8''-14'' | ≤35 | 13r/min | 0.6MPa | 1500 L/min |
| OCP-426 | Φ273-426 | 10''-16'' | ≤35 | 12r/min | 0.7MPa | 1800 L/min |
| OCP-457 | Φ300-457 | 12''-18'' | ≤35 | 12r/min | 0.7MPa | 1800 L/min |
| OCP-508 | Φ355-508 | 14''-20'' | ≤35 | 12r/min | 0.7MPa | 1800 L/min |
| OCP-560 | Φ400-506 | 16''-22'' | ≤35 | 12r/min | 0.7MPa | 1800 L/min |
| OCP-610 | Φ457-610 | 18''-24'' | ≤35 | 11r/min | 0.7MPa | 1800 L/min |
| OCP-630 | Φ480-630 | 20''-24'' | ≤35 | 11r/min | 0.7MPa | 1800 L/min |
| OCP-660 | Φ508-660 | 20''-26'' | ≤35 | 11r/min | 0.7MPa | 1800 L/min |
| OCP-715 | Φ560-715 | 22''-28'' | ≤35 | 11r/min | 0.7MPa | 1800 L/min |
| OCP-762 | Φ600-762 | 24''-30'' | ≤35 | 11r/min | 0.8MPa | 2000 L/min |
| OCP-830 | Φ660-813 | 26''-32'' | ≤35 | 10r/min | 0.8MPa | 2000 L/min |
| OCP-914 | Φ762-914 | 30''-36'' | ≤35 | 10r/min | 0.8MPa | 2000 L/min |
| OCP-1066 | Φ914-1066 | 36''-42'' | ≤35 | 9r/min | 0.8MPa | 2000 L/min |
| OCP-1230 | Φ1066-1230 | 42''-48'' | ≤35 | 8r/min | 0.8MPa | 2000 L/min |
| Model | Working Range (ID-OD) | Wall Thickness | Rotation Speed | |
| OCH-89 | Φ25-89 | 3/4''-3'' | ≤35 | 100r/min |
| OCH-159 | Φ50-159 | 2''-5'' | ≤70 | 96r/min |
| OCH-168 | Φ50-168 | 2''-6'' | ≤70 | 90r/min |
| OCH-230 | Φ80-230 | 3''-8'' | ≤70 | 85r/min |
| OCH-275 | Φ125-275 | 5''-10'' | ≤70 | 80r/min |
| OCH-305 | Φ150-305 | 6''-10'' | ≤70 | 73r/min |
| OCH-325 | Φ168-325 | 6''-12'' | ≤70 | 70r/min |
| OCH-377 | Φ219-377 | 8''-14'' | ≤70 | 62r/min |
| OCH-426 | Φ273-426 | 10''-16'' | ≤70 | 58r/min |
| OCH-457 | Φ300-457 | 12''-18'' | ≤70 | 55r/min |
| OCH-508 | Φ355-508 | 14''-20'' | ≤70 | 52r/min |
| OCH-560 | Φ400-506 | 16''-22'' | ≤70 | 52r/min |
| OCH-610 | Φ457-610 | 18''-24'' | ≤70 | 50r/min |
| OCH-630 | Φ480-630 | 20''-24'' | ≤70 | 50r/min |
| OCH-660 | Φ508-660 | 20''-26'' | ≤70 | 50r/min |
| OCH-715 | Φ560-715 | 22''-28'' | ≤70 | 48r/min |
| OCH-762 | Φ600-762 | 24''-30'' | ≤70 | 48r/min |
| OCH-830 | Φ660-813 | 26''-32'' | ≤70 | 45r/min |
| OCH-914 | Φ762-914 | 30''-36'' | ≤70 | 41r/min |
| OCH-1066 | Φ914-1066 | 36''-42'' | ≤70 | 32r/min |
| OCH-1230 | Φ1066-1230 | 42''-48'' | ≤70 | 30r/min |
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCH-305 | Φ150-305(6”-10”) | ≤30mm | 13 r/min |

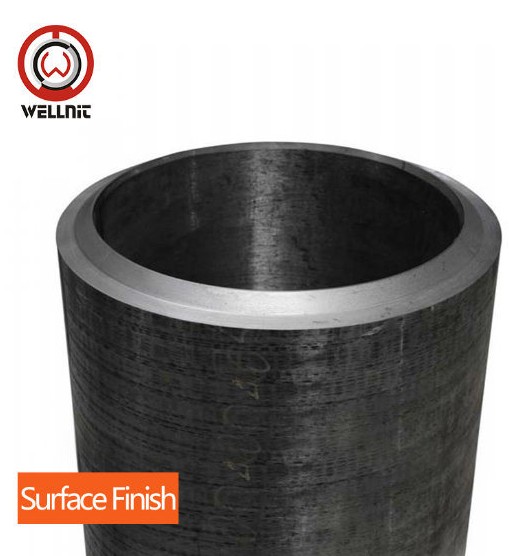

Effect Picture:
Beveling slope is smooth.
|
