Interactive Capacitive Touch Foil Film PCAP Touch Screen Kiosk Transparent Nano Touch Wall

Categories Touch Screen Frame
Brand Name: Genevision
Model Number: MGF-320 or other
Certification: CCC
Place of Origin: Shenzhen China
MOQ: 1 piece
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 pcs per month
Delivery Time: 5 working days
Packaging Details: 1pc/bag
Product name: touch foil film
Touch screen type: Nano touch
Touch points: 10 points multi touch
Optional size: from 17" to 100"
Colour: Transparent
Connect port: USB or RS232
Installlation: landscape or portrait
Warranty: One year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Interactive Capacitive Touch Foil Film PCAP Touch Screen Kiosk Transparent Nano Touch Wall

32" 42" 43" 55" 65" 85" 100"110" transparent Nano touch wall,Interactive Capacitive PCAP touch foil film for Window shop


Features & advantage:
1.Stable quality,9 years life time.
2.Zero pressure and precise touch,fast response.
3. Optional size:from 17" to 100"
4.Water-proof, Ultraviolet-proof, Vandal resistant,easy clean.
5.Suitable for different environment of indoor and outdoor.
6.Flexible,could be used in innovative design and special construction .
7.Fashionable and beautiful appearance,frameless,transparent, ultrathin design.
8.The same technology of projected capacitive touch as IPAD,maximum supports 100 points now .
9.Work through galss maximum thickness of 12mm .

Specification:

Available size42-84 inchTouch points10 points
SeriesME-MiniTouch deviation≤0.5mm
The number of sensors

TX70 RX142(≤55inch)

TX80 RX142(>55inch)

Scanning speed10ms /frame
Energy consumption2WDrive TypeDrive Free
Arm RejectYesCustomnot support custom
Point report Rate>100Film thickness≤100um
Light transmission rateAbove 93%Supply voltage5V USB
TransmissionUSB2.0Warranty1 Year
Program-levelKernel-level low-level driveTechnical certificationCE,ilac-MRA,CNAS,CAL,CMA
Ambient temperature-20℃ to +70℃Ambient lightnessWhole angle of the anti-glare
Touch supportClick, drag, zoom, rotateSensing distance≤20mm( glass thickness )
Calibration modeSoftware calibrationProgram typeAndriod,Linux,Mac,Windows7/8/8.1/10(see note)
Transmission distance≤50m ( plus USB signal amplifier, etc )Safety distance2mm( refers to the distance between the LCD screen and the film)

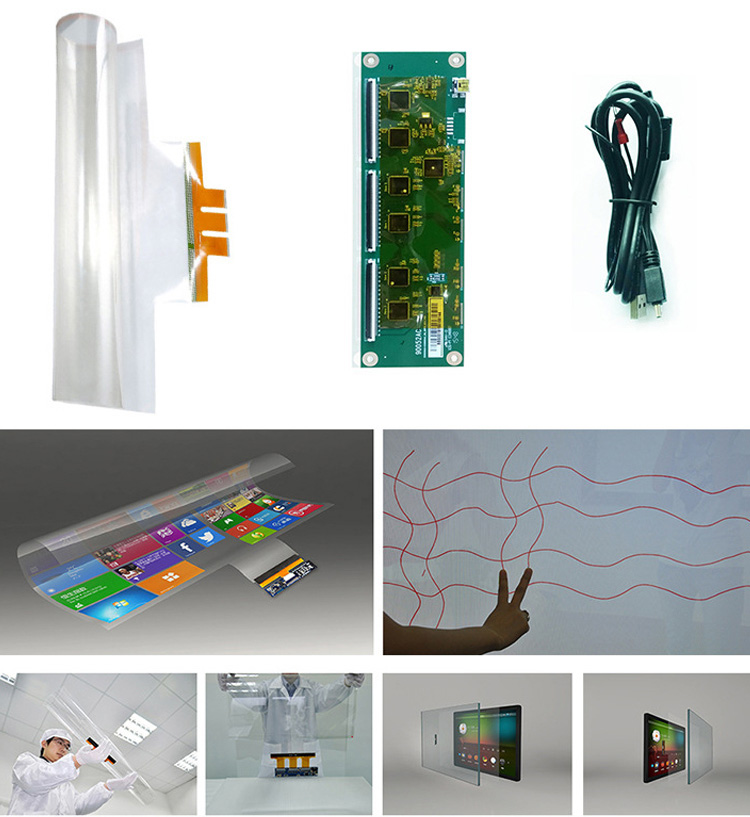

Packing List1 * touch film circuit/ control board * 1 /USB cable * 1

Tag:Capacitive touch screen foil,Nano touch foil,touch foil film,multi touch screen film,transparent interactive touch foil
