| Categories | Side Sealing Bag Making Machine |
|---|---|
| Brand Name: | SL |
| Model Number: | SLXH |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Price Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Delivery Time: | 25 days after got deposit |
| Packaging Details: | Export standard packing |
| Machine type: | Bag forming machine |
| Bag type: | Flower bag |
| Material: | BOPP |
| Power: | 7kw |
| Weight: | 1400kg |
| Dimension: | 6000*1400*1600MM |

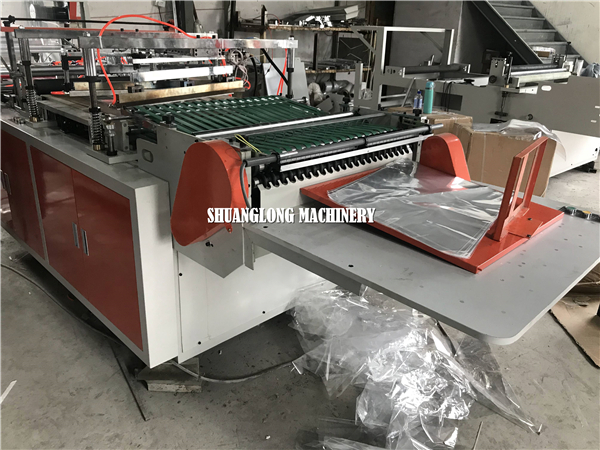

Plastic Film Triangle Type Flower Bag Side Sealing Bag Making machine
Brief Introduction
This machine is a multi-functional, high-quality hot-cutting seal bag machine, plastic flower bag making machine
This machine is controlled by the computer, there is frequency conversion that adjusts the speed , electric eye following , adjustable function of various specifications , easy to operate. Suitable for different bags such as flower bag , tie bag , umbrella wrapping bag ,etc. to process.
Main Features
1 this machine uses the liquid crystal computer to touch the screen control, may initialize the system bag speed, makes the bag length, establishes in advance approves/the inferior quantity to carry on automatically counts, alarm in advance, after in groups/inferior quantity knock off.
2 the computer control burns the knife temperature, may carry on
the lock following to the temperature.
3 the host electrical machinery speed controls with the frequency
changer, the revolution steady province electricity, the ease of
operation is relaxed.
4 light electric eye track, accuracy control system bag size.
5 uses the high-level import silica gel conveyor belt, the service
life long, makes the bag to be artistic.
6 the belt dashed line spot breaks the function
7 The side be sealed is of high strong , very smooth, and good in
appearance
| Maximum length | 750mm | 950mm | 1050mm |
| Width | 80-600mm | 100-800mm | 100-900mm |
| Speed | 50-100pc/min | 50-100pc/min | 50-100pc/min |
| Length deviation | ±2/1000mm | ±2/1000mm | ±2/1000mm |
| Seals Cuts Thickness | 0.015-0.08mm | 0.015-0.08mm | 0.015-0.08mm |
| Electric heating | 6.5kw | 7.2kw | 7.8kw |
| Power | 11kw/380V | 13kw | 16kw |
| Dimentions | 7000*1550*1420mm | 7700*1650*1420mm | 8700*1750*1420mm |
| Weight | 4000kg | 5000kg | 5500kg |
|
