Custom Metal Roof Roll Forming Machine , PU Sandwich Panel Top & Bottom Sheet Roll Former

PU Sandwich Panel Top Sheet And Bottom Sheet Roll Forming Machine

This roll forming machine is designed to produce the top sheet and bottom sheet of PU sandwich panel according to customer's profile drawing. Main work process of this machine is decoiling, material guiding, roll forming and cutting.

Main Components Of This Machine

Main Machine Technical Parameters

1. Materials: Galvanized steel coils, PPGI coils, Color Steel Coils

2. Material thickness: 0.3-0.7mm

3. Main motor power: 5.5kw

4. Forming stations: 16 stations

5. Forming speed: 10-15m/min

6. Shaft diameter: 76mm

7. Roller material: high grade NO.45 steel with heat treatment and chrome plated of 0.05mm thick

8. Hydraulic power: 3kw

9. Cutting blade material: Cr12Mov

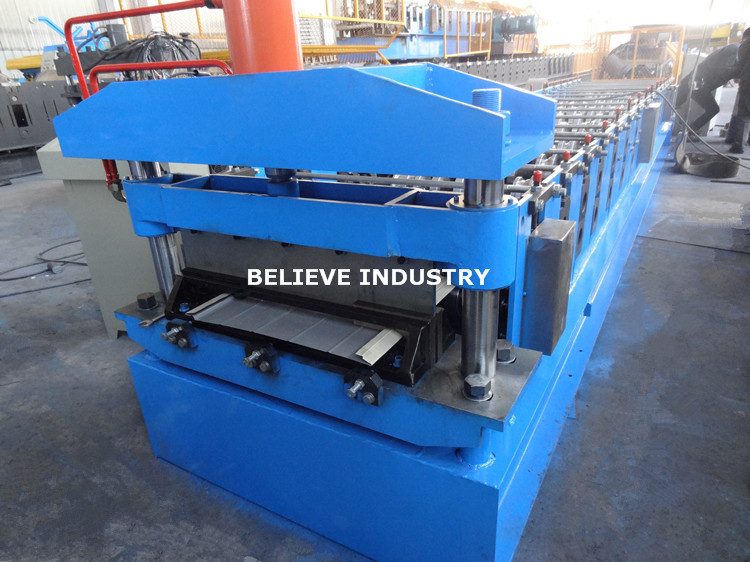

Machine Pictures

Believe Industry Company is engaged in all kinds of metal roll forming machine designing and manufacturing. If you have any questions or need more machine details, Please Contact Us.
