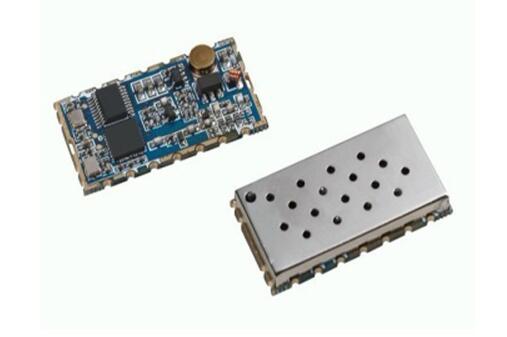

400-480mhz Digital Radio Mobile VHF 134-174MHz 5W All-In-One 10Km Digital Wakie Talkie

400-480mhz Digital Radio Mobile VHF 134-174MHz 5W All-In-One 10Km Digital Wakie Talkie

Features:

* Frequency: 400 ~ 480 MHz (UHF)

* 134~174MHZ (VHF)

* Tx and Rx frequency, Tx and Rx CTCSS,CDCSS can be set alone.

* Band width 12.5/25KHz

* Output power up to 1 w

* Transmission distance up to 3.5 to 5 km in Open area

* Sensitivity: - 124 DBM

* Small size

* Built-in EEPROM, data kept unchanged even powered off

* 38 CTCSS

* 166 CDCSS

* 8 level squelch

* 8 adjustable volume

* high/ low power is optional (500 mw)-1w

* wide range of working voltage 3.3 to 5.5 V

* 1 ppm KDS TCXO crystal

Application:

* small walkie talkie

* Invisible intercom system

* Sport products

* building community security system

* audio surveillance system

Pin Definition:

Pin Definition
