Mini Thermal Protector Fuse BH-TB02B-B8D 30 - 150℃ Temperature Type

Categories Mini Thermal Switch
Brand Name: HENG HAO
Model Number: BH-TB02B-B8D
Certification: TUV UL CQC ROHS
Place of Origin: MADE IN CHINA
MOQ: 1000pcs
Price: USD 0.50 to 0.25 per piece
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000000pcs per month
Packaging Details: carton 47*23*23cm
Voltage & Current: 250V 2A
Temperature range: 30℃ to 150℃
life time: 10000 times
szie: 13.5*5.4*2.4mm
lead wire: #22 3266 white, or #22 3135 white
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Mini Thermal Protector Fuse BH-TB02B-B8D 30 - 150℃ Temperature Type

Mini thermal protector fuse swtich BH-TB02B-B8D 250v 2a 30 to 150 degree with UL TUV CQC


BH series thermostat’s Principle and structure

BH series that can protect against over-current and over-temperature are sealed firmly, small internal resistance, no noise and reset automatically. When current through bimetal that are sensitive to temperature and current, the status of the bimetal will be changed by over-temperature or over-current to cut off circuit or switch on circuit. BH series are safer than normal protectors, as there is no temperature effect lag under condition of sudden big current.


BH series thermostat’s Specification

Electrical Rating:

DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A for BH series

DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A for BH-TB02 series

Open temperature: (30~150)±5°C; 5°C a step.

Reset temperature: 2/3 of the action temperature with tolerance of ±15°C. Reset

temperature can also be provided according to customers' requirement.

Dimension

ModelLength (mm)Width(mm)High(mm)Lead wire
BH-TB02B-B8D13.55.42.43266-AWG24#, 3135-AWG24# or nickel strip normally, length is 70 mm or according to customer’s require
BH-A1D156.63.2
BH-B2D157.33.9
BH-B3D1884

BH series thermostat’s Application and Instruction

BH series thermal protectors ,effective reliable security protector and alarm devices, are widely used in various types 1.5 horsepower motors, lighting device, inverter welding machine, switch power, rechargeable battery pack, fluorescent lamp ballasts, portable power tools, electric appliances and other electric equipment to prevent from over-current & over-heating caused by abnormal work status. Enforced types that can withstand pressure of 3.5MPa are fit for build-in-installation of plastic coated motor.


BH series thermostat’s Code System of Product

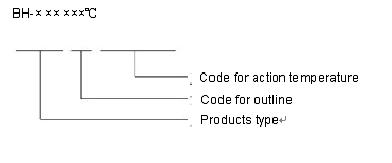

1.BH series Code system

2.BH-TB02 series Code system


BH-TB02B-B8D mini thermal protector's open and reset temperature sheet

CodeOpen temperatureReset temperatureCodeOpen temperatureReset temperature
03030±3℃≥20℃09595±5℃70±15℃
03535±3.5℃≥25℃100100±5℃70±15℃
04040±4℃≥30℃105105±5℃75±15℃
04545±4.5℃≥33℃110110±5℃75±15℃
05050±5℃≥35℃115115±5℃80±15℃
05555±5℃42±6℃120120±5℃85±15℃
06060±5℃45±8℃125125±5℃85±15℃
06565±5℃48±10℃130130±5℃90±15℃
07070±5℃50±12℃135135±5℃95±15℃
07575±5℃53±14℃140140±5℃100±15℃
08080±5℃55±15℃145145±5℃100±15℃
08585±5℃60±15℃150150±5℃105±15℃
09090±5℃65±15℃155155±5℃110±15℃

BH-TB02B-B8D mini thermal protector's shape and structure
