HDMI USB SD Card C Mount CMOS Microscope Camera A59.2219

Categories Microscope Accessories
Brand Name: CNOEC, OPTO-EDU
Model Number: A59.2219
Certification: CE, Rohs
Place of Origin: China
MOQ: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Delivery Time: 5~20 Days
Packaging Details: Carton Packing, For Export Transportation
Theroy: WIFI Digital Camera
Storage: SD card
Sensor: Cmos
White Balance: Auto
Output: HDMI USB
System: Windows® XP /Vista /7/8/8.1 Linux OSx
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

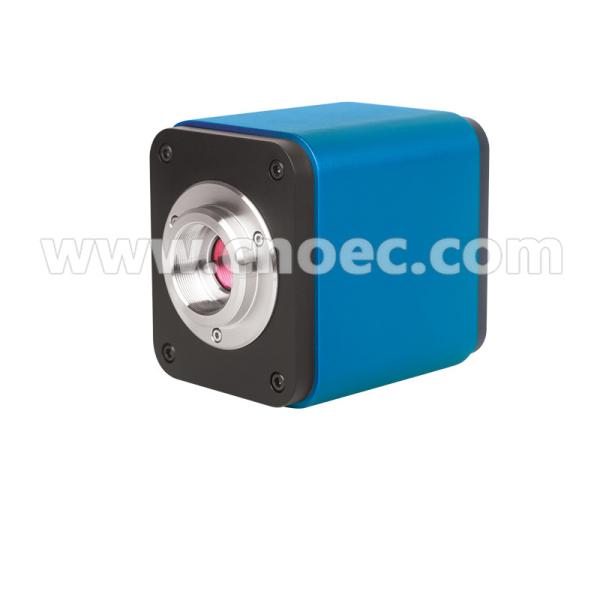

HDMI USB SD Card C Mount CMOS Microscope Camera A59.2219

HDMI USB SD Card C Mount CMOS Microscope Camera A59.2219


A59.2219 camera is a multiple interfaces (HDMI+USB2.0+SD card) CMOS camera, it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.
For HDMI output, a camera control panel and toolbar are overlayed on the HDMI screen, in this case, the USB mouse can be used to set the camera,browse and compare the captured image, play the video etal.
For USB2.0 output, unplug the mouse and plug in the USB2.0 cable, then the video stream can be transfer to computer with the advanced software. With it you can control the camera, process the image.
A59.2219 camera can be used for microscope, industrial stereo microscope, on-line inspection et al.

* All in 1( HDMI+USB+SD card) C-mount camera with high sensitivity CMOS sensor;
* Simultaneous HDMI & USB output;
* Built-in mouse control;
* Built-in image capture & video record to SD card;
* Built-in camera control panel for mouse control;
* Built-in toolbar including zoom,mirror,comparison,freeze,cross,browser functions;
* Built-in image & video browsing,display & play;
* Ultra-Fine color engine with perfect color reproduction capability(USB);
* With advanced video & image processing application;
* Support standard UVC for Windows/Linux/Mac(USB);
* CNC shell molding design;


A59.2219 HDMI+USB+SD Card C-Mount CMOS Camera

Sensor & Size(mm)

1080P/Sony IMX236(C) 1/2.8"(5.5x3.4)

Pixel(μm)

2.8x2.8

G Sensitivity Dark Signal510 mv with 1/30s, 0.15 mv with 1/30s
FPS/Resolution60@1920x1080, 30@1920x1080
Binning1x1
Exposure0.4ms~999ms
Interface & Button Functions
USBUSB Camera or USB Mouse
HDMIHDMI Output
DC12V12V Power in
SDSD Card Slot
ON/OFFPower On/Off Switch
LEDPower On Indicator
Specification for HDMI Output
UI OperationWith USB Mouse
Image CaptureHigh Speed in SD Card
Video Record1080P 30fps in SD Card
Camera Control PanelIncluding Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
ToolbarIncluding Zoom, Mirror, Comparison, Freeze,Cross, Browser Function
Specification for USB Output
White BalanceAuto White Balance
Color TechniqueUltra-FineTM Color Engine (USB)
Capture/Control APIStandard UVC for Windows/Linux/Mac(USB)
Recording SystemStill Picture or Movie (USB)
Software Environment (for USB2.0 Connection
Operating SystemMicrosoft® Windows® XP /Vista /7/8/8.1(32 & 64 bit)
OSx(Mac OS X)
Linux
PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 4GB or More
USB Port: USB2.0 High-speed Port
Display: 19” or Larger
CD-ROM
Operating Environment
Operating Temperature-10~ 50℃
Storage Temperature-20~ 60℃
Operating Humidity30~80%RH
Storage Humidity10~60%RH
Power SupplyDC 12V/2A Adaptor
Overall Dimensions
Width x Depth x Height78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”)
Weight0.47 kg (1.0lbs)
