Drywall Partition C U Profile Metal Stud And Track Roll Forming Machine PLC Control

Categories Stud And Track Roll Forming Machine
Brand Name: CHBEST
Model Number: XY50x24
Certification: CE/BV/SGS
Place of Origin: China Hebei
MOQ: 1 set
Price: 9500
Supply Ability: 20 sets/month
Delivery Time: 30-40 days
Packaging Details: plastic film for naked machine
Product name: Drywall Partition C U Profile Omega Angle V type stud and track Light steel Keel forming machine
Control system: PLC
Cutting type: mould cutting
Warranty: 2 years
Lifetime: 10years
Roller material: Cr12 mov
Shaft material: 45#steel
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

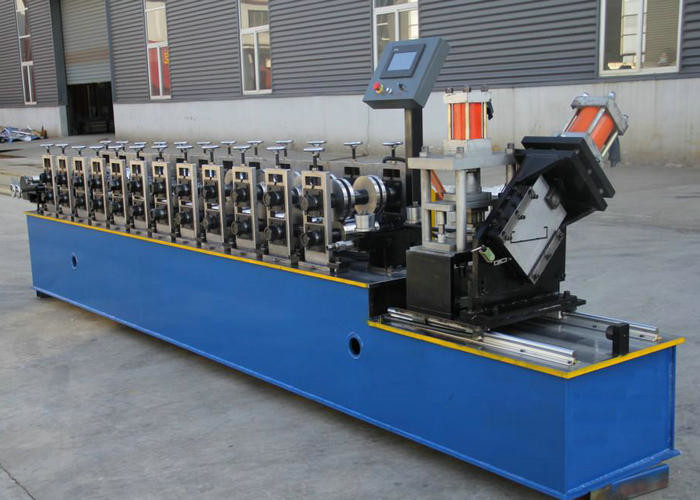

Drywall Partition C U Profile Metal Stud And Track Roll Forming Machine PLC Control

Drywall Partition C U Profile Omega Angle V type stud and track Light steel Keel forming machine

We supply the Complete roll forming Production line for producing Grid system, Suspended ceiling grid Ceiling T Grid, suspended ceiling grid, Exposed Ceiling Grid, T-bars, T-grid, Ceiling T grid ceiling, T Runner in the various models and sizes, Flexibility in the choice of the sizes, of the pitches and of profiles section, Possibility to produce also complex profiles, with special shapes and systems with or without clip; Average or high productivity lines; Dedicated or combined lines for the production of both Main Runners and Cross-T; Innovative solutions for any level of skill.


Working flow


Decoiler------feeding------roll forming-------cut to length-----output table


Profile Drawing


Machine Components


NameQuantity(set)
De-coiler1
Feeding guiding Device1
Roll Forming Part1
Hydraulic cutting Device1
Computer control box1
Hydraulic System1
Run-out table1

Parameter


ConfigurationsManual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.
Control SystemPLC Panasonic Inverter
Main Frame350mm H-Beam
Main Power5.5 kw
Pump Power3kw
Power Supply3-Phase,380V,50Hz
Forming Speed12-14m/min
Hydraulic Pressure18-20MPa
Forming Size80mm
Feeding Thickness1.5-3.2mm
Roller Station12 Stands
Roller Diameter60mm
Backboard Thickness16mm
Chain Size66mm
Cutter StandardCr12
Roller StandardCr12
Cr-Plating Size0.05mm
Overall Size9500×1400×1350mm
Total Weight6T

Working conditions
1.Machine size10m x 1.2m (L XW)
2.Working size20m x 2.5m (LXW)
3.Power supply8.5kw
4.Frequency50-60HZ
5.Wires/cables4-6mm²(length according to workshop)
6. Labor cost2 workers
7. ToolsSpanners and screwdriver
8.Lift device3-5t forklift or crane


Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.


RFQ


Step 1: Tell us your requirements

Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative

Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

Step 4: Advanced payment and production

Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.

Step 6: Balance payment and shipping

Step 7: Handing Shipping files to help clients get goods from transporter in time.

Step 8: Clients get goods and go into warranty time.
