P4 SMD Full Color Curved Custom Led Display High Definition Wide Viewing Angle

Categories Custom LED Display
Place of Origin: Shenzhen, China
Brand Name: Meltonled
Certification: CE, RoHS, ISO,FCC,UL
Model Number: P6 SMD-BALL
MOQ: 1pc/1sqm
Price: 8000usd
Packaging Details: Anti-shaking wooden case/flight case/carton
Delivery Time: 8-25 days
Payment Terms: 35% T/T as prepayment,65% T/T as balance at factory
Supply Ability: >500sqm/month
Delivery term: Ex-work/FOB/CIF/DDU
Name: led sphere display
Driver IC: MBI5124/MBI5153
Refresh rate: 1920HZ
Certificate: CE ROHS
Controller: Novastar/LINSN
Usage: Indoor
Warranty: 2 Years
Brightness: 400-1000cd/sqm
Life span: 100000hours
Display function: Video
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

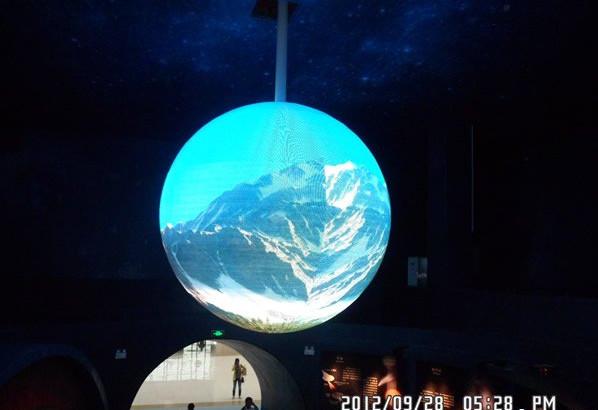

P4 SMD Full Color Curved Custom Led Display High Definition Wide Viewing Angle

P4 SMD Full Color Curved Led Display High Definition


P6-8S.pdf

Specifications

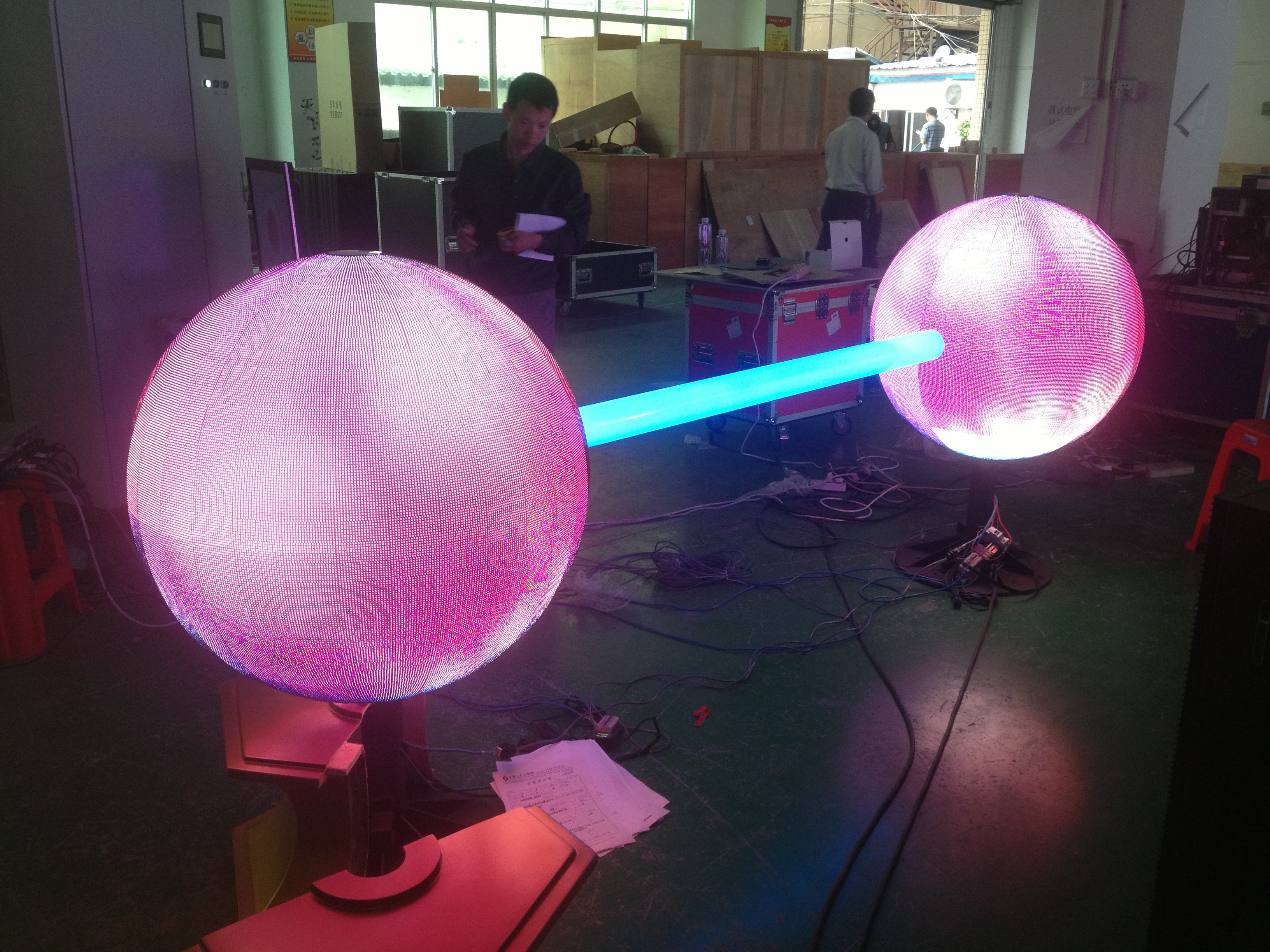

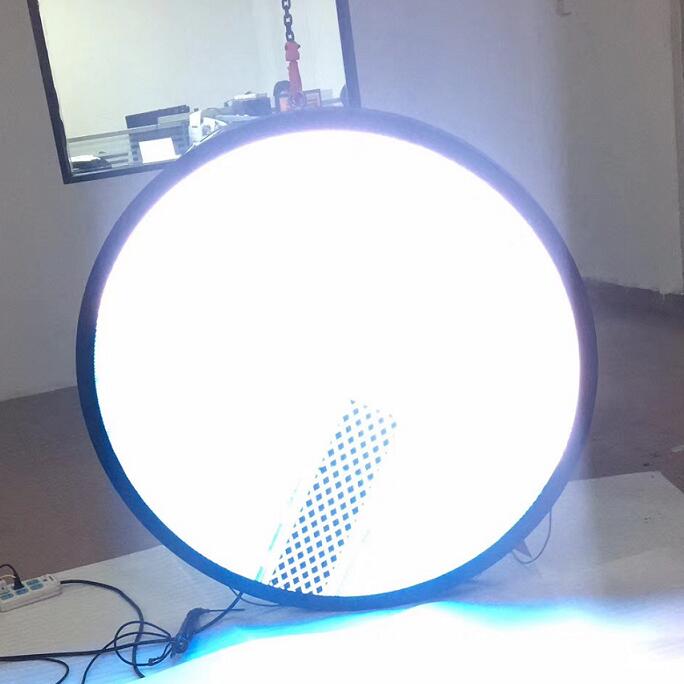

P4 SMD high definition full color flexible led ball display
1. wide viewing angle
2. hi-uniformity
3. CE,ROHS,FCC
4. tech supp

Products details:


P4 SMD high definition full color flexible led ball display
1. wide viewing angle
2. hi-uniformity
3. CE,ROHS,FCC
4. tech supp


Parameters:

Item

Parameter

Pixel

Physical pixel pitch: 6 mm

Pixel configuration: 1R1PG1PB

Chip

Wave

Brightness

Packing

R

Opto

620-625nm

300mcd

SMD-2724

G

Silan

520+/_1.25nm

850mcd

SMD-2724

B

Silan

470+/_1.25nm

180mcd

SMD-2724

Module

Module resolution: 32 x 32 pixels





Module size: 192 x 192 mm

Cabinet

Physical resolution: 96 x 96 pixels

Cabinet size: 576 x 576 x 140mm

Physical density:9216 pixels/cabinet

Module quantity: 9pcs = 3(w) x 3(h)

Material: Iron

Weight: 20Kg

Power supply(5V40A)quantity: 3pcs

Average power consumption: 200W

Max power consumption: 400W

Electricity parameter

Brightness: 1500 - 1800 nits

Brightness adjusted: 100 grade by software, or by Auto-optic induced

Color processing: 16bit

Display color: 280 trillion

Color temperature(k): 5000 — 9500 (choice by user)

Physical density: 27777 pixels/m2

Whole display flatness: ≤ 1mm juncture

Best view distance: ≥ 3m

Best view angle: Horizontal ±80°, Vertical ±80°

Storage temperature: -35°C ~ +85°C Working temperature: -20°C ~ +50°C

Driving method: Constant driving current Scan: 1/16

Refresh frequency: ≥ 300Hz

Frame rate: ≥ 60Hz

Humidity(RH): ≤ 90 ~ 95%

Protection grade: IP64

Working Voltage: DC 5V

Power supply: AC110 / 220V, 50/60Hz

Average power consumption: 800 w/m2

Max power consumption: 1600 w/m2

MTBF: 10000 hours

Screen lifetime: 100000 hours

Control system

Control system: Linsn

Signal interface: DVI

Communication distance: Internet cable: ≤ 120m Fiber cable: 1000m

Signal transfer mode: Pixels to pixels display synchronized


Packaging & Shipping

Corrugated carton Package:

This is also for led module,40pcs/carton,Carton Size:66x36x36cm


Plywood case package:

In usually, 4pcs cabinet pack into one case,this is for indoor fixed installation led display

3pcs cabinet pack into one case,this is for outdoor fixed installation led display

Both for shopping by air and shipping by sea


Flight case package:

9pcs cabinet pack into one case,this is for rental led display use with convenient wheels and can move anytime,for long time use.
