LED Illumination USB Portable Digital Microscope 400X A32.0601-9000DPL

Categories Digital Optical Microscope
Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE|Rohs
Model Number: A32.0601-9000DPL
MOQ: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Applications: Student|school
Illumination: LED
max magnification: 1000X
Theory: Digital Optical Microscope
Working Temperature: 0-50 degree
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

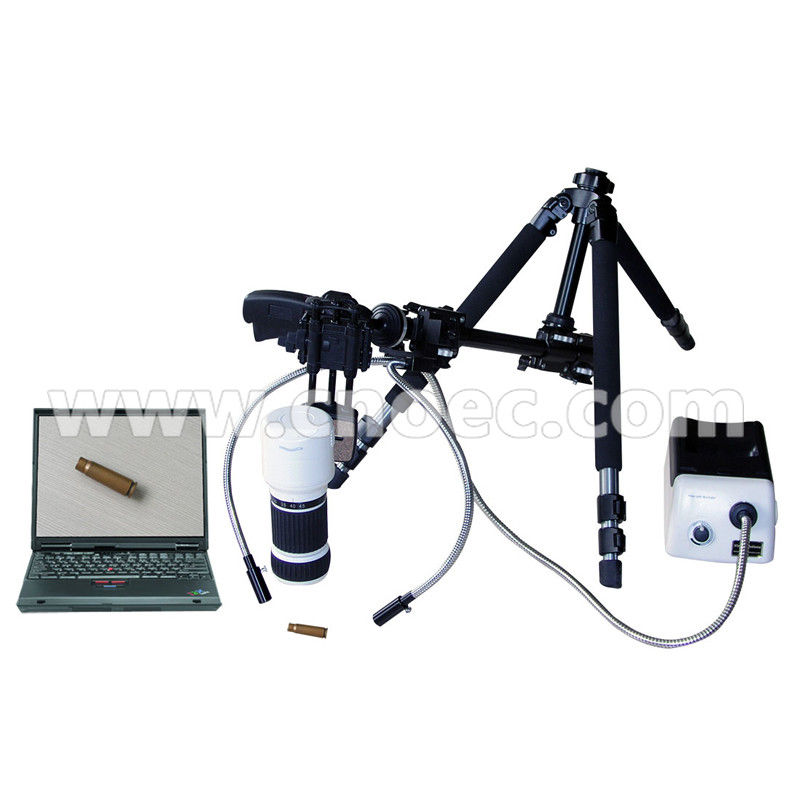

LED Illumination USB Portable Digital Microscope 400X A32.0601-9000DPL

LED Illumination USB Portable Digital Microscope 400X A32.0601-9000DPL


Description:

The digital video zoom microscope combines the tradtional optical technology and digital imaging technology and offers high quality video images. It can solve the problems generated by using a traditional microscope that requires a strict environment. Equipped with high performance Nickel hydrogen rechargeable battery, it can be used for longer inspection time in fieldwork.

With powerful functions of real-time micro-photography, video recording and measurement, on-site high-speed image acquisition, digital image input to PC for inspection, image storage, video recording, measurement at micron-level and image output can be realized. It is a good substitute for a traditional optical magnifier, stereo microscpe, comparing microscope, video measurement system and micro-photographing instrument. When used in long-distance scene evidence identification, the images of on-site evidence samples can be captured, inspected, compared and measured, and the on-site scene can enter the micro-world instantly.


Specifications:


A32.0601-9000DPL Digital Video Zoom Specification
Zoom Body of Zoom Range
0.7x-4.5x
Zoom Ratio
1:6.5
Total Magnification
4.7x-1000x
Semi-plan Achromatic Objective
0.3x, 0.5x, 0.75x, 1.5x and 2x (optional)
High-Power Objective Lens
5x and 10x (optional)
Image Sensor
1.3M pixel 1/2" color CMOS
Pixel Size
5.2um x 5.2um
Spectrum Response
400nm-1000nm
Scanning Type
Progressive scanning
Exposal Type
ERS
Resolution
1280x1024
Transmission Rate
16f/s@1280*1024, 30f/s@640*480, 30f/s@320*240
White Balance
Automatic operation supported
Exposal Control
Manual opertion supported
Image Output
USB2.0, 480Mb/s
FunctionImage capture, video recording and measuring function
Laser PointerWave length: 650nm
Working Temperature0-50 degree
Minimum System Requirement

Windows 2000, XP and Vista Operation System

PIII 800 CPU or above
256MB Memory or above
64MB video memory or above
USB2.0 interfaces
1024*768 resolution monitor or above
StandTripod
Tilt ball head
Super mag slider

Extension bar

Laptop tray
Connector of tilt ball head
IlluminationFiber optia illuminator(Input 120v(max.)60hz)
Fiber optia illuminator(Input 240v(max.)50hz)
Dual pipe light guide
Optional Accessories
Objectives
0.3x, Semi-Plan, Outer Dia.30mm, W.D.331mmA52.0626-03
0.5x, Semi-Plan, Outer Dia.30mm, W.D.198mmA52.0626-05
0.75x, Semi-Plan, Outer Dia.30mm, W.D.131mmA52.0626-75
1.5x, Semi-Plan, Outer Dia.30mm, W.D.63mmA52.0626-15
2.0x, Semi-Plan, Outer Dia.30mm, W.D.46mmA52.0626-20
5x Infinity corrected long working distance objectiveA52.0627-5
10x Infinity corrected long working distance objectiveA52.0627-10
Illumination Accessories
Iris DiaphragmA56.0606
LED side lightA56.0607
Polarizing MicroscopePolarizerA5P.0602
Rechargeable Battery
4.8V 2200mA/h, Nickel hydrogen batteryA50.0602
Battery Charger, Input Voltage 100-240V 50/60Hz, Output Voltage 6.0-6.5V, Current 250-350mAA50.0602-R
