Infinity Objective Inverted Optical Microscope Phase Contrast Microscope Bright Field A14.0203

Infinity Bright Field Objective Inverted Optical Microscope Phase Contrast Microscope A14.0203

A14.0203 Inverted Phase Contrast Microscope, Newly Designed in 2014.

Equipped with excellent Unversal Infinity System, including long working distance plan achromatic objective, and wide field plan eyepieces. Compact and steady main fram body is embodiment for the shock resistance. Conderser system designed to be switched in or out of light path, suited for tissue observation in high culture dish. This is ideal optical instrument for micro observation in celltissue and transmitted liquid tissue, even in dynamic observation in the culture dish tissue. It can be used in scientific research, universities, medical treatment, epidemic prevention, agriculture etc.

--Infinity Optical System
--Phase Contrast, Bright Field Observation
--Two Mode Phase Contrast, Turnable Type and Puller Type Condenser Optional
--Three Culture Dish Holder For Different Size Culture Dish
--Photo Adapter On Left Side Of Main Body, 100% Light Pass For Low Light Photography Condition

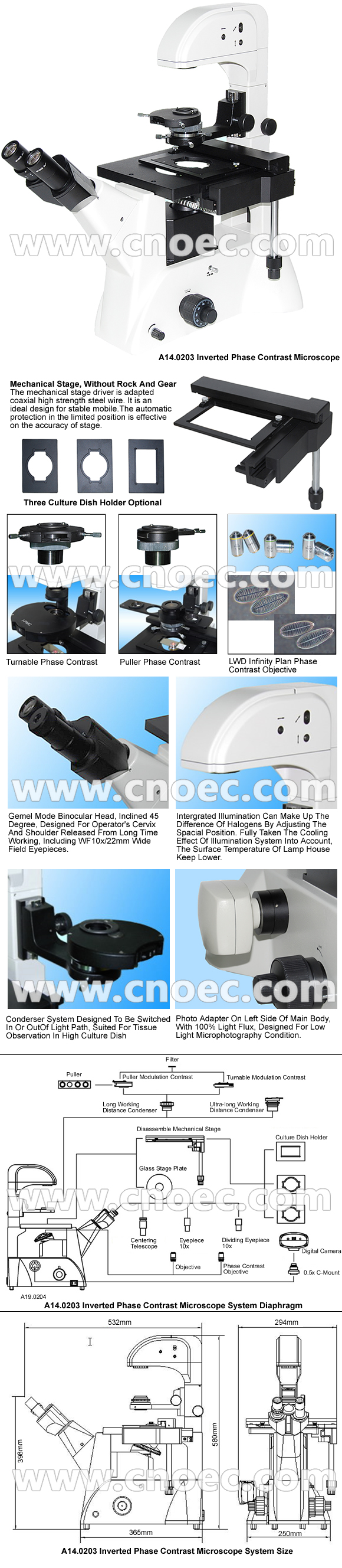

A14.0203 Inverted Phase Contrast Microscope
MagnificationTotal 100~400x
SystemInfinity Optical System
HeadTrinocular Head, 45° Inclined, Interpupillary Distance 53~75mm
Eyepiece

WF10x/22mm Wide Field, Eyepiece Tube Dia. 30mm

Centering Telescope Eyepiece 10x
NosepieceQuintuple
ObjectiveLWD Infinity Plan Bright Field Objective
10x/0.25, W.D.4.3, Cover Glass Thickness 1.2mm
20x/0.40, W.D.8.0, Cover Glass Thickness 1.2mm
40x/0.60, W.D.3.5 , Cover Glass Thickness 1.2mm
LWD Infinity Plan Phase Contrast Objective
10x/0.25, W.D.4.3, Cover Glass Thickness 1.2mm
Working StageMechanical Stage 227*208mm, Glass Round Stage Dia. 118mm, Moving Range 77*134.5mm, Moving Stage Detachable
Culture Dish Holder 1, 86mm (W)*129.5 (L), For Circular Culture Dish Dia.87.5mm
Culture Dish Holder 2, 34mm (W)*77.5 (L), For Circular Culture Dish Dia.68.5mm
Culture Dish Holder 3, 57mm (W)*82mm (L)
FocusingCoaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.002mm
CondenserLong Working Distance 55mm, Turnable Type, For Phase Contrast View
Light SourceKohler Illumination, 6V30W Halogen Lamp, Brightness Adjustable
Optional Accessories
CondenserLong Working Distance 55mm, Puller Type, For Phase Contrast ViewA5C.0210-24
ObjectiveLWD Infinity Plan Phase Contrast Objective
20x/0.40, W.D.8.0, Cover Glass Thickness 1.2mmA5C.0235-20
40x/0.60, W.D.3.5 , Cover Glass Thickness 1.2mmA5C.0235-40
AdapterCCD Adapter 0.5xA55.0202-04
Digital SLR Camera Adapter for Canon EF SeriesA55.0204-02
