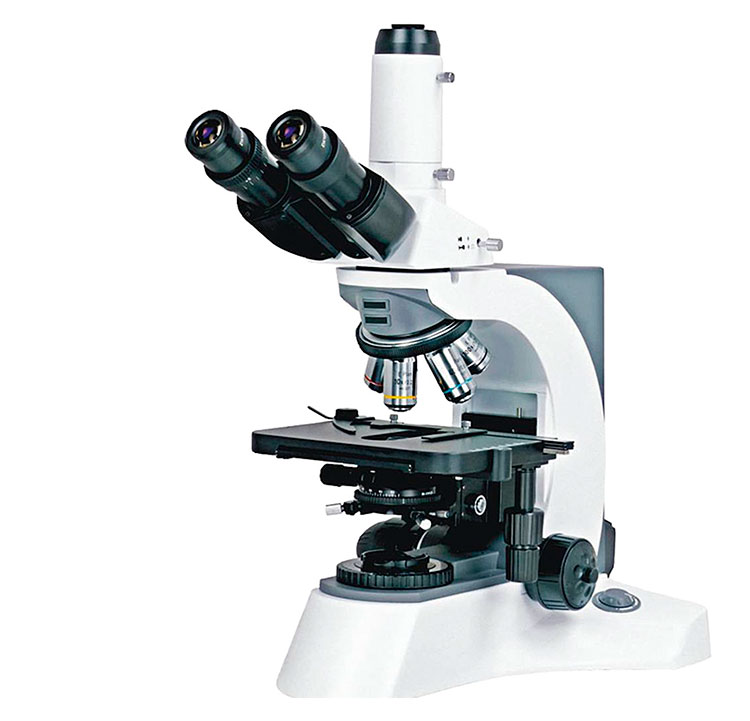

Items | A12.1018 Laboratory Biological Microscope |
Optical System | Infinity Optical System |
Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm,
Left Eyetube Diopter Adjustable |
Eyepiece | Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm |
Nosepiece | Backward Quintuple Nosepiece |

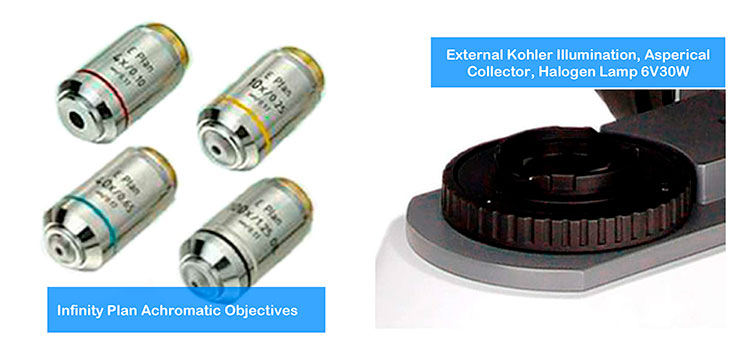

Objective | Infinity Plan Achromatic Objective 4x,10x,40x,100x |
Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 24mm, Fine
Division 0.001mm, Coarse Stroke 37.7mm |
Working Stage | Double Layer Mechanical Stage, 185x142mm, Moving Range 55x75mm |
Condenser | Swing Condenser N.A.0.9/0.25 |
Filter | Green, Blue |
Illumination | External Kohler Illumination, Asperical Collector, Halogen Lamp
6V30W, Brightness Adjustable |
Note: "●"In Table Is Standard Outfits |
|
Items | A12.1018 Laboratory Biological Microscope Optional Accessories |
Head | Scidentopf Binocular Head, 30° Inclined, Interpupillary 48~75mm | A53.1003-7 |
Tilting Binocular Head 5~35°, Upgrade to A12.1025 | A53.1005-1 |
Tilting Trinocular Head 5~35°, Upgrade to A12.1025 | A53.1005-2 |
Objective | Infinity Plan Achromatic Objective 20x | A52.1006-20 |
Infinity Plan Achromatic Objective 60x | A52.1006-60 |
Nosepiece | Sextuple Nosepiece | A54.1001-6 |
Illumination | Halogen Lamp 24V50W | A56.1011-50W |
Halogen Lamp 24V100W | A56.1011-100W |
Adapter | Photo Adapter | A55.1001 |
C-Mount 1.0x | A55.1002-10 |
C-Mount 0.5x | A55.1002-05 |
Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | A5D.1010-D |
Dark Field Condenser, N.A. 1.25~1.36, Immersion | A5D.1010-I |
Dark Field Objective, Infinity Plan 100X, ForImmersion Dark Field
Observation | A5D.1030-3 |
Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm
ForImmersion Dark Field Observation | A5D.1030-4 |
Phase Contrast | Infinity Plan Turret Phase Contrast Set | A5C.1003-A1 |
--Infinity Plan Turret Phase Contrast Condenser |
--Infinity Plan Phase Contrast Objective 4x,10x,40x,100x |
--Centering Telescope 10x |
--Green Filter |
Infinity Achromatic Turret Phase Contrast Set | A5C.1003-A2 |
--Infinity Achromatic Turret Phase Contrast Condenser |
--Infinity Achromatic Phase Contrast Objective 4x,10x,40x,100x |
--Centering Telescope 10x |
--Green Filter |
Flourescent | EPI-Fluorescent Kit, Upgrade to A16.1028 | A5F.1002-BG |
--Power Supplier 220V/110V Interchangeable, Digital Display |
--100WHBO Ultra Hi-Voltage Spherical Mercury Lamp |
--Barrier To Resist Ultraviolet Light |
--Fluorescence Free Oil |
--Excitation Filter B/G |
EPI-Fluorescent Kit | A5F.1002-BGVU |
--Power Supplier 220V/110V Interchangeable, Digital Display |
--100WHBO Ultra Hi-Voltage Spherical Mercury Lamp |
--Barrier To Resist Ultraviolet Light |
--Fluorescence Free Oil |
--Excitation Filter B/G/V/U |
Polarizing | EPI Light 3W LED 465~475nm, B Excite Filter BP460~490, Upgrade to
A16.1029 | A5F.1004-B |
EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 | A5F.1004-G |

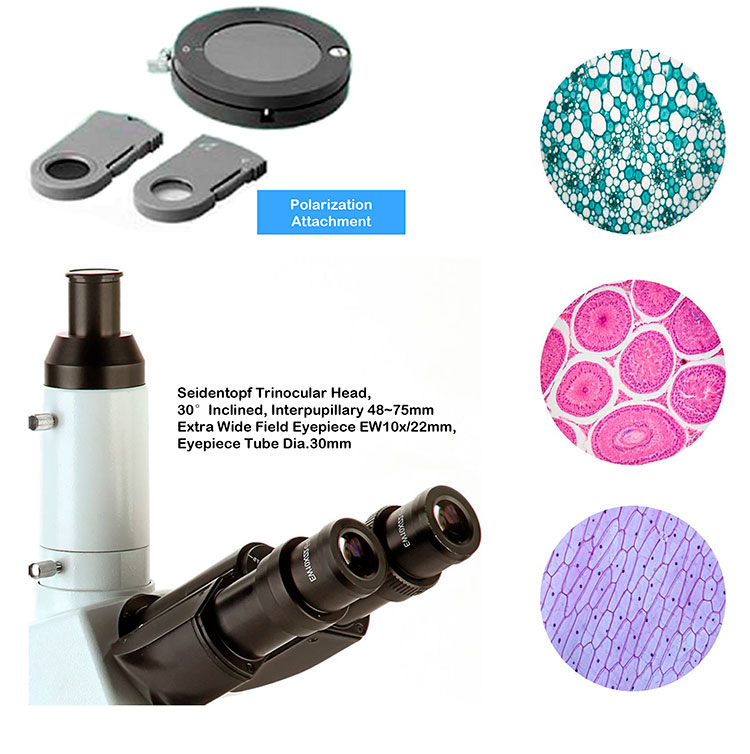

Polarizing Attachment , Polarizer, Analyzer, Intergrate Device | A5P.1002 |
