Heavy Duty Launch X431 Scanner Environmental Creader CR-HD Code Scanner For Reading Data Streams

Heavy Duty Launch X431 Scanner Environmental Creader CR-HD Code Scanner For Reading Data Streams

It can be updated online. Original!!

Launch Creader CR-HD heavy duty code scanner Description:

CR-HD is the first heavy truck code reader which Launch latest developed. It has integrated the basic diagnostic functions of two heavy duty truck standard protocols (J1939 and J1708), applied 2.8" color LCD with beautiful interface, and equipped with 6PIN and 9PIN additional diagnostic connectors, which can provide highest quality, most efficient, and most professional diagnostic service for heavy duty trucks. From now on, the heavy duty trucks also have their own small-scale diagnostic tool.

Launch Creader CR-HD heavy duty code scanner Functions:

1. Read fault code
2. Clear fault code
3. Read data streams
4. Support multiple ECUs
5. Support 6PIN, 9PIN, and 16PIN diagnostic connectors
6. Support J1939, and J1708 vehicle communication protocols
7. With multi-languages function (English, and French, Spanish, etc.)
8. With online software upgrade function (USB2.0)

Launch Creader CR-HD heavy duty code scanner Product parameters:

-Screen: 2.8", 262K true color, 320*240 LCD
-Input voltage range: 8~36V
-Operating current: typically <100mA
-Typical power consumption: <1.2W
-Wire connection: 6PIN, 9PIN, 16PIN diagnostic connector
-Environmental temperature: 0°C~50°C
-Storage temperature and humidity: -20°C~70°C@ RH 60%
-External dimension: L*W*H=121*82*26mm
-Single unit: <500g

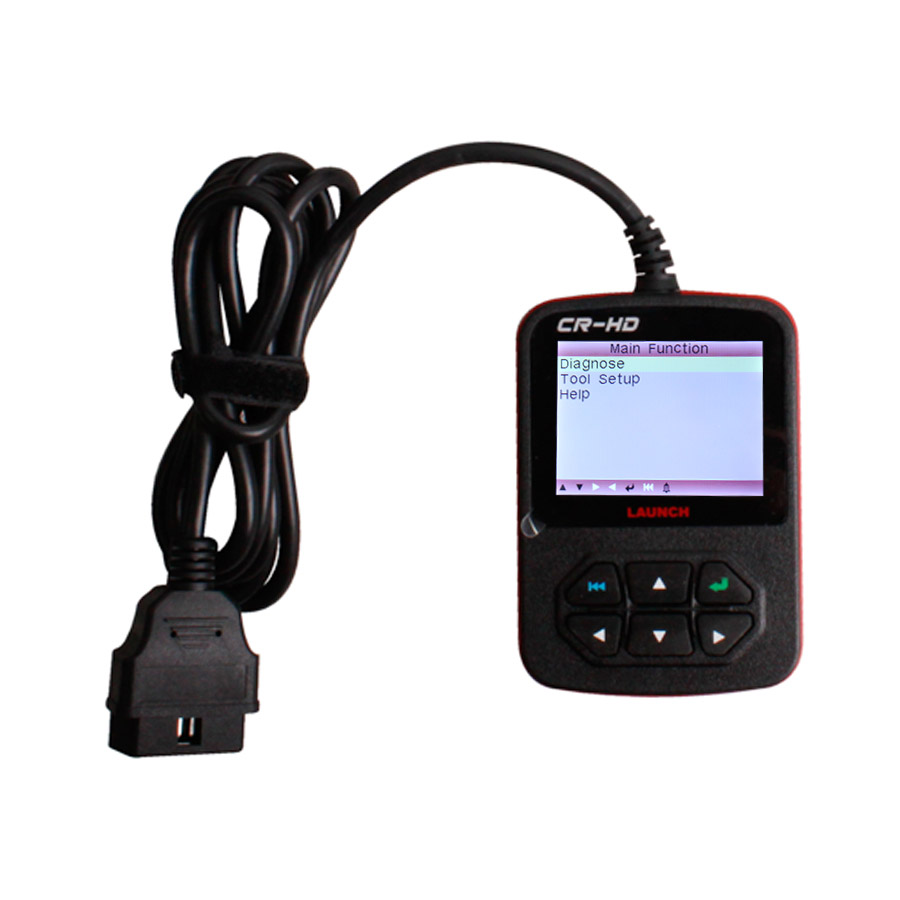

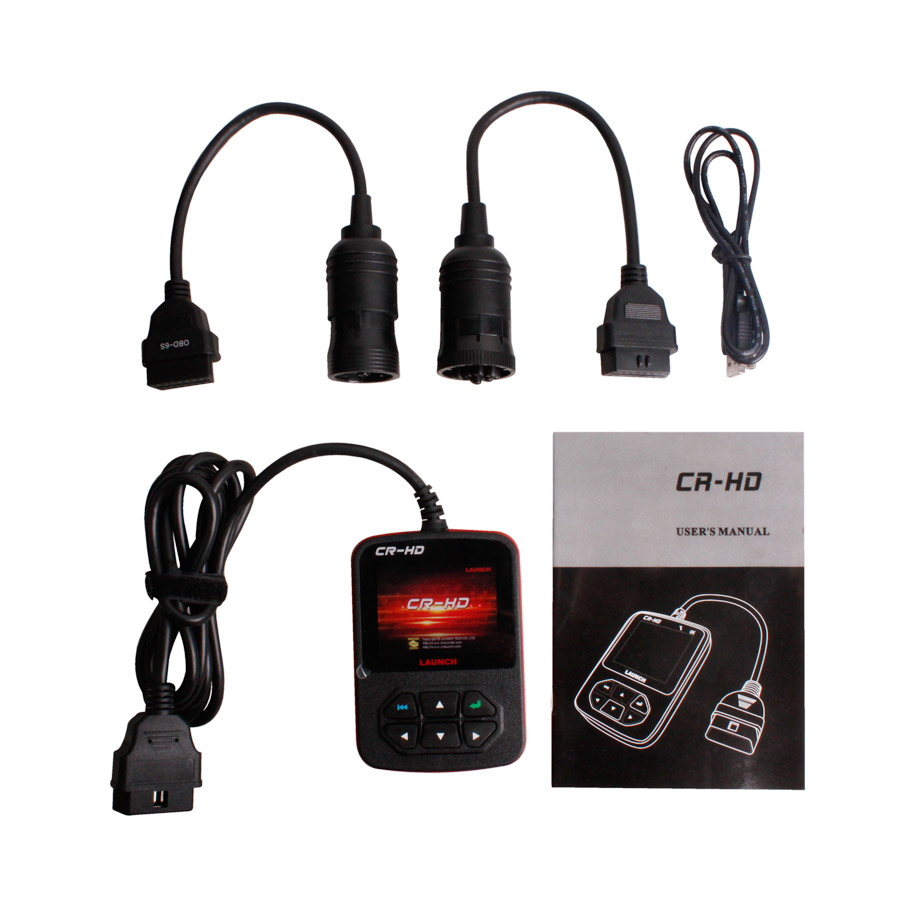

Launch Creader CR-HD heavy duty code scanner pictures:
